SECTION 1: Know Your Log Splitter

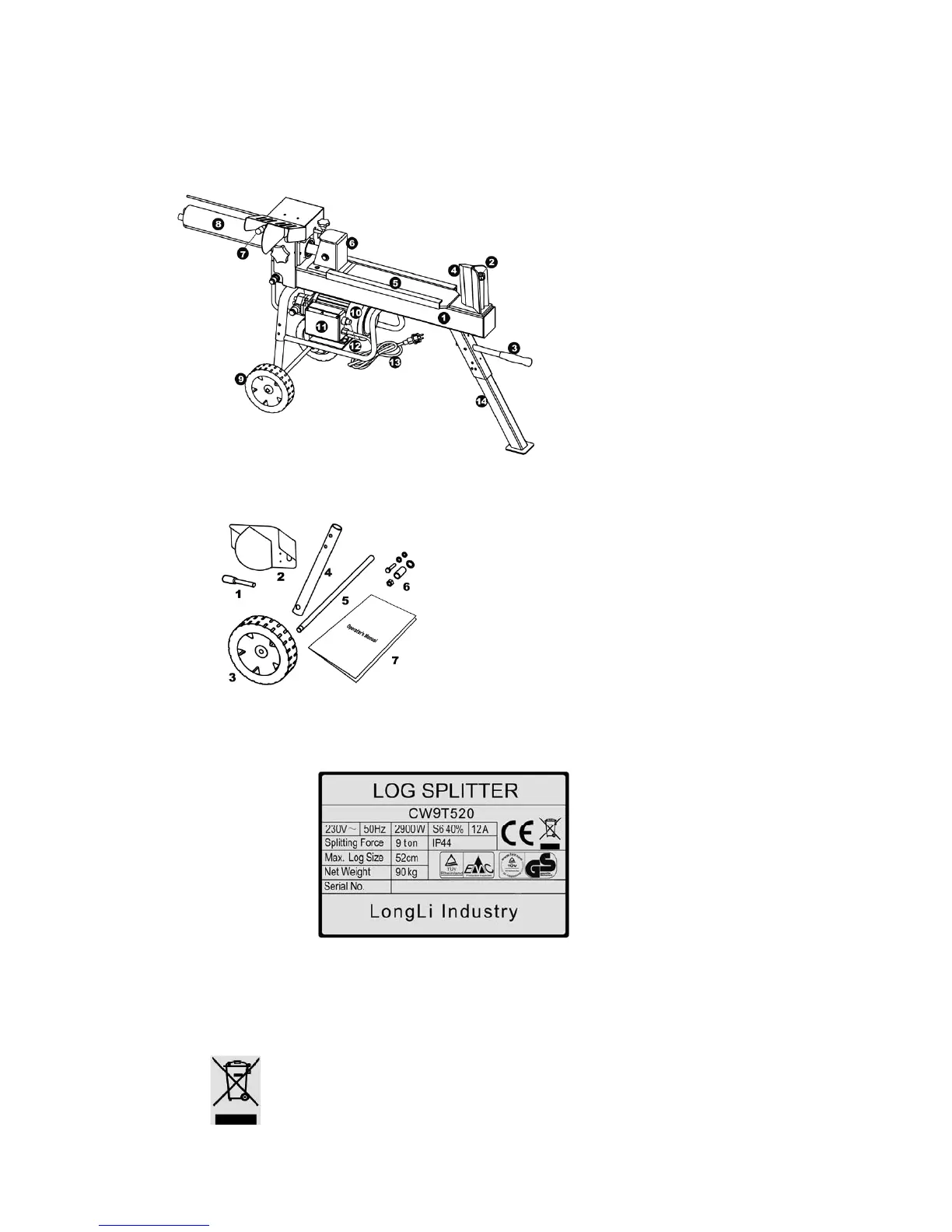

1. Machine overview

1. Hydraulic tank

2. Oil dipstick with vent cap

3. Towing handle

4. Wedge

5. Guiding plate

6. Ram

7. Control handle

8. Cylinder

9. Wheel

10. Electric motor

11. Connecting box

12. Switch

13. Power cable and plug

14. Front frame

2. Accessories

1. Control handle bar×2

2. Safe guard×1

3. Wheel×2

4. Wheel frame×2

5. Wheel axis×1

6. Screws, washers & nuts

7. Operator’s manual×1

3. Decals on machine

Locate model plate and safety label on the equipment. Read and follow the instructions in them.

Model plate (CW9T520)

Note: S6 %40, continuous operation periodic duty: time of one load cycle is 10 minutes,

operation time at constant load is 4 minutes, operation time at no-load is 6 minutes.

WEEE label

1) The left figure means: Do not abandon the waste product freely; the product

should be sent to relevant recycle organization.

2) Dispose of the packing in the proper manner. Should you wish to part with

the product, dispose it in accordance with the latest provision. Regarding

the detail information, please refer to us.
