SECTION 2: Safe Operating Instructions
NOTE: This machine is only intended for homeowners to split firewood as detailed in instructions, not for any other
purpose.
Danger This machine was built to be operated according to the safety instructions in this manual. As with any type
of power equipment, carelessness or error on the part of operator could endanger the personal safety and/or property
of yourself and others. It can result in serious injury or death, such as amputating hands or feet, throwing objects and
other unforeseeable damage. Read and follow all instructions before initial operation. The manufacturer isn’t liable for
any damages by disregard of the instructions.
1. Assembling your log splitter
 Cut and remove straps bound to the carton and
unpack the carton.
 Remove the loose parts included with unit (i.e.,
operator’s manual, accessories, etc.).
 Set the foams aside.
 Put the machine on a sturdy level surface and assemble the long
frames by two persons.

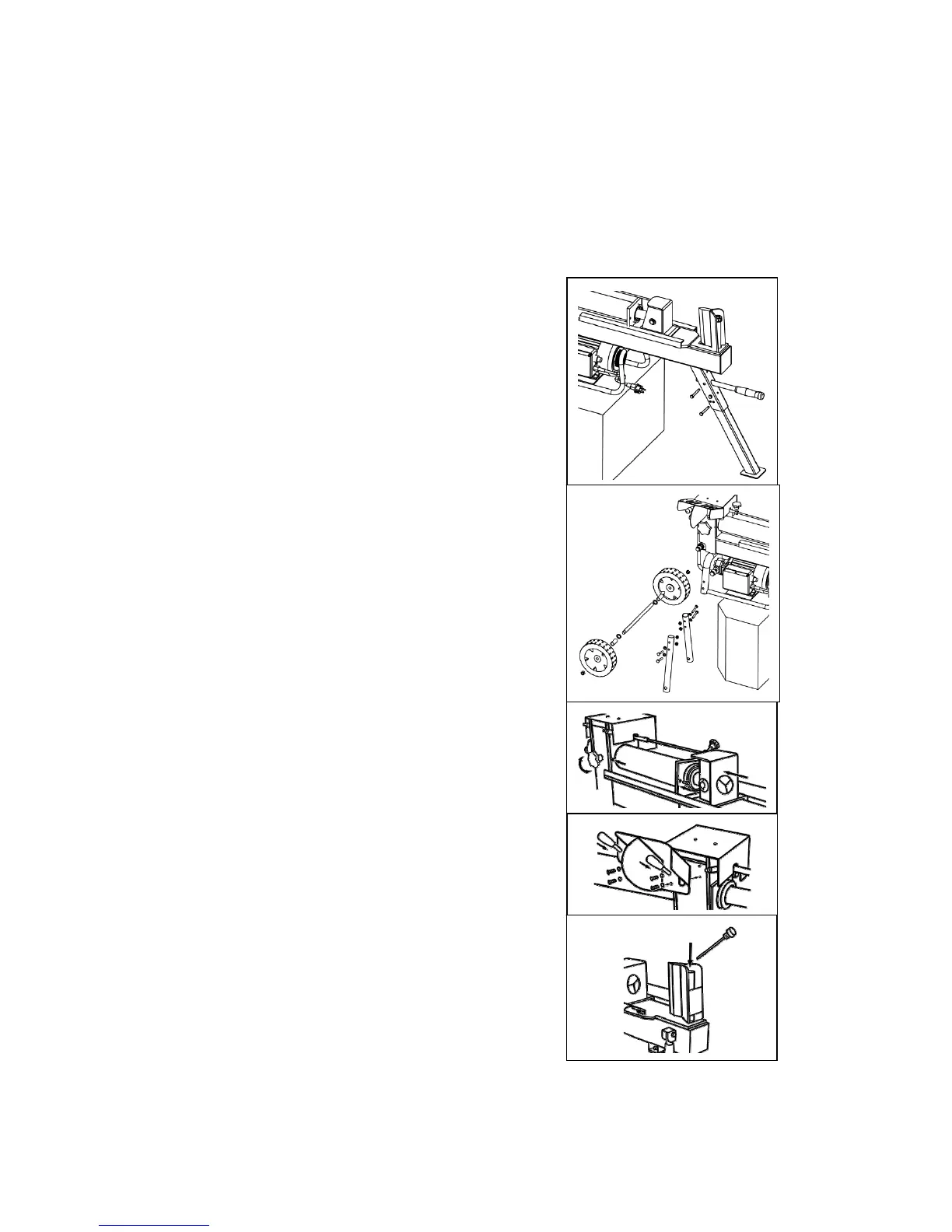

1) Put on the machine on a sturdy level surface, pull out the
towing handle and long front frame, fix them tightly.
(Fig. 1)
2) One person takes care of the machine to avoid falling down
during another person assemble the frames.
3) Screw on the two long wheel frames, and assemble the
wheel axis. Then fix the two wheels. (Fig. 2)
4) Move the machine down by two persons.
 Fix the cylinder.
1) Release the band to the hydraulic hoses.
2) Loosen the cylinder fixing knob, push the cylinder
backward. (Fig. 3)
3) Screw on the two inner hex screws. (Fig. 3)
4) Tighten the cylinder fixing knob again
 Connect the safe guard and the control handle bars (Fig.4)
 Fill the tank with universal hydraulic oil (32W AW
hydraulic fluid). (Fig. 5)
7
1) Disconnect the dipstick.
2) Fill the tank at least the range marked on the dipstick.
If the tank permits, more oil added will do good to the
hydraulic system for better operation
3) After filling, insert the dipstick and tighten.
4) Operate the unit fully extended for several times to repel
out the air in the tank.
Fig. 3
Fig. 5
Fig. 1
Fig. 2
Fig. 4
