Parkray DERWENT - Page 9

9

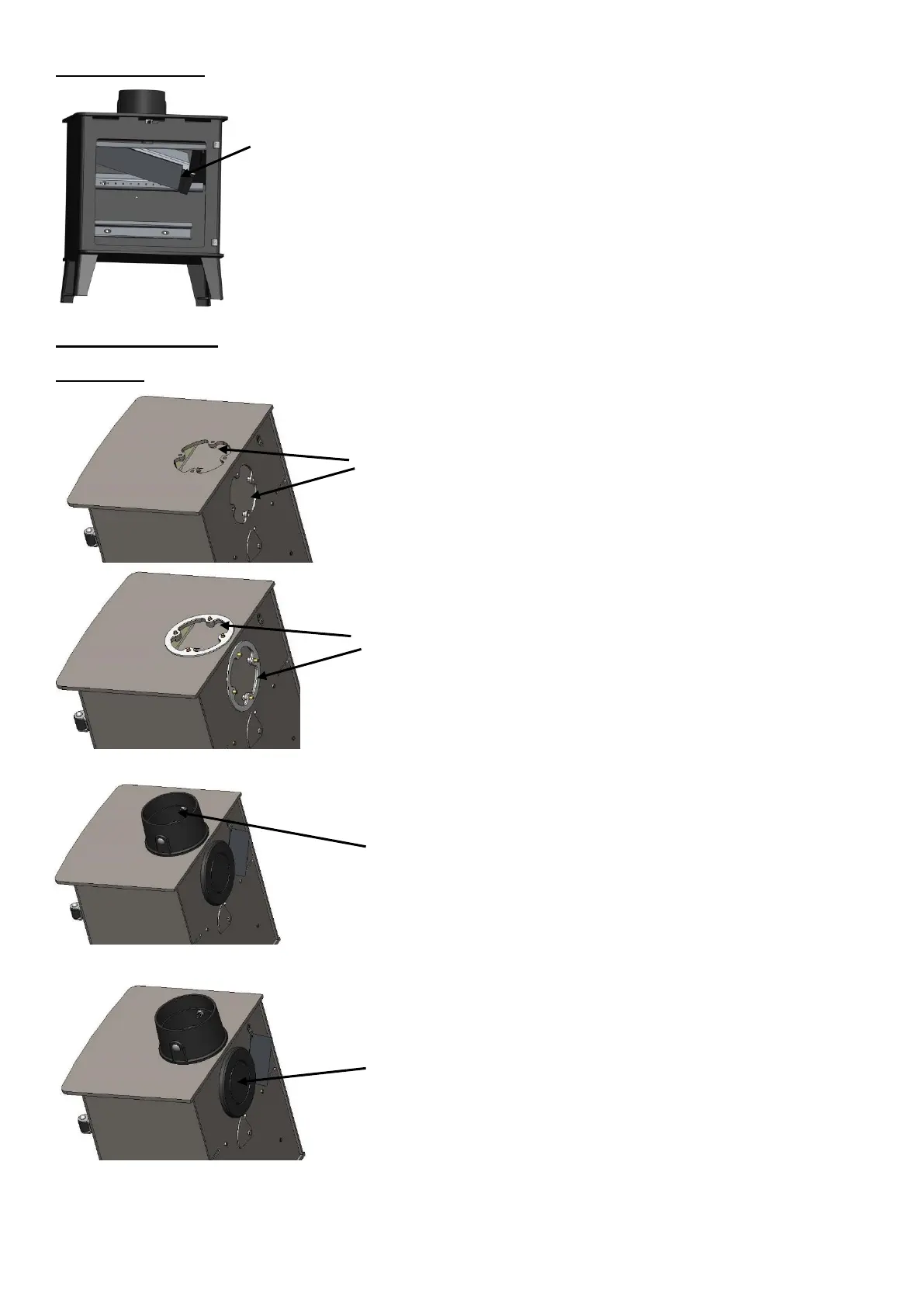

Baffle/Throat Plate
Stove Assembly
Flue Collar
Blanking Plate
Lift the Baffle and slide to
the left. When the right
side of the Baffle clears the
Baffle Support, lower the
Baffle into the Fire Box and
remove.
Place the bolts downwards through the fixing holes (head side
upwards). Then tighten by using supplied nuts from inside stove.
Place the gasket on the outlet and put blanking plate on top of this.
Screw the bolts from the inside of the stove into the blanking plate.
Place the flue collar gasket on the outlet to be used.
Top or rear outlet
