Removing Internal Components
All internal components must be removed prior to fitting the stove. This will make handling the stove easier; allow
access to fixings and the flue outlet; as well as protect the internal components from damage during the installation
process.

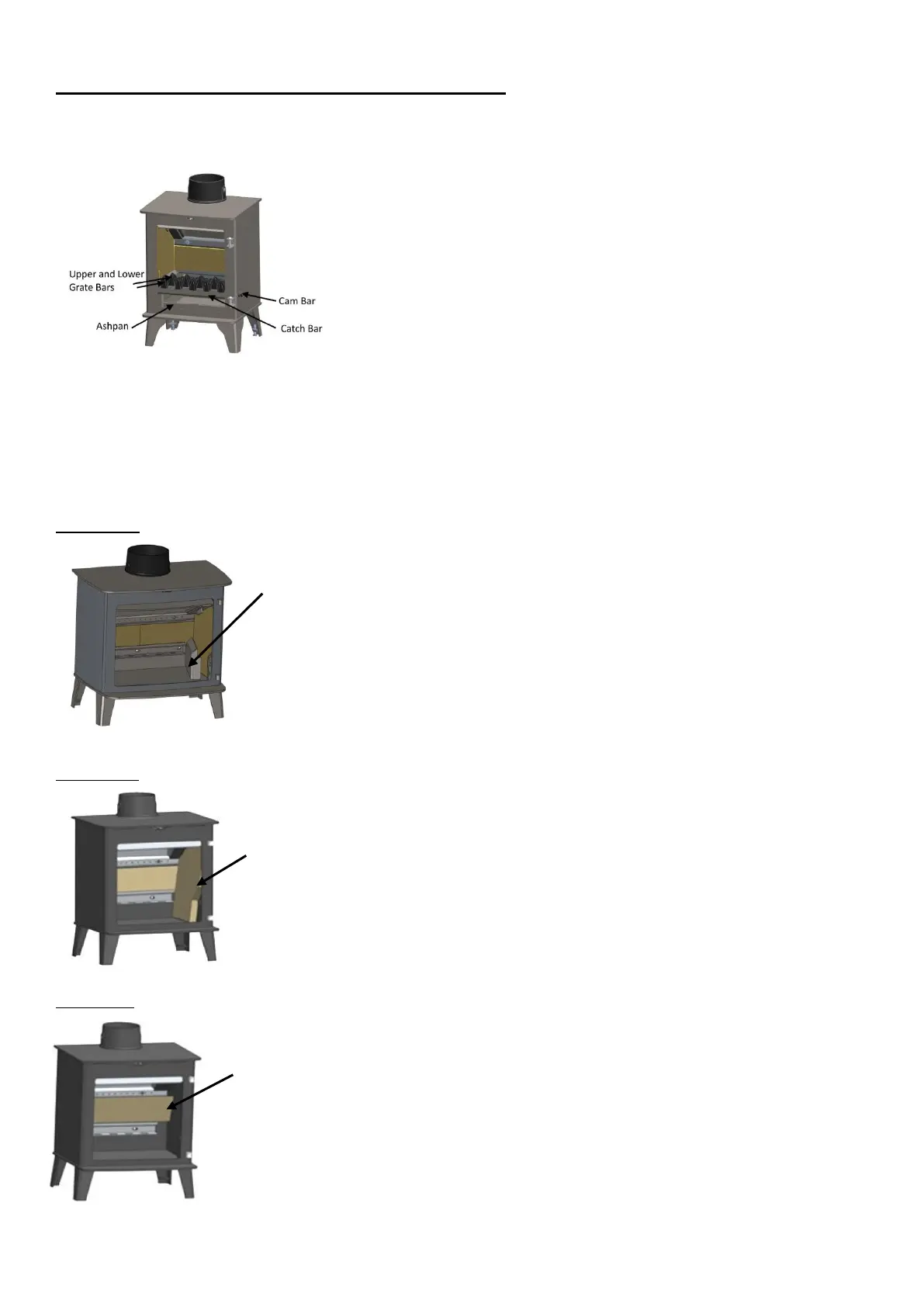

1. Open the door and remove the ashpan.
2. Remove the grate bars by lifting the front up off the cam bar and sliding forward off the rear grate support and lift
out of the firebox.
3. Remove the cam bar by lifting the left-hand end of it upwards until it clears the side casting. Pull the left-hand end
towards the front of the stove and then slide all the way out. Take care not to lose the cam hole plate.
4. Remove the catch bar by lifting upwards and pulling forwards out of the stove body.
Side Plates
Side Bricks
Rear Brick
Pull the top edge of the Rear
Brick forward and lift the
brick out of the Stove.
Slide the base of the
Side Brick towards the
centre of the stove and
remove.
Slide out both
Side Plates
