• Direction of rotation switch (7)
NOTICE! Only operate the direction
of rotation switch when the tool has
stopped!
The arrow on the direction switch (7) in-
dicates the working direction.
• Screw in screw, drill
• Centre Switch lock
• Unscrew screw
• Torque adjustment ring (3)
Setting the maximum screwing torque
at which the slip clutch triggers.
NOTICE! Only operate the torque
adjustment ring when the tool has
stopped!
• 1 Lowest torque
• 21 Maximum torque
For safety, start screwing at low
torque. Increase the torque as re-
quired.
• Gear selector switch (6)
NOTICE! Only operate the gear select-
or switch when the tool has stopped.
• 1 Screws
• 2 Drill bits
• On/Off switch (17)
• After inserting the battery: Connect-
ing to the PARKSIDE app
• Switching on: Press
• Infinitely variable speed regula-
tion: The more you press the on/off
switch, the higher the speed.
• Switching off: Release
• “Connected” indicator (16)
Status of the connection with the
PARKSIDE app
flashing connection attempt
continuous light connection estab-
lished
• Function selection switch (5)
Set the function selector switch (5) so
that the arrow mark points to the de-
sired symbol.
NOTICE! Risk of damage! Only oper-
ate the function selector switch when
the tool has stopped.

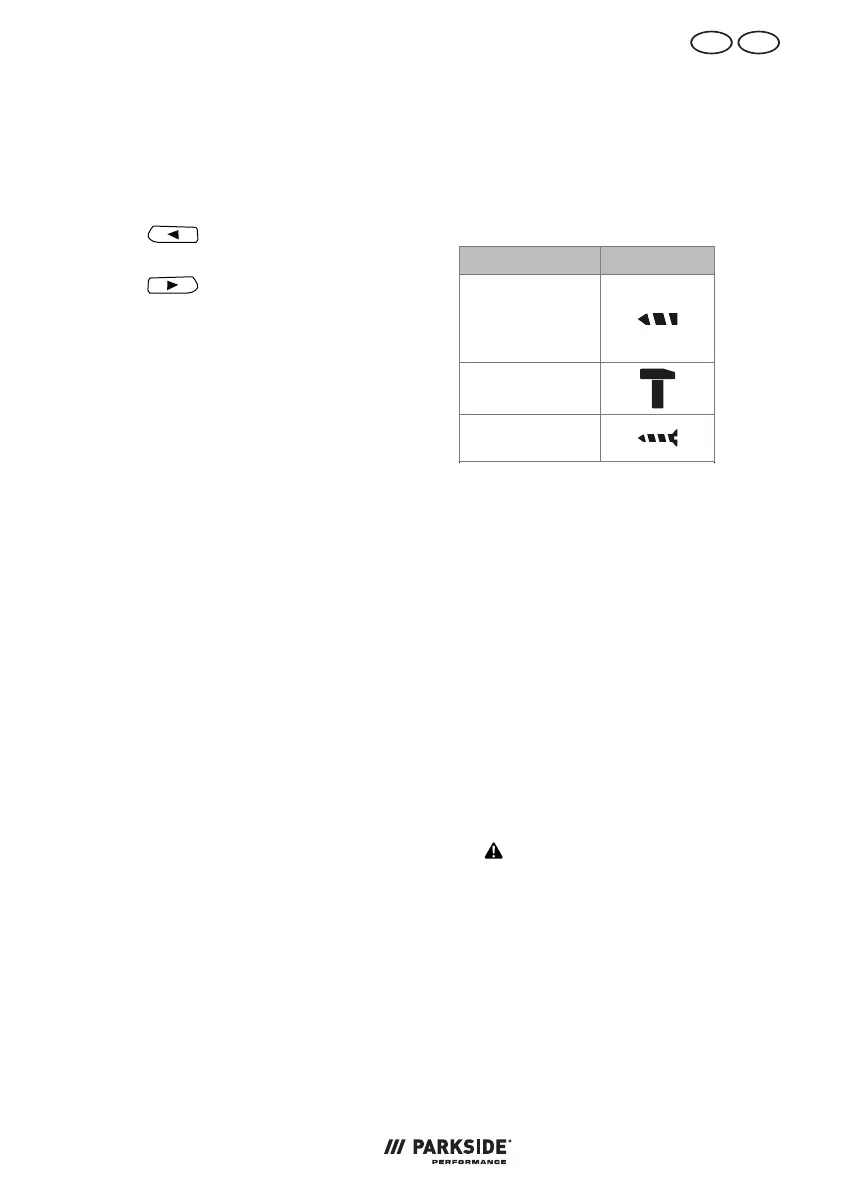

Function Symbol
Drilling (Striking
mechanism OFF/
without speed lim-
itation)
Hammer drilling
(Percussion ON)
Screwing (striking
mechanism OFF)
Attaching and removing the
attachment tool
Notes
• Chuck capacity: ≤13mm
• The direction of rotation is engraved in
the keyless chuck (2).
Attaching the attachment tool
1. Open drill chuck: Turn the keyless
chuck (2) ⭮ .
2. Push the attachment tool as far as pos-
sible into the drill chuck opening (1).
3. Clamp the attachment tool: ⬅GRIP
Removing the attachment tool
1. Open drill chuck: Turn the keyless
chuck (2) ⭮ .
2. CAUTION! Risk of burn injury!
Attachment tools – especially drills –
can become very hot. Wear protective
gloves whenever appropriate.
Remove the attachment tool.
Using a ratchet screwdriver/
screwdriver bit holder
1. Place the desired screwdriver bit (32)
in the ratchet screwdriver (27)/screw-
driver bit holder (28).
