Introduction
Cordless hammer drill
PSBS 24 A1
For drilling and screwing into wood,
plastic and metal

Introduction
Please make sure you familiarise yourself
fully with the way the device works before
you use it for the first time and that you
understand how to handle electrical power tools
correctly. Further details can be found in the oper-
ating instructions. Keep these instructions in a safe
place. If you pass the device on to anyone else, please
ensure that you also pass on all the documentation.

Proper use
This device is intended for drilling and screwing into
wood, plastic and metal as well as for impact drilling
into stone, brick and concrete. When drilling into
granite, we recommend the use of a drill hammer.
Use the device only as described and for the indi-
cated purposes. Any other use or modification to
the device shall be considered as improper use and
could give rise to considerable risk of accident. The
manufacturer will not accept liability for loss or
damage arising from improper use. Not suitable
for commercial use.

Features and equipment
1
Gear selector switch
2
LED display / battery charge state
3
Battery charge state test button
4
Spirit level
5
Direction of rotation switch / lock
6
ON / OFF switch / Speed regulator
7
Bit
8
Battery unlocking button
9
Battery pack
10
Auxiliary handle
11
Quick-release chuck

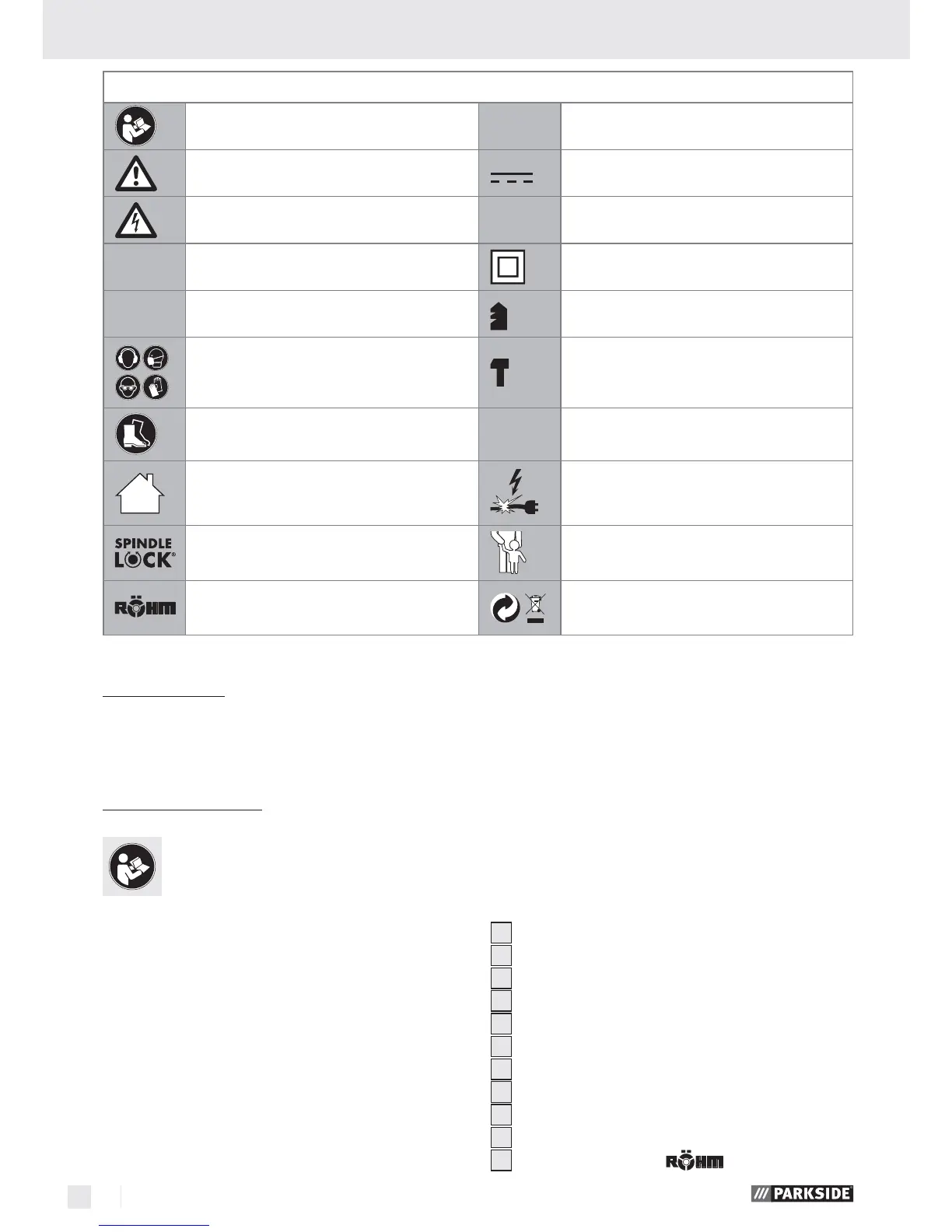

The following pictograms are used in these operating instructions / on the device:
Read instruction manual!
W
Watts (Effective power)
Observe caution and safety notes! DC (current and voltage type)
Caution – electric shock!
Danger to life!
Nm
Newton metre (torque)
n
0
Design no-load speed Safety class II
V
~
Volt (AC) Drill setting (torque preselect)
Wear hearing protection, dust
protection mask, protective glasses
and protective gloves.
Drill setting (impact drilling)
Wear appropriate footwear.
Ah
Amp (Battery capacity)
For indoor use only!
Risk of loss of life by electric shock
from damaged mains lead or mains
plug!
Spindle lock
Keep children away from electrical
power tools!
Drill chuck, Made In Germany
Dispose packaging and appliance in
an environmentally-friendly way!

Parkside PSBS 24 A1 Specifications

General

Brand	Parkside
Model	PSBS 24 A1
Category	Drill
Language	English
