Parr Instrument 4560 User Manual

- 21 -
4560 Mini Bench Top Reactors
Parr Instrument Company
Revision 6-28-02
Overarm Parts List
Part No. Description
Motor
1355EES Motor VS/PM130VDC 1/8 HP
A1554EES Motor VS/PM 130VDC 1/8 HP
with EMC filter
A1393HC Air Motor
A388EEQ Motor ¼ HP EXP VS 90 VDC
A388EER Motor ¼ HP EXP VS 180 VDC
A388EES Motor ¼ HP VS 90 VDC
A388EET Motor ¼ HP VS 180 VDC
Driven Pulley Assembly
A2179HC Driven Pulley Assembly
All part of the A2179HC
839HC Ball Bearing
841HC Snap Ring, External .693”
842HC Snap Ring, 1.804”
858HC2 Pulley, Driven
862HC Support Hub
299HC2 Bushing, PTFE
Upper Drive Shafts
A2223HC Upper Drive Shaft
Part No. Description
Shaft Couplings
2075HC Shaft Coupling .38,
Universal
Release Knobs
845HC2 Release Knob, .38 Shaft
Drive Pulleys
Motor Belt
857HC Pulley 600 RPM 847HC8
857HC3 Pulley 800 RPM 847HC8
857HC4 Pulley 1000 RPM 847HC8
857HC5 Pulley 1700 RPM 847HC4
857HC7 Pulley, Air Motor only
Optional Tach Parts
A1001E2 Tach Sensor Assembly (5.5”L)

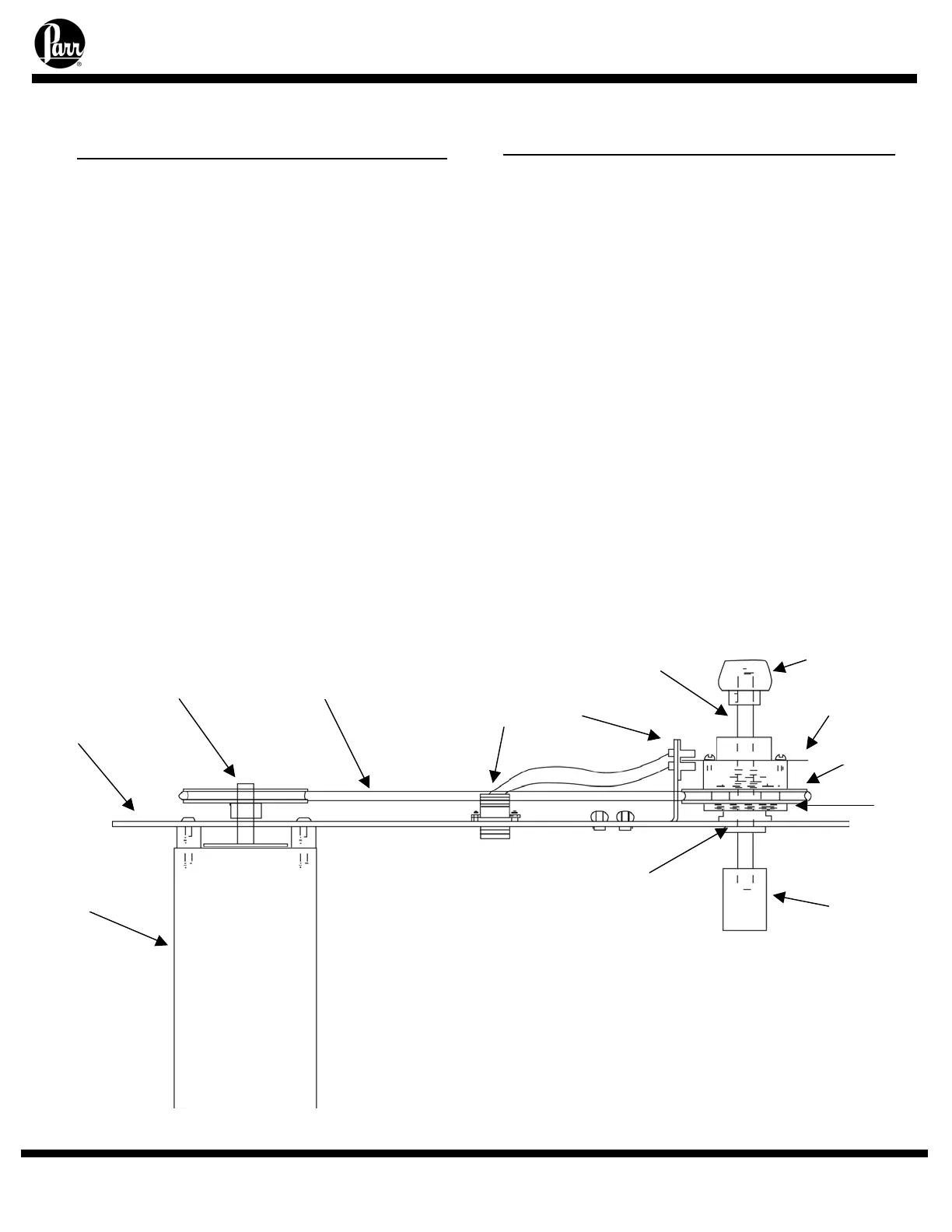

Drive Pulley
Overarm Plate
Motor
Belt
Tach Senso
r
A
ssembl
y
Upper Drive Shaft Release Knob
Optical Wheel
Driven Pulley
Hub
Coupling
Collar
