Parrot ANAFI Assembly/Disassembly Manual

ANAFI assembly and disassembly processes 11

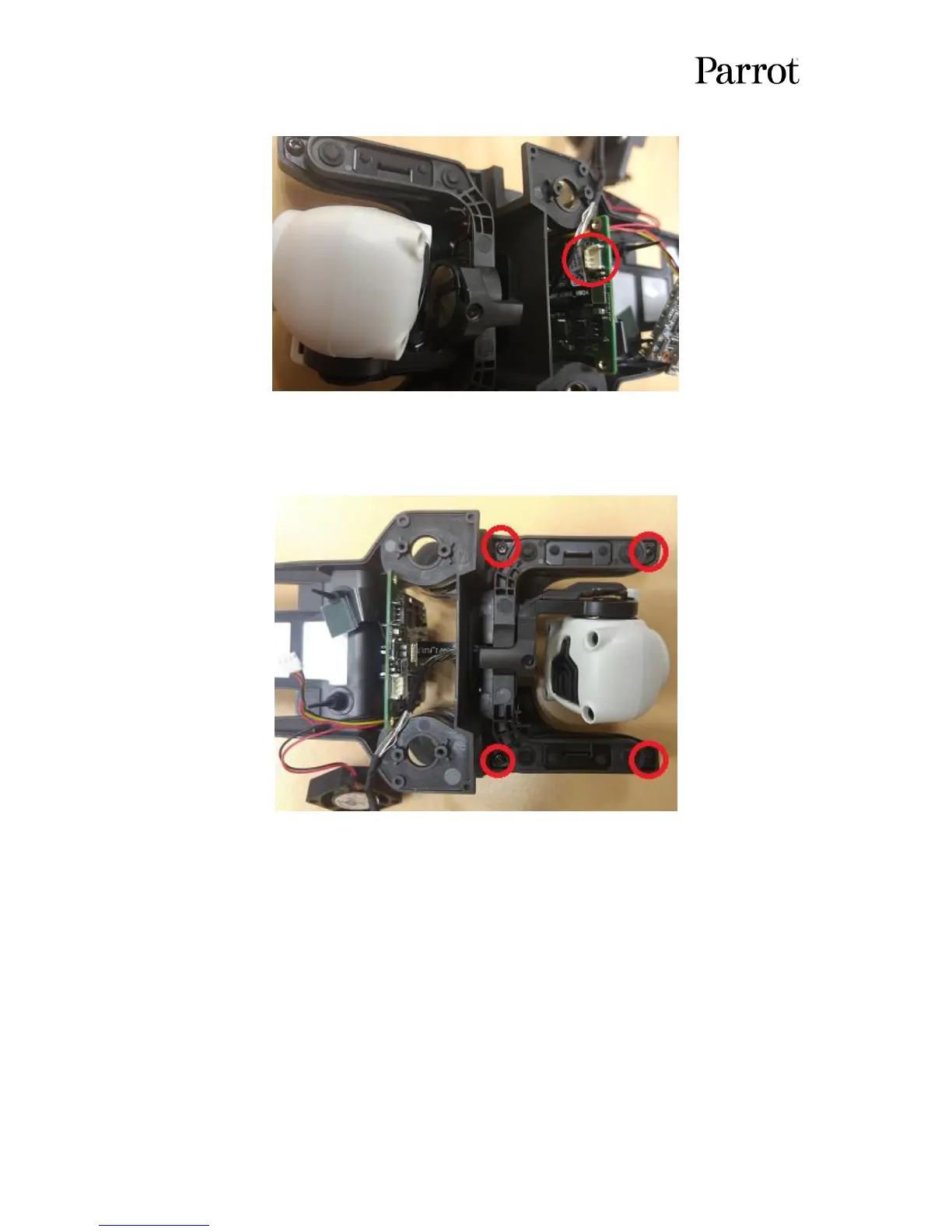

- Unplug the gimbal’s motor wire from the motor card.
It is easier to remove the Gimbal before removing the motor card
- Remove the four screws on the lower side of the Gimbal
- There is a rubber part with holes letting wires go through to connect it from the gimbal to
the motor card: the small hole is dedicated to the flex wire; the larger one is meant to
receive the micro coaxial wire.
- Remove the gimbal from the body.

Parrot ANAFI Specifications

General

Type	Quadcopter
Product color	Black
Housing material	Carbon
Maximum speed	55 m/s
Frequency band	2.4, 5 GHz
Number of rotors	4 rotors
Maximum weight capacity	- kg
Maximum operating distance	4000 m
Built-in processor	-
Memory card slot(s)	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Megapixel	21 MP
Sensor type	CMOS
Video resolutions	3840 x 2160 pixels
Maximum frame rate	60 fps
Optical sensor size	1/2.4 \
Camera shutter speed	1 - 1/10000 s
Image formats supported	DNG, JPEG
Video formats supported	MP4
Field of view (FOV) angle	84 °
Bitrate at maximum video resolution	100 Mbit/s
Charging time	105 min
Operating time	25 min
Battery voltage	7.6 V
Battery capacity	2700 mAh
Operating temperature (T-T)	-10 - 40 °C

Weight and Dimensions

Weight	320 g
