POLO V

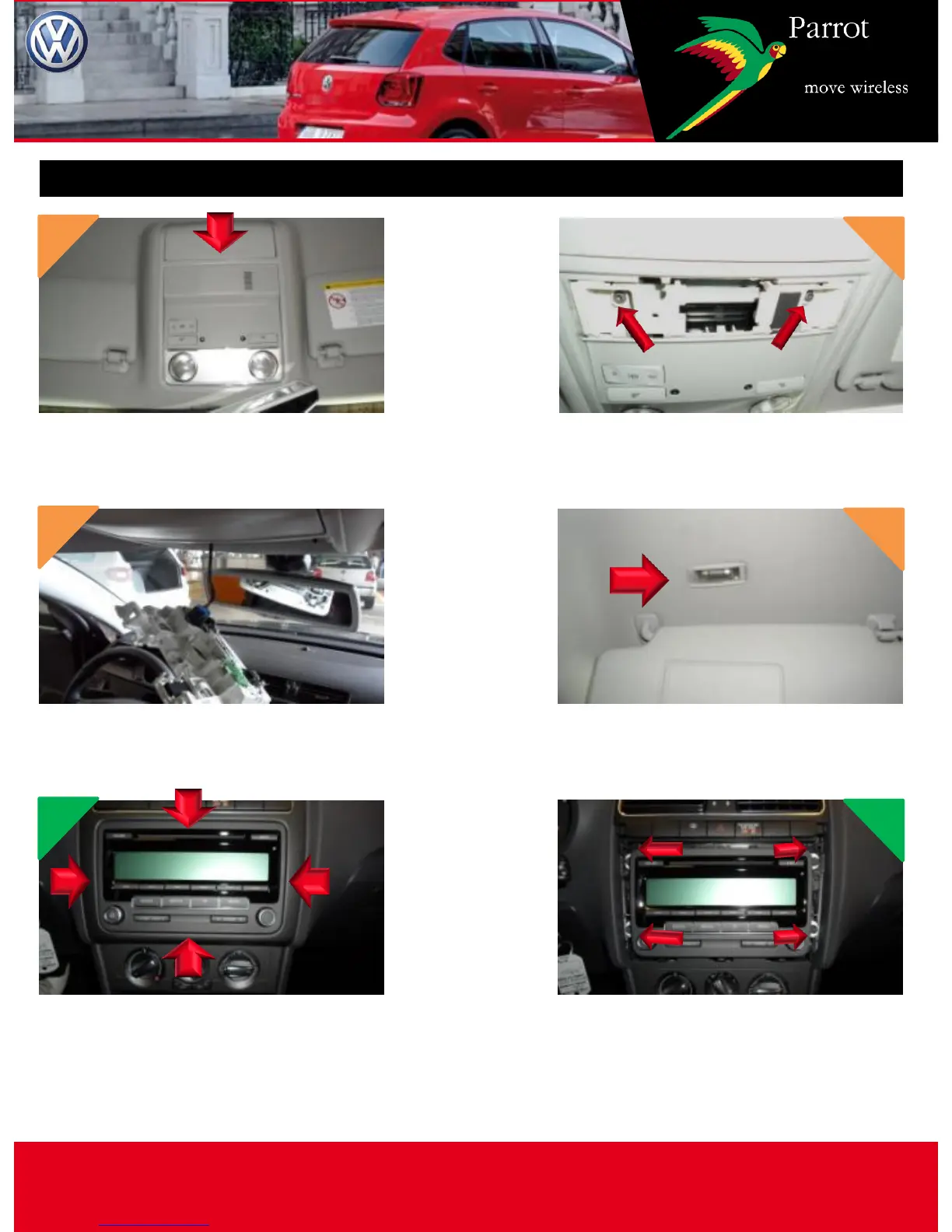

Disassembly 1 / 2
Release the panel by inserting the
plastic trim tools underneath.
Remove screws 1 and 2.
Unclip the cabin light and
disconnect it.
Using the plastic trim tools,
unclip the courtesy light from the
left-hand side.
5 6
Using the plastic trim tools,
unclip the car stereo and air
conditioning surround. Unplug
the airbag indicator connector.
Remove screws 3, 4, 5 and 6
around the radio. Disconnect the
connector and the aerial cables.
1 2
3
4
4
5
1
3
2
4
