3. Connect the columned nut and shift rod cam assy. Change shift, and check if the operation is
normal. Adjust the columned nut position if necessary. Tighten the nut thoroughly.
4. Add gear oil using the pressure filling device.

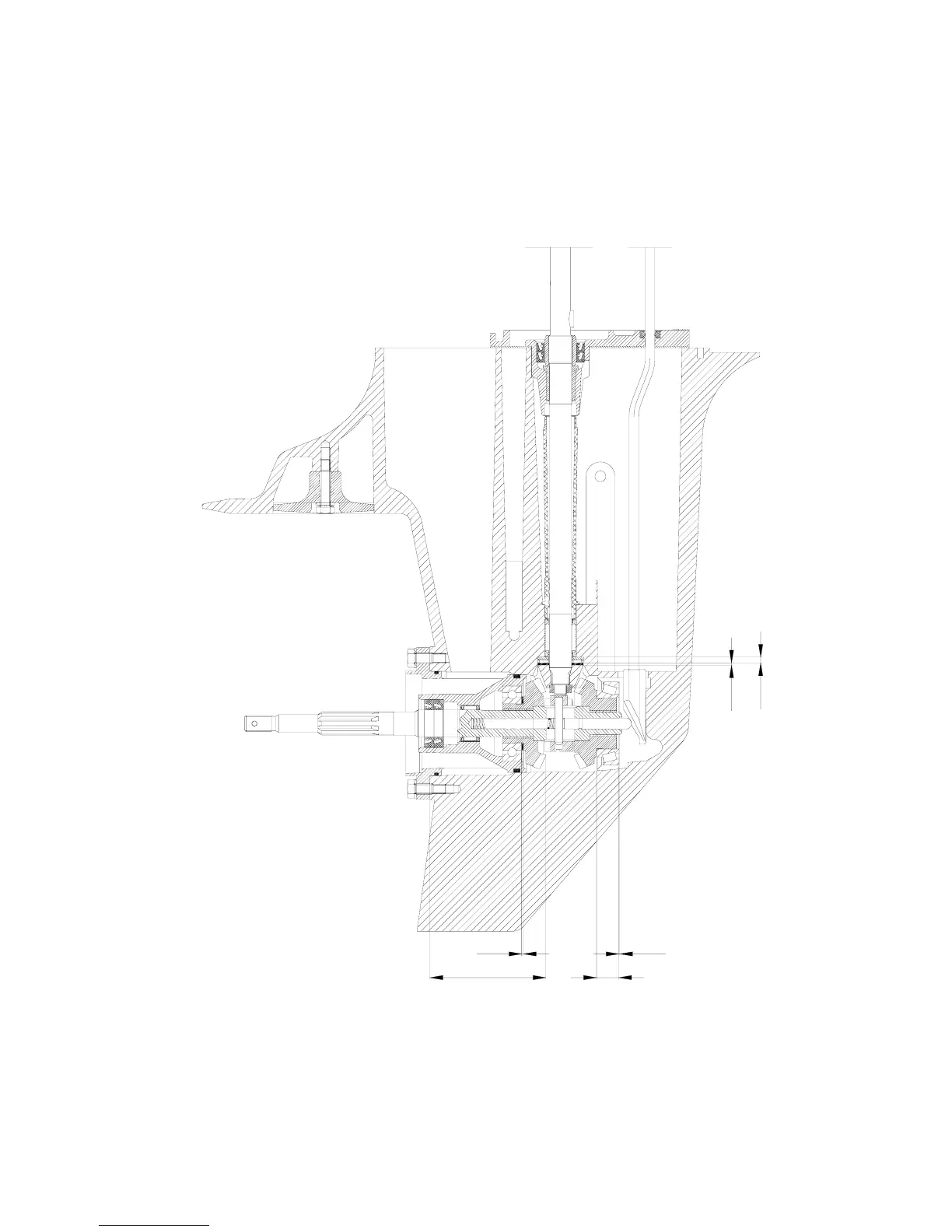

Shim selection
T1
M1 M2
T2
M3
T3
T1、T2、T3: Shim thickness
M1: Reverse gear thickness; M2: Forward gear thickness; M3: Thrust rolling needle bearing with flat
seat thickness
Calculate formula: T1=80.57-M1
T2=16.60-M2
T3=6.05-M1
98
