DS 350 G Boom Control Troubleshooting- TMS/TTS870 / RT865 BXL
031-300-190-039 Rev. B 4/30/99
14
1. Place tie wrap, 120 degree apart around the bushing. Wrap cable (8-10) revolutions over the tie wraps
starting from the outside and working inward. Allow ample cable to reach the junction box. Secure with (2)
additional tie wraps. See page 17.
2. Check proximity switch installation (0.44 inch from target) when boom sections are fully retracted.
3. This target is only installed if the boom is equipped with a boom extension stop block.
4. Check this proximity switch installation (0.13 inch from target) when boom sections are fully retracted.
This proximity switch
is used to sense the
inner mid section fully
retracted.
This proximity
switch is used to
reset the inner mid
percentage.
This proximity
switch is used to
sense the center
mid section fully
retracted.
3.94”
0.44”
0.44”
0.44”

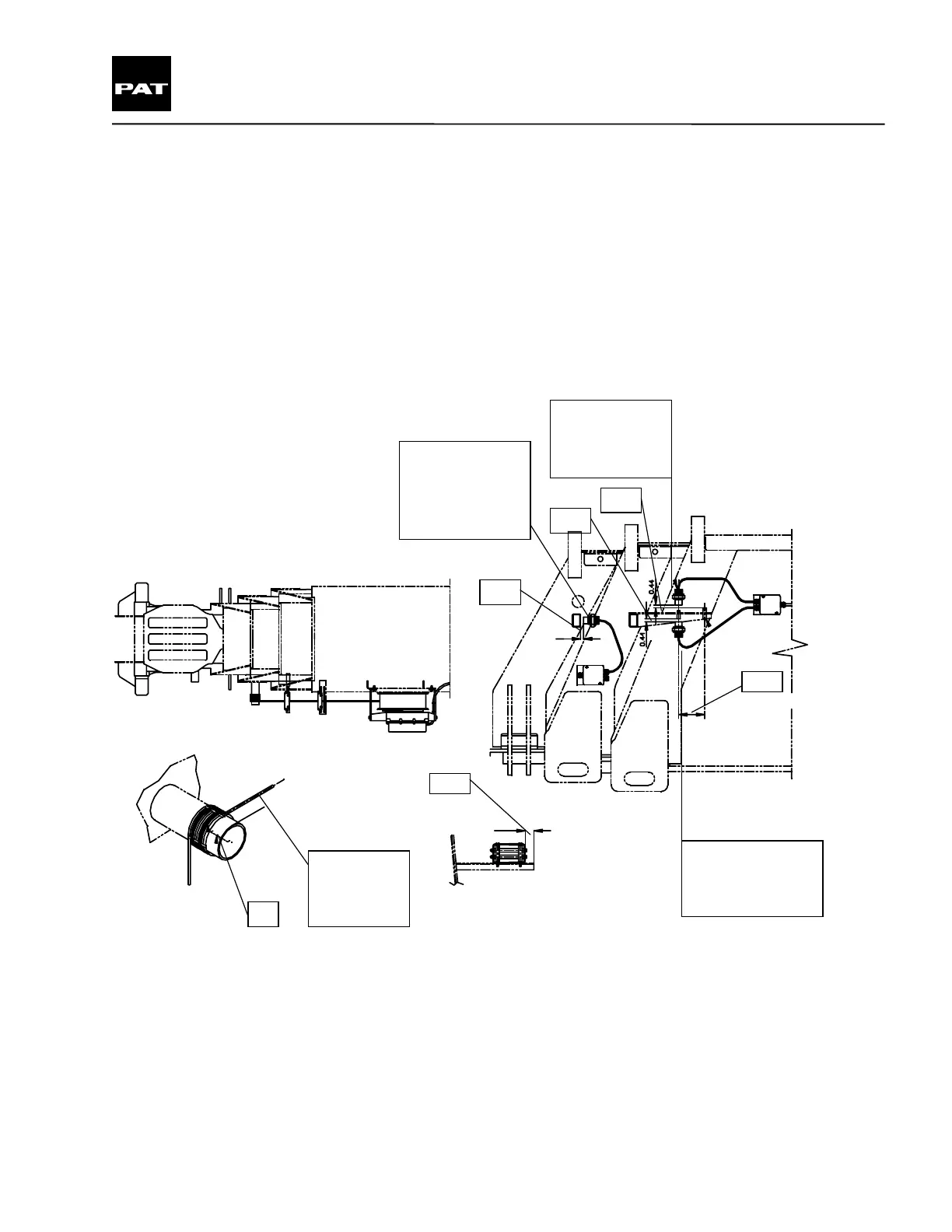

Partial top view
To be aligned
with center line
of cable reel
drum.
6
1.34”
Drawing 5.
PAT Equipment Corporation reserves proprietary rights to this drawing and to the data shown there on. The drawing and data are
confidential and are not to be used or reproduced without the written consent of PAT Equipment Corporation. This drawing is subject to
technical modification without prior notice.
