DS 350 G Boom Control Troubleshooting- TMS/TTS870 / RT865 BXL
031-300-190-039 Rev. B 4/30/99
43

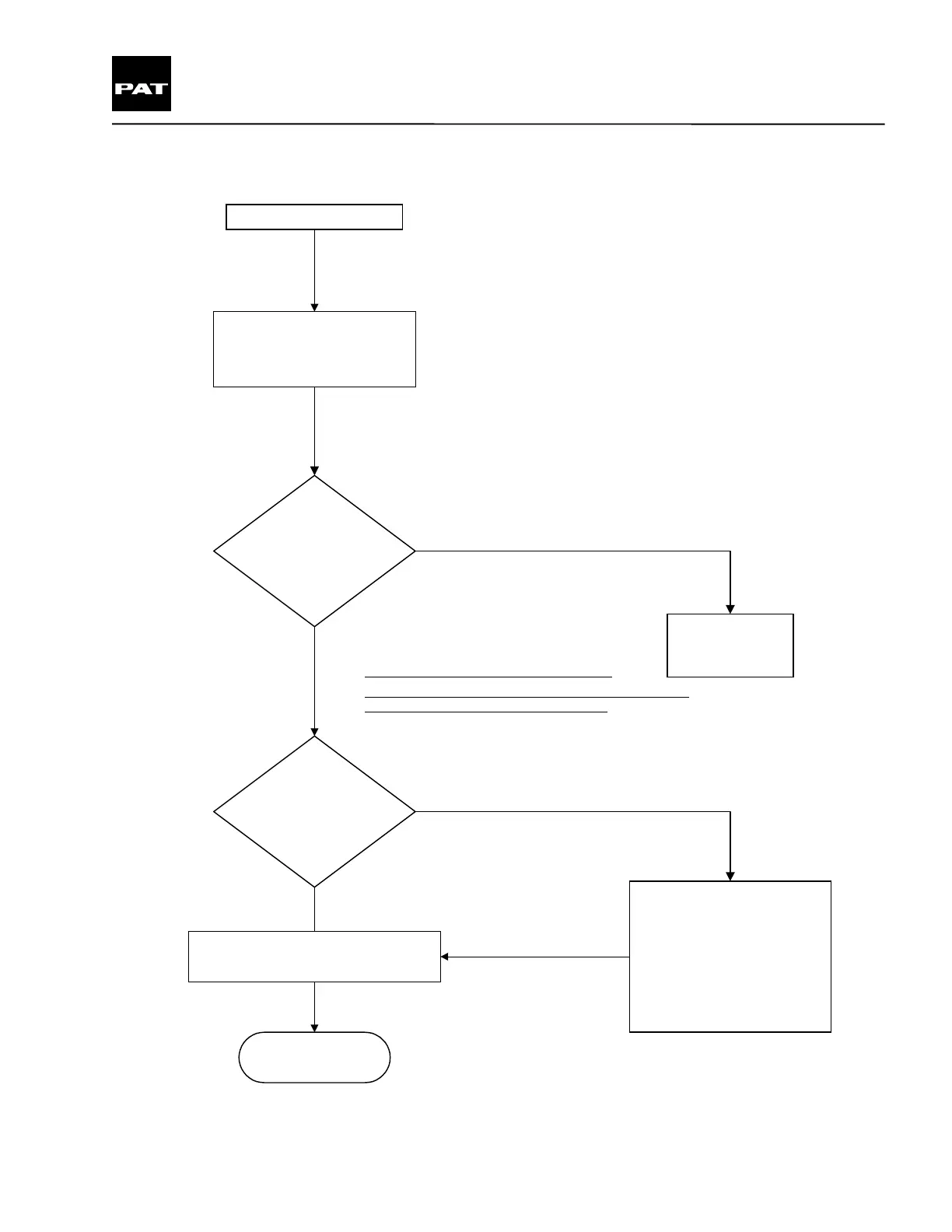

14. Inner Mid Length Error
Is the
inner mid boom length
indicated correctly?
Inner mid length error
Yes
Is the
length cable
spooled properly on
the LG 221
drum?
No
With all sections completely
retracted, un-spool the length
cable carefully. Let the drum
rewind slowly and spool the
cable manually back on the
drum. Check the roller guides
for correct adjustment. Refer to
section 9.1
No
In manual mode retract all
boom sections. Pull the boom
stop and retract the inner mid
section completely.
CAUTION: High tension on cable reel drum!
CAUTION: To avoid length potentiometer damage, do not
turn the length potentiometer past the stop.
Continue
with
B
on page 46
Continue on next page
Reset the length potentiometer.
Refer to page 18 for instructions.
Yes
To Next Page
