2200TRS Deck drain System
The deck drain system is equipped with 1 1/2” thru hull fittings through the transom.
These fittings have to be installed lower than the drains in the cockpit floor so that
gravity will allow the cockpit to drain free of water. This puts these fittings very close to
the water line of the hull. These drains are rigged with ball valves that can be opened
and closed to control the flow of water. The ball valves can be accessed in the bilge,
through the bilge access hatch. In the open position, these ball valves will allow water to
flow freely from the cockpit, thus making the boat “self-bailing”. When closed, no water
will be allowed to travel to or from the cockpit.
2200TRS Livewell Pump Assembly

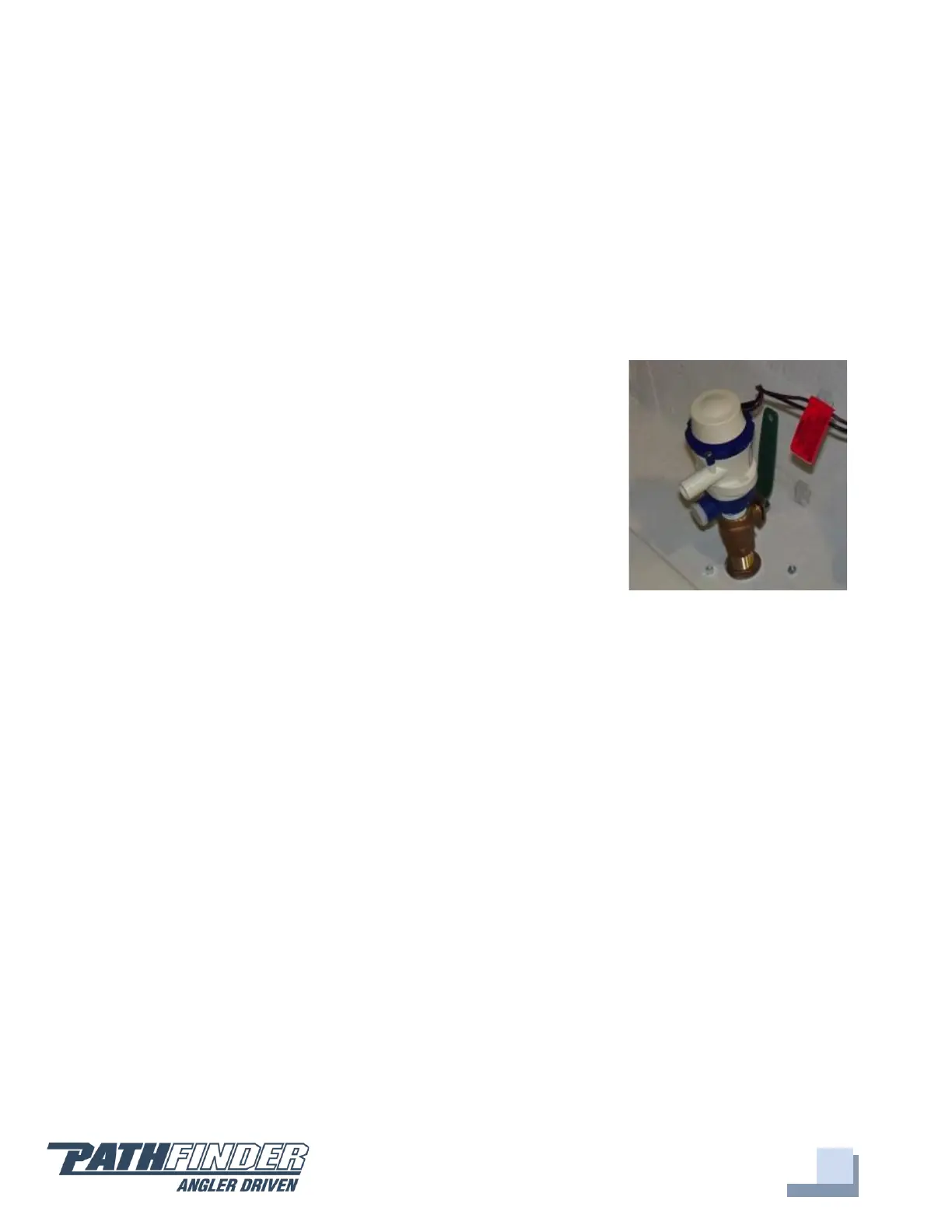

The livewell pump assembly is composed of a strainer
mounted to the bottom of the hull, a thru hull fitting, ball
valve assembly, and the pump. As you can see, the ball valve
assembly is in the “OPEN” position. This is the correct
position for the operation of the livewell.
Trolling Motor Wiring
Trolling Motor/Wiring System
Your Pathfinder 2200TRS comes standard with a 24V trolling motor wiring system. The
trolling motor battery bank and breaker panel are located inside the console. A trolling
motor mounting plate was built into the bow of your Pathfinder during the
manufacturing process. To attach a trolling motor, please go to your nearest Pathfinder
dealer. All trolling motors should be attached by drilling through the mounting plate
with a 13/64” drill bit and 1/4” tap and using 1/4” #20 machine screws. The plate is
designed to accommodate the mounting patterns of all trolling motor brands on the
market currently. See page 30 for optional trolling motor system with battery charger
and wire routing.
To Next Page
