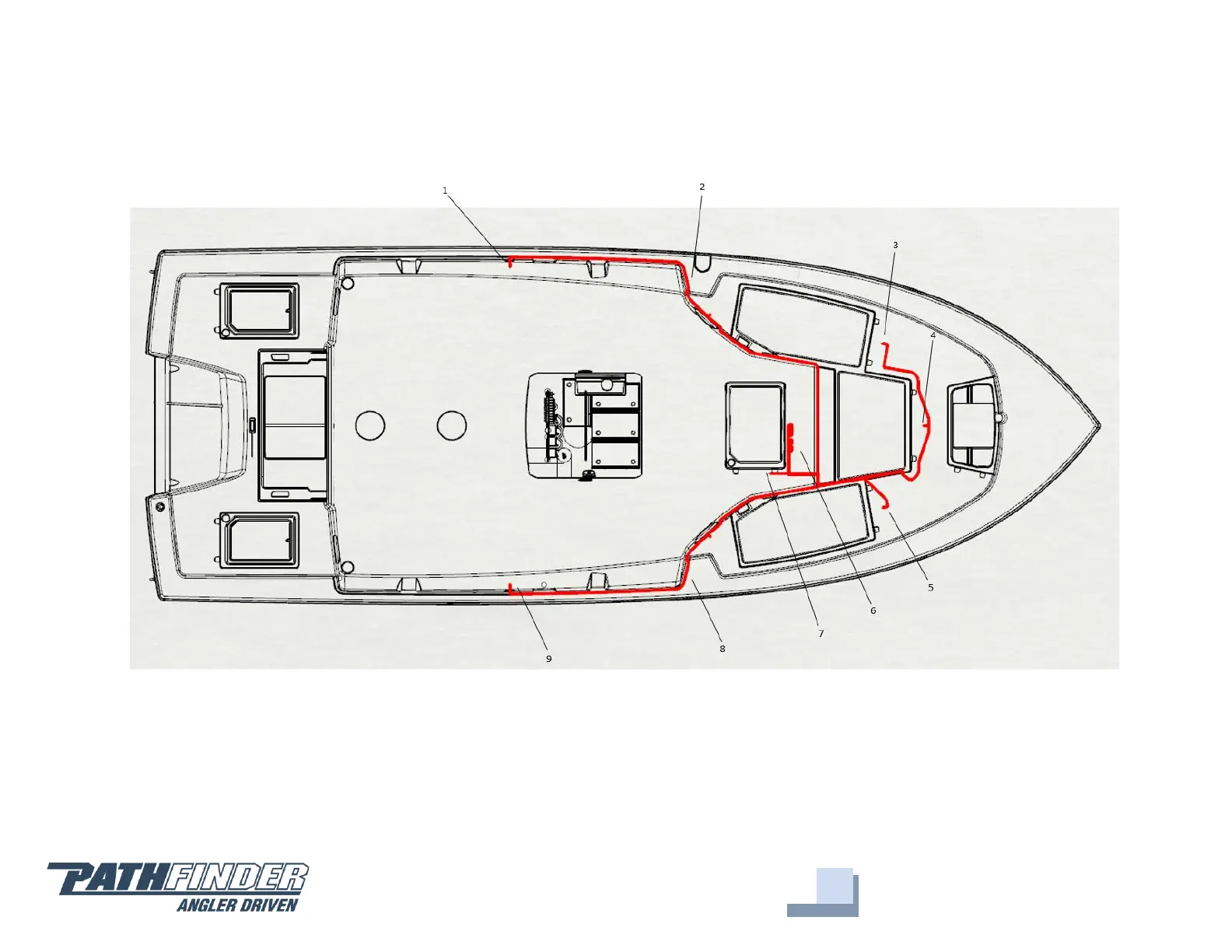

Pathfinder 2200 TRS Deck Wiring Schematic
1. Port under gunnel light 8. Starboard forward speaker
2. Port forward speaker 9. Starboard under gunnel light
3. Port forward compartment light
4. Center forward compartment light
5. Starboard forward compartment light
6. Hull to deck connection
7. Forward bilge compartment light
