Flanged nut (3 pcs.)
(Accessory of Signal Tower)
Screw-tapped spacer
(3 pcs.)
NPT Bracket
(SZP-090U)
NPT Bracket
(SZP-091U)
Pole
1/2’’NPT
Installation using materials other than the specified
accessories is not covered under warranty.
Notice

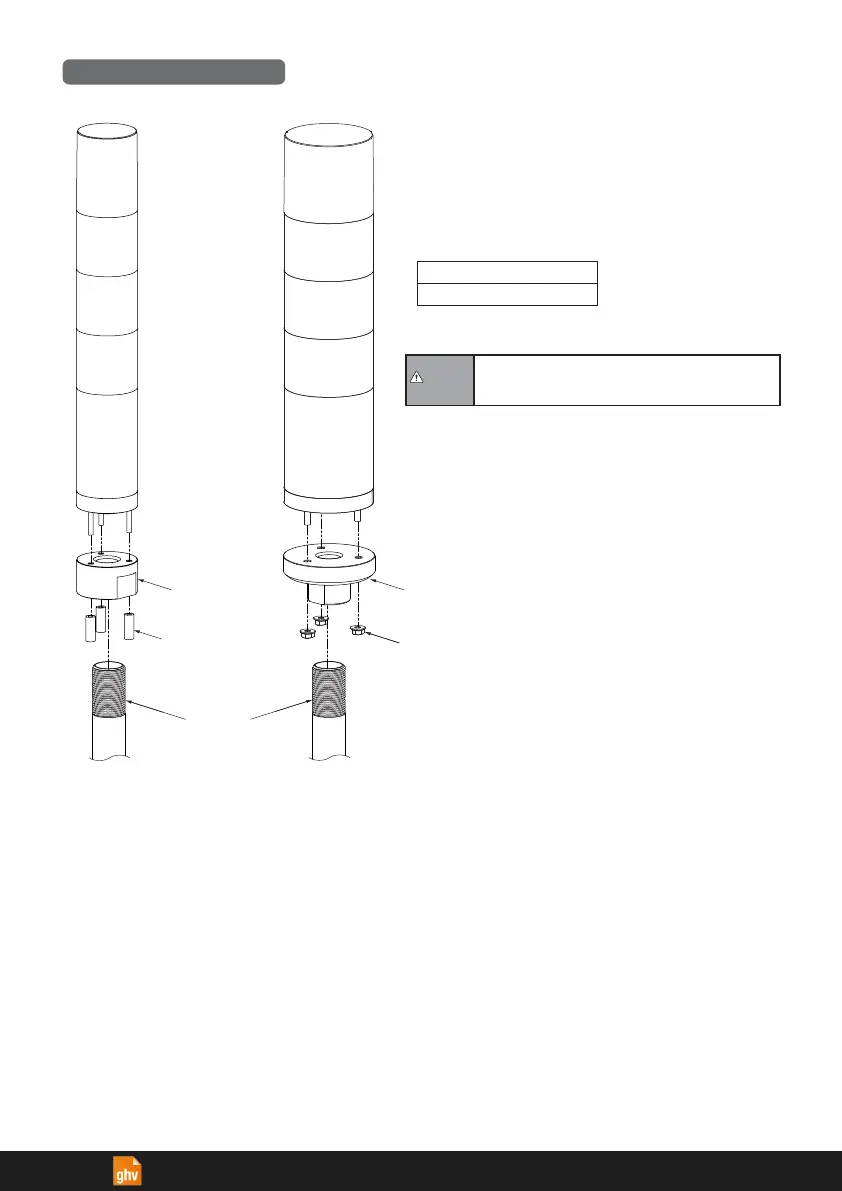

1. Insert the mounting screws of the product into the NPT Bracket.
See the figure on the left for details on the direction of insertion.
2. Secure the product from underneath the NPT Bracket.
(Used the screw-tapped spacer (3pcs.) for SZP-090U and
the franged nut (3 pcs.) for SZP-091U.)
3. Insert pole (1/2’’NPT) into the NPT Bracket.
(Required pole is not included.)
Product Attachment
0.6 N
m
Recommended Torque
