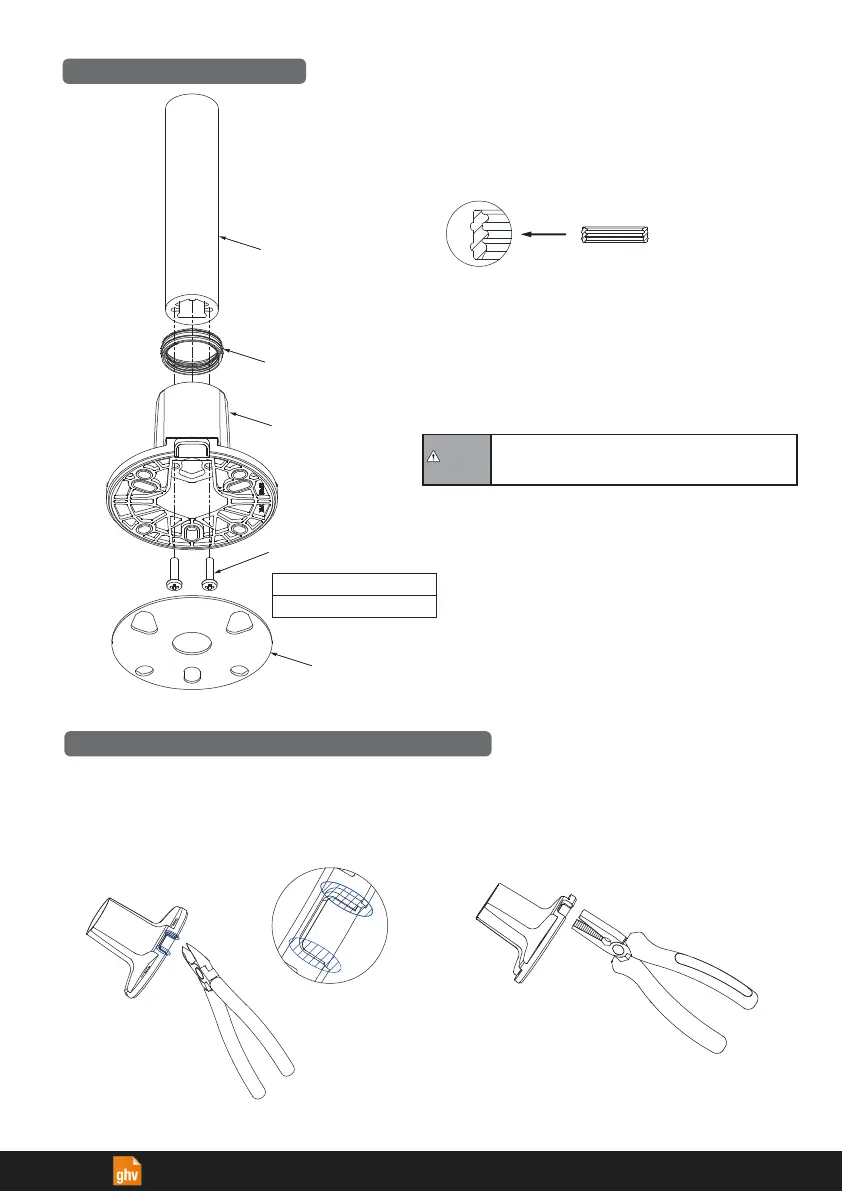

Patlite LR4 - Pole Installation

To Next Page

To Previous Page

Pole

Pole Waterproof

Ring

Circular Bracket

Binding Head Tapping Screw

3×12

2 pcs.

0.8 N m

Recommended Torque

Waterproof Packing

（

Secure with double-sided tape

）

Enlarged Drawing

1. Install the Pole Waterproof Ring in the Circular Bracket.

Check that the 2 ribs are on the outside.

2. Insert Pole into the Circular Bracket. See the figure on the left for

details on the direction of insertion.

3. Tighten the Binding Head Tapping Screws (2 pcs.) from

underneath the Circular Bracket.

4. Put the Waterproof Packing on the bottom of Circular Bracket.

Take a cable out from a side

（

Processing Method

）

This part has perforations to make it possible to run a cable out from the side.

1. Refer to the enlarged drawing and cut the outlined

part of the bracket.

Cut in two places with nippers.

2. Break off the outlined part with pliers. If there are

burrs, carefully remove with plyers or a file.

Installation using materials other than the specified

accessories is not covered under warranty.

Notice

Pole Installation

Cutting a side-hole for cable (Procedure)
