Cable Length L
(∅15)
Pin No.
①
White
Wire Color
②
Brown
③
Green
④
Yellow
⑤
Gray
⑥
Pink
⑦
Blue
⑧
Red

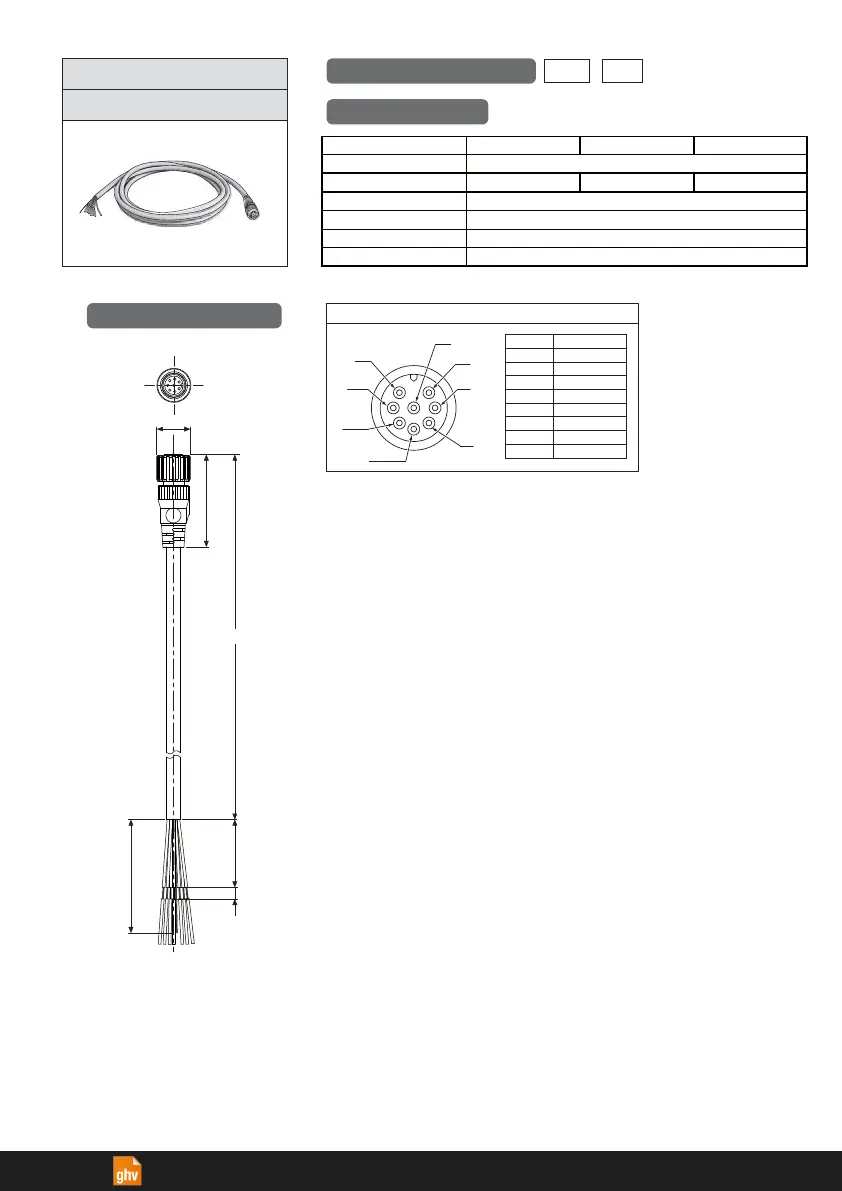

M12 Connector Pin Layout
M12 Connector with Cable
SZ-120-02 / -05 / -10
-
WCLR6
Compatible Models
Specifications
Outer Dimensions
Manufactured by the OMRON Corp.
Cable length L (mm)
Mounting Location
Model
SZ-120-02
Remarks
Number of core wires
Indoor Only
SZ-120-05
SZ-120-10
2000
5000
10000
8
AWG23
Jacket Diameter / Color
φ6.3 / Light gray
Cross section Area
（Unit
:
mm
）
