PAVONE DAT 500 - Grounding Connections Dat500

Page 51
1
2
3
4
5
A
B
D
C
“0 Vdc”

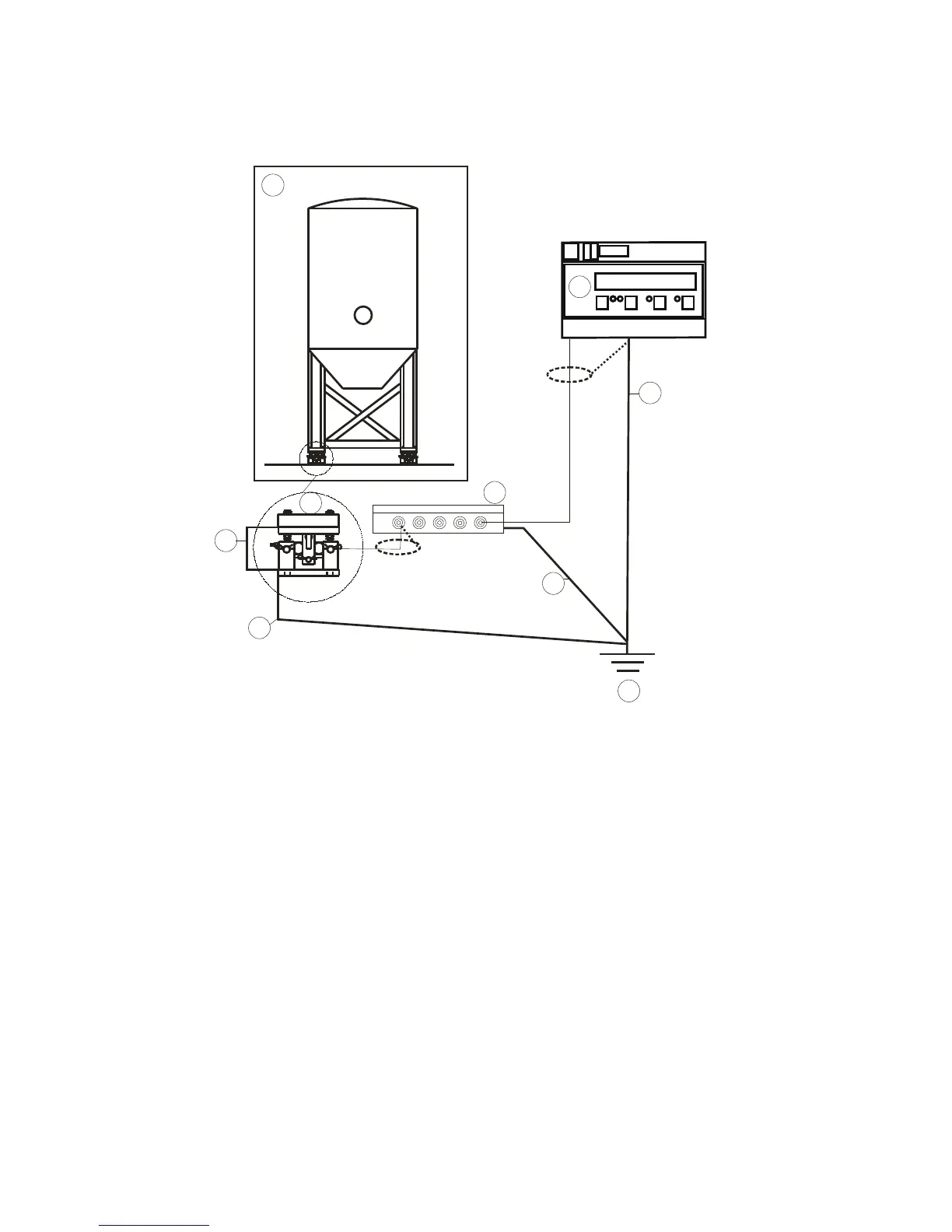

GROUNDING CONNECTIONS DAT-500
1: Silo.
2: Load cell Accessory.
3: Junction Box.
4: DAT indicator.
A: Load receptor-base Earthing.
B: Accessory Earthing.
C: Junction Box Earthing.
D: DAT indicator Earthing.
