WELCOME TO TODAY'S GENERATION
OF COMFORT
Congratulations! Your new, higher efficiency gas furnace is a
sound investment which will reward you and your fanfily with
years of warm memories winter after winter.
Not only is your new furnace energy efficient, it is also extremely
reliable. Spend just a few nfinutes with this booklet to learn about
the operation of your new furnace--and the small amount of
maintenance it takes to keep it operating at peak efficiency. Years
went into the development of your new furnace. Take a little time
now to assure its most efficient operation for years to come.
TABLE OF CONTENTS
WELCOME TO TODAY'S GENERATION OF COMFORT . . 2
FURNACE COMPONENTS ........................... 2
GENERAL FURNACE SAFETY ....................... 2
IMPORTANT FACTS ................................ 2
SAFETY CONSIDERATIONS ......................... 3
BEFORE STARTING YOUR FURNACE ................. 3
STARTING YOUR FURNACE ......................... 3
Steps for Starting Your Furnace ........................ 3
SHUTTING DOWN YOUR FURNACE .................. 5
PERFORMING ROUTINE MAINTENANCE ............. 5
Filtering Out Trouble ................................ 6
COMBUSTION AREA AND VENT SYSTEM ............ 6
BEFORE YOU REQUEST A SERVICE CALL ............ 7
REGULAR DEALER MAINTENANCE ................. 7
INSTALLATION DATA .............................. 8
GENERAL FURNACE SAFETY
COMBUSTIBLE MATERIALS, GASOLINE WARNING .... 1
FLOOD DAMAGE WARNING ........................ 1
FIRE OR EXPLOSION HAZARD WARNING .............. 1
CARBON MONOXIDE WARNING ..................... 1
FURNACE MUST BE KEPT FREE AND CLEAR OF
INSULATING MATERIAL WARNING ................... 3
STARTING (LIGHTING) AND SHUTTING DOWN THE
FURNACE WARNING .............................. 3
PROPER FURNACE SHUTDOWN PROCEDURES ....... 5
SERVICE AND MAINTENANCE ELECTRICAL HAZARD
WARNING ..................................... 5
SHARP EDGES CAUTION .......................... 5
NO FILTER CAUTION ............................. 5
IMPROPER VENT WARNING ......................... 6
FILTER ROD MODIFICATION CAUTION .............. 6
DIRT, RUST, OR ACCUMULATION CAUTION ........... 6
FURNACE NEEDS AIR FOR COMBUSTION AND
VENTILATION WARNING ........................... 6
DRAFT SAFEGUARD SWITCH CAUTION .............. 7
FURNACE COMPONENTS
(Furnace shown in upflow position; may be used in downflow or
horizontal orientation or applications. Vent Elbow may be turned
to a different position, depending on type of installation)
INDUCER MOTOR
ASSEMBLY
PRESSURE
SWITCH
FLUE COLLECTOR
BOX
GAS VALVE --
MANUALRESET
UMIT SWITCHES
HOTSURFACE
IGNITOR
BLOWER
DOOR SAFETY --
SWITCH
FURNACE --
CONTROL
BOARD
VENT
ELBOW
MAIN UMIT SWITCH
(BEHIND GAS VALVE)
BLOCKED VENT
SWITCH
FLAME
SENSOR
BLOWER AND
MOTOR
CAPACITOR/
POWERCHOKE
A10259

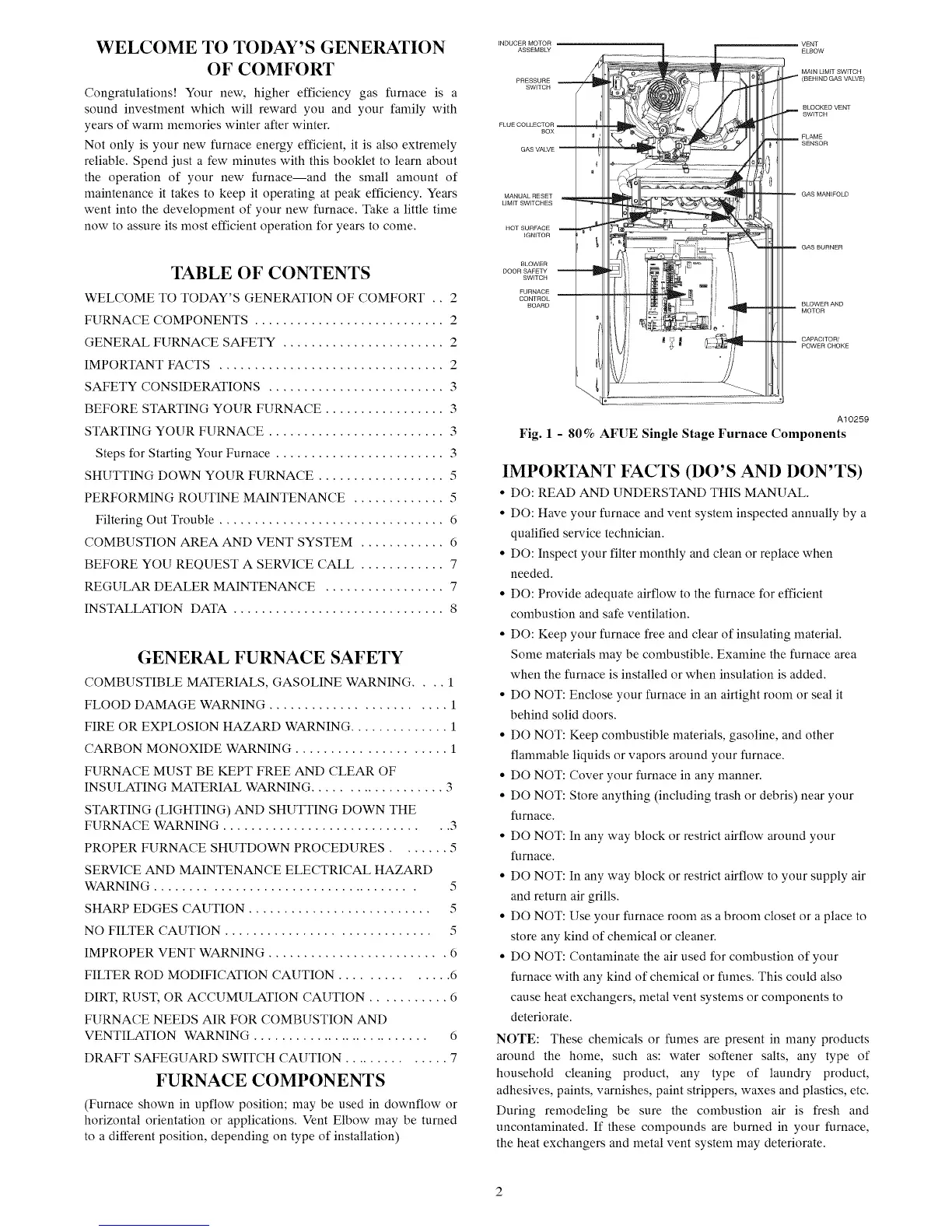

Fig. 1 - 80% AFUE Single Stage Furnace Components
IMPORTANT FACTS (DO'S AND DON'TS)
• DO: READ AND UNDERSTAND THIS MANUAL
• DO: Have your furnace and vent system inspected annually by a
qualified service technician.
• DO: Inspect your filter monthly and clean or replace when
needed.
• DO: Provide adequate airflow to the furnace for efficient
combustion and safe ventilation.
• DO: Keep your furnace free and clear of insulating material.
Some materials may be combustible. Exanfine the furnace area
when the furnace is installed or when insulation is added.
• DO NOT: Enclose your furnace in an airtight room or seal it
behind solid doors.
• DO NOT: Keep combustible materials, gasoline, and other
flammable liquids or vapors around your furnace.
• DO NOT: Cover your furnace in any manner.
• DO NOT: Store anything (including trash or debris) near your
furnace.
• DO NOT: In any way block or restrict airflow around your
furnace.
• DO NOT: In any way block or restrict airflow to your supply air
and return air grills.
• DO NOT: Use your furnace room as a broom closet or a place to
store any kind of chenfical or cleaner.
• DO NOT: Contanfinate the air used for combustion of your
furnace with any kind of chenfical or fumes. This could also
cause heat exchangers, metal vent systems or components to
deteriorate.
NOTE: These chenficals or fumes are present in many products
around the home, such as: water softener salts, any type of
household cleaning product, any type of laundry product,
adhesives, paints, varnishes, paint strippers, waxes and plastics, etc.
During remodeling be sure the combustion air is fresh and
uncontanfinated. If these compounds are burned in your furnace,
the heat exchangers and metal vent system may deteriorate.
