Payne PG95 - Page 67

67
ON/OFF Switch
Regulator Seal Cap
Regulator Adjustment
Regulator Seal Cap under Cap
1/2” NPT Outlet
1/8” NPT Manifold
Pressure Tap
1/8” NPT Inlet
Pressure Tap
1/2” NPT Inlet
SINGLE-STAGE
Representative drawing only, some models may vary in appearance.

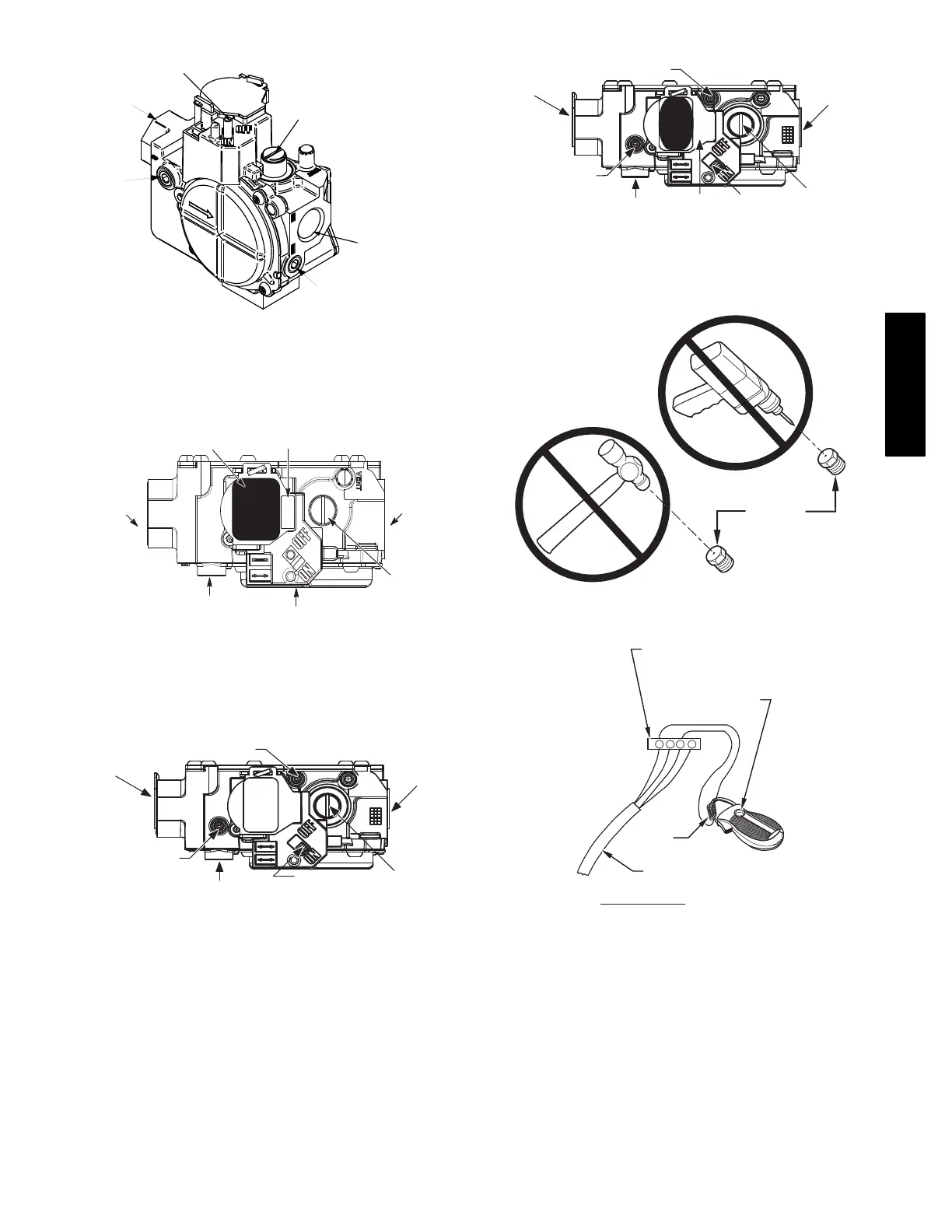

Standard Capacity Gas Valve without Tower Pressure Ports
A11153
Representative drawing only, some models may vary in appearance.
WhiteLabel Black
T
ext
G
reenLabel
Black
T
ext
ON/OFF Switch
½” NPT Inlet
Regulator Seal Cap
Regulator Adjustment
Regulator Seal Cap
Under Cap
½” NPT Outlet
⅛” NPT Inlet
Pressure Tap
1.5” W.C.
White Rodgers
MODEL 36J60(515
24V 50/60HZ .280 AMPS
MAX. PRESS ½ PSI
REG, 1.5” W.C.
26,000 BTUH Low Capacity Gas Valve without Tower
Pressure Ports
A170147
ON/OFF SWITCH
1/8” NPT INLET
PRESSURE TAP
REGULATOR SEAL CAP
(REGULATOR ADJ.
UNDER CAP)
1/2” NPT
OUTLET
MANIFOLD PRESSURE TAP
SET SCREW: 3/32” HEX HEAD
ACCEPTS 5/16” HOSE CONNECTION
OUTP
INP
VENT
1/2” NPT
INLET
INLET PRESSURE
TAP SET SCREW:
3/32” HEX HEAD
ACCEPTS 5/16”
HOSE CONNECTION
Representative drawing only, some models may vary in appearance.
A170118
Standard Capacity Gas Valve with Tower Pressure Ports
1/8” NPT INLET
PRESSURE TAP
REGULATOR SEAL CAP
(REGULATOR ADJ.
UNDER CAP)
1/2” NPT
OUTLET
MANIFOLD PRESSURE TAP
SET SCREW: 3/32” HEX HEAD
ACCEPTS 5/16” HOSE CONNECTION
OUTP
INP
VENT
1/2” NPT
INLET
INLET PRESSURE
TAP SET SCREW:
3/32” HEX HEAD
ACCEPTS 5/16”
HOSE CONNECTION
Representative drawing only, some models may vary in appearance.
Green Label Black Text
ON/OFF
SWITCH
1.5”
W.C
.
White Label Black Text
A170140
26,000 BTUH Low Capacity Gas Valve with Tower Pressure
Ports
Fig. 59 − Gas Valves with Tower Pressure Ports
BURNER
ORIFICE
A93059
Fig. 60 − Orifice Hole
R Y W G
10 TURNS
THERMOSTAT SUBBASE
TERMINALS WITH
THERMOSTAT REMOVED
(ANITICIPATOR, CLOCK, ETC.,
MUST BE OUT OF CIRCUIT.)
HOOK-AROUND
AMMETER
EXAMPLE:
5.0 AMPS ON AMMETER
10 TURNS AROUND JAWS
=
0.5 AMPS FOR THERMOSTAT
ANTICIPATOR SETTING
FROM UNIT 24-V
CONTROL TERMINALS
A96316
Fig. 61 − Amp. Draw Check with Ammeter
PG95SAS
