PCB Piezotronics IMI SENSORS 685B0000A10 User Manual

PAGE 9
SENSORS AND INSTRUME
NTATION FOR MACHINE
CONDITION MONITORING

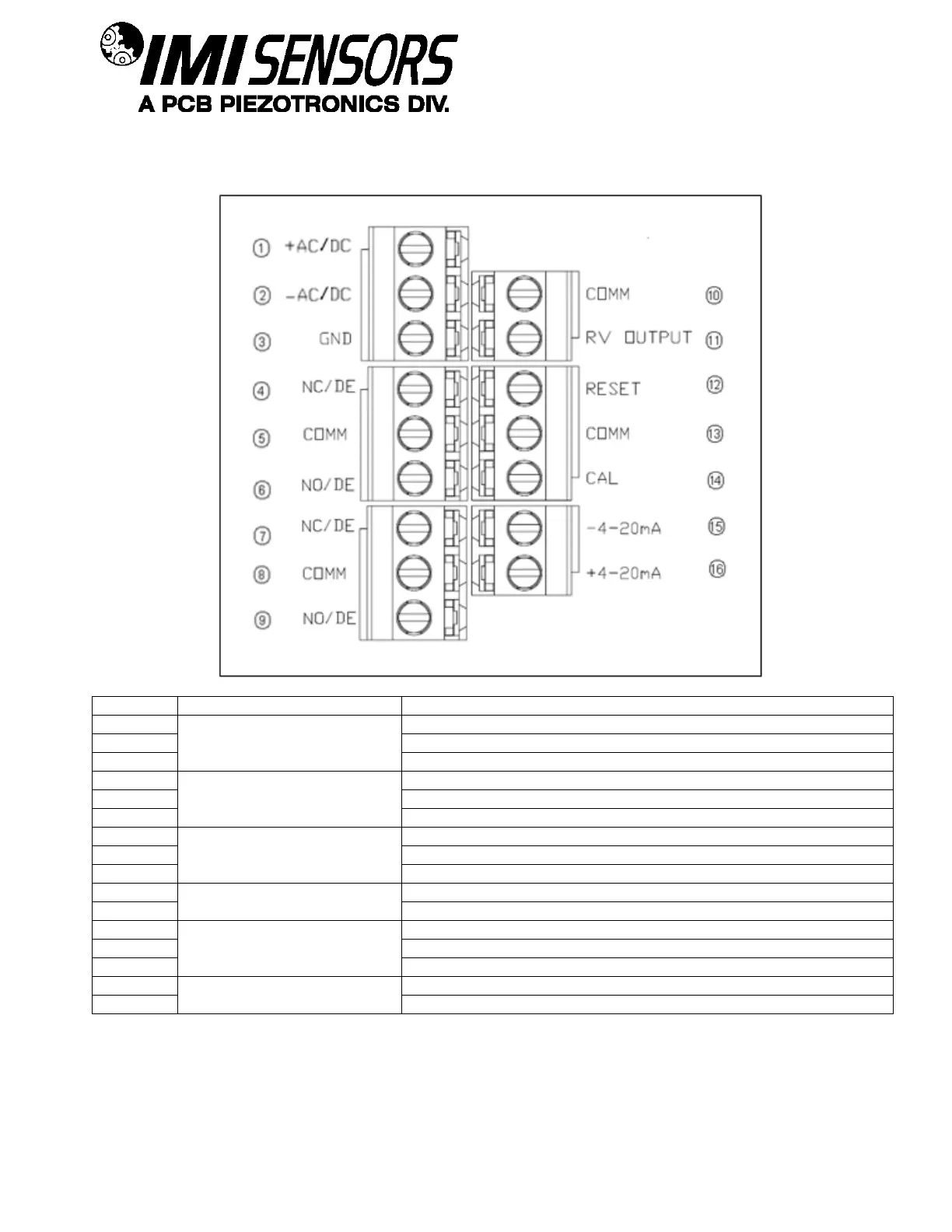

Pin Location Diagram- Models with Internal Accelerometer and Electromechanical Relays
Pin
Category
Description
1
AC Power
+ Power
2
- Power/Common
3
Earth Ground (Also connect to enclosure safety lug)
4
Alarm Output
Normally Closed (when dipswitch is in de-energized position)
5
Common connection
6
Normally Open (when dipswitch is in de-energized position)
7
Alert Output
Normally Closed (when dipswitch is in de-energized position)
8
Common connection
9
Normally Open (when dipswitch is in de-energized position)
10
Raw Vibration Output
Common
11
+Signal
12
Control Configurations
Remote Reset Connection (Do not apply power)
13
Common Connection
14
Calibration Connection
15
Current Output
- 4-20 mA
16
+ 4-20 mA
