15 16
7. LCD screen description

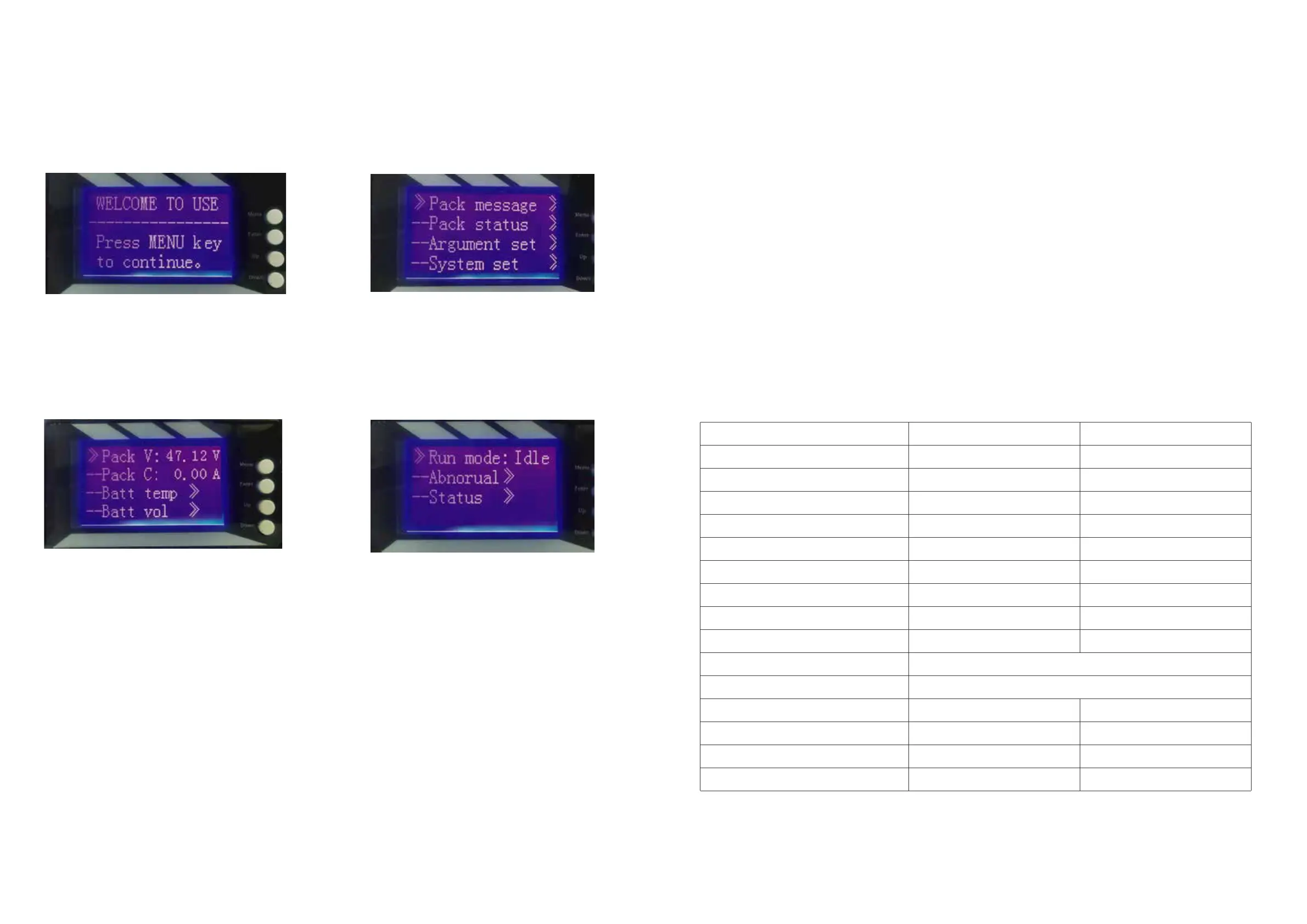

1. Boot page 2. Main menu page
After the power on/sleep is activated,
the welcome interface will be displayed,
as shown in the following figure.
Press the menu key to enter the
main menu page, as shown in the
following figure.
3. Battery parameter collection page 4. Battery status page
When the cursor points to“battery
parameter acquisition”,press enter to
enter the“battery parameter” acquisition
page,as shown in the following figure.
When the cursor points to“battery state”,
press the ENTER button to enter the
battery status page,as shown in the
following figure.
(1) SW1---- MENU, SW2---- ENTER, SW3----UP, SW4---- DOWN.
(2) Every item will use the“》”or“--” to start,“》”means the current cursor position, press UP
or DOWN to move the cursor position up and down. Items ending with “》” indicate that
the item has contents not displayed. Press enter to enter the corresponding page.
(3) Press ESC to return to the previous directory. Press the menu key anywhere to return
to the main menu page.
(4) In the sleep state, press any key to activate the display screen.
5. Key description
6. Sleep/Shutdown
In the normal operation state, the system will enter the sleep/shutdown state after 1
minute without key operation. In the sleep state, operate any key and the display screen
will be activated.
Note: he dimensions in the are the product appearance dimensions. If any change for
the products, will adjusted by the manufacture.
7. All date of LCD display
8. Technical parameter list
Pack message》 Pack V:
Pack C: “_”: discharging
“+”: charging
“0”: stand by
Battery temp》 Temp1:
Temp2:
Temp3:
Temp4:
PCB temp:
EV temp:
Battery vol》 Vol 01:
Vol 02:
Vol 16:
Battery cap》 SOC:
Full Cap:
Sur Cap:
Cyc Indx:
Pack status》 Run mode: Charging or discharging
Abnorual》 Short Num:
Temp Pro:
Over C Pro:
Low V Pro:
Over V Num:
status》 HT Alarm:
HT Pro:
HV Alarm:
HV Pro:
LV Alarm:
LV Pro:
HC Aarm:
HC Pro:
Short Pro:
Fail Tro:
Argumentset》 --Not manufacturer. Cannot use. system set》--Baud rate: 9600
Model
Nominal Energy (KWh)
Nominal Voltage (V)
Charge Voltage (V)
Discharge Cut-off Voltage (V)
Max.Continuous Charging Current (A)
Max.Continuous Discharging Curent (A)
Cycle Life
Operating Temp
Size(LxWxH) mm
Net Weight (Kg)
Package Size (L×WXH) mm
Gross Weight (Kg)
Standard Charging Current(A)
Array Mode
16S100BL
51.2
58.4
20
42
100
100100
100
42
40
5.0 10.0
16S 16S
47 85
68 110
575×520×335 750×520×385
445×170×510 445×206×675
≥6000 times@80%DOD, 25°C
Charge:0~60°C; Discharge: -20°C~65°C
16S200BL
51.2
58.4
RS485/CANCommunication Mode
RS485/CAN
