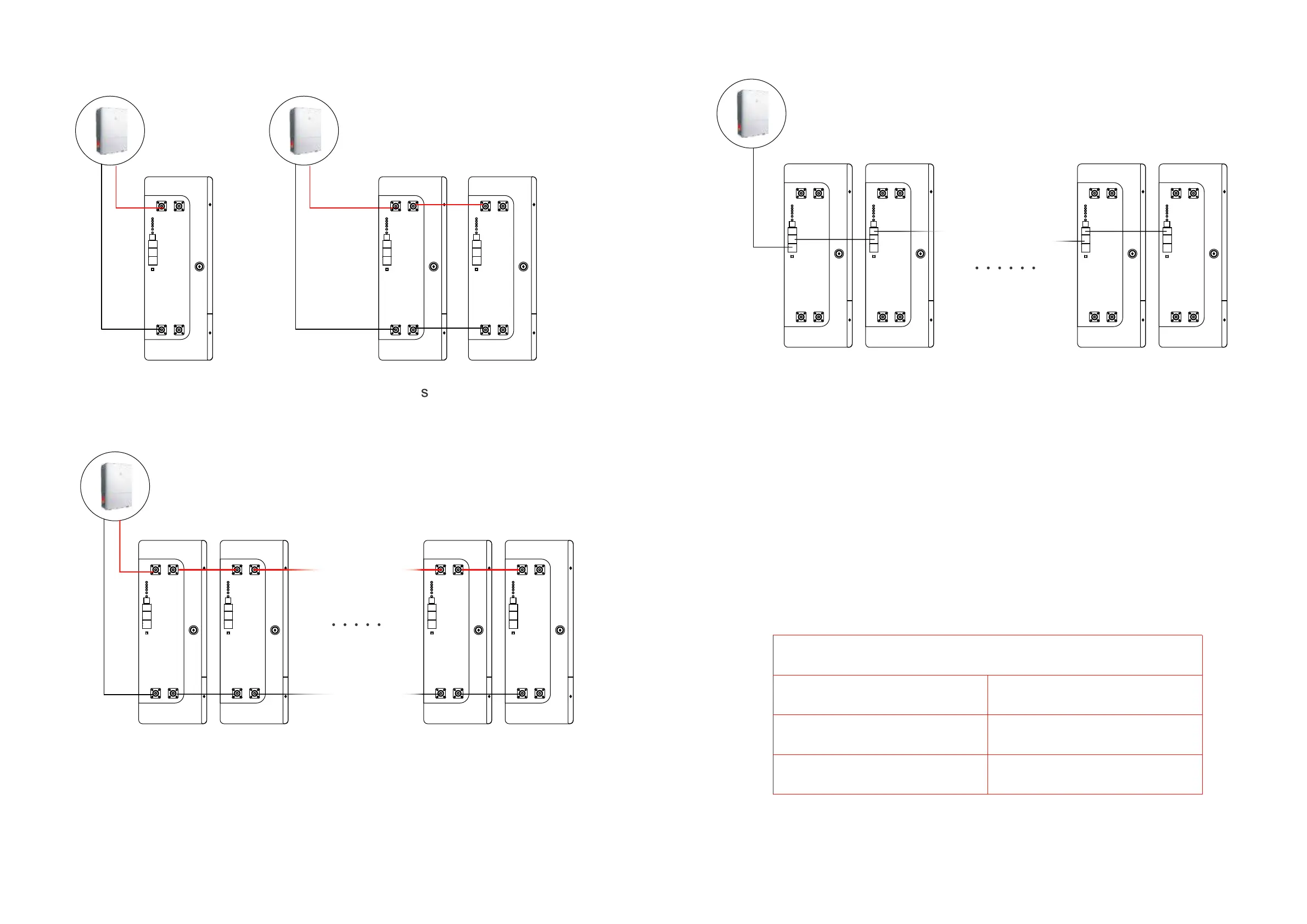

4、Schematic diagram of connecting
9 10
Note：1.When the battery pack is used in parallel, it is necessary to
distinguish different packs by hardware address, and the hardware
address of each pack in the whole battery pack is unique.
Battery type: LiFePO4 (lithium ion battery)
Recommended setting data of inverter:
Discharge cut-off voltage: 46V
Over discharge recovery: 48V
Normal charging voltage: 58V
Surge charging voltage: 60V
Overvoltage protection: 58.4V
Overvoltage recovery: 56V
2. lt must set up a park for the host park.The inverter communicate
with host pack via PRS485/CAN. The hardwareaddress can be set
successively through the dial switch on theboard.
① One unit product
②Two unit products
③
More than Two units products
Maximum 15pcs
Maximum 15pcs
PACK1(Host） PACK2 PACK14 PACK15
......
PACK1 PACK15PACK14PACK2
④
Batteries are connected in communication
