68
L510010-11

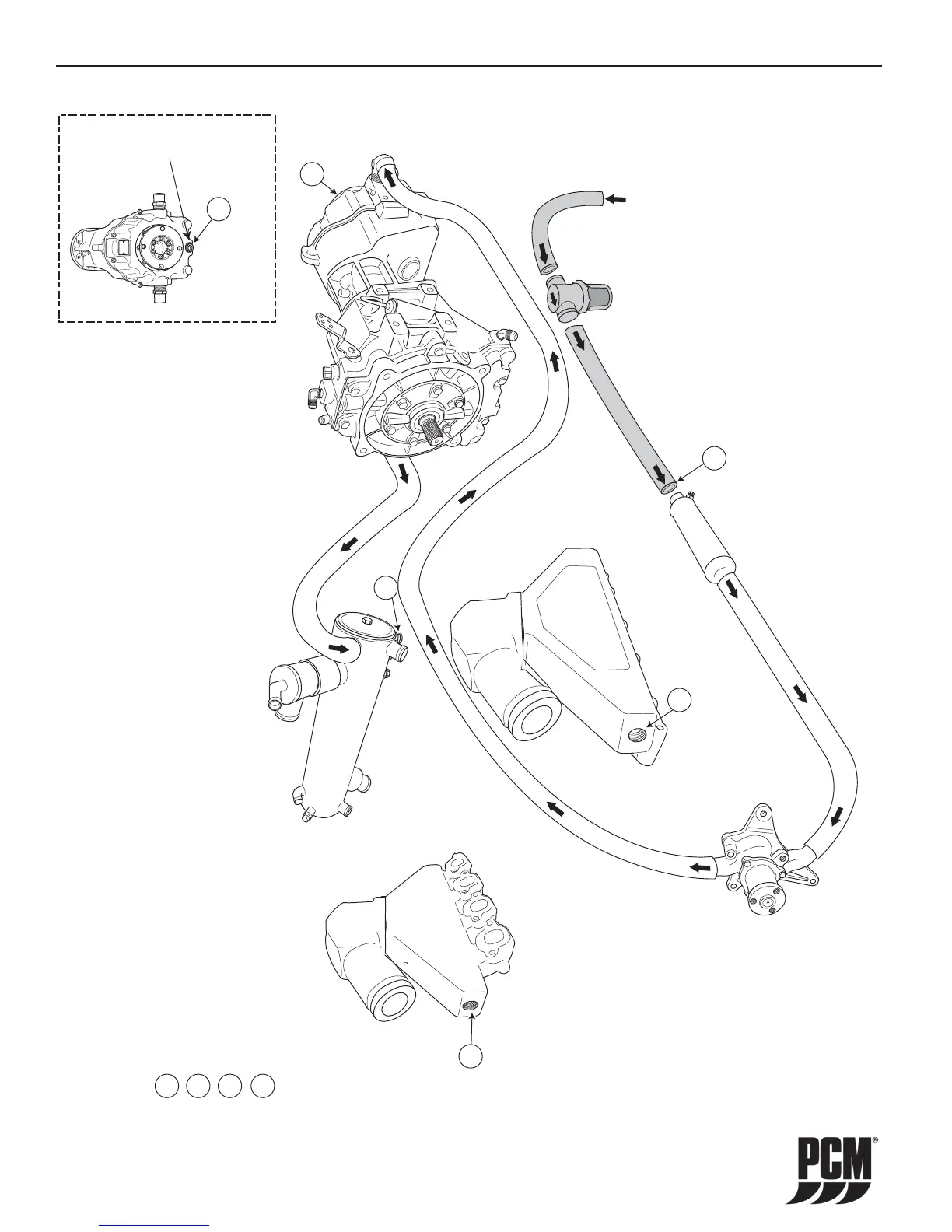

Figure 15-4 Vee Drive Half-System HO303 / EX343
From Sea
Water Pickup
Note: This diagram is for illustration purposes only. The actual
routing and/or shape of the hoses may vary slightly depending
on installation.
PLEASURECRA
FT
ENGINE G
RO
UP
POWER
P
LU
S
R
A
T
I
O
1.48
MADEI
NUSA
Raw Water
Drain Plug
1/2”
Square
PCM V-Drive
1
2
2
3
4
4
1
2
3
4
Drain Locations
- Heat Exchanger - Remove Drain Plug
- Exhaust Manifolds - Remove Drain Plugs
- Transmission Cooler - Remove Inlet Hose
-VDrive-RemoveDrainPlug
WATER FLOW DIAGRAMS - 15
