HEATER CONNECTIONS - 16
Figure 16-2 6.0L Applications

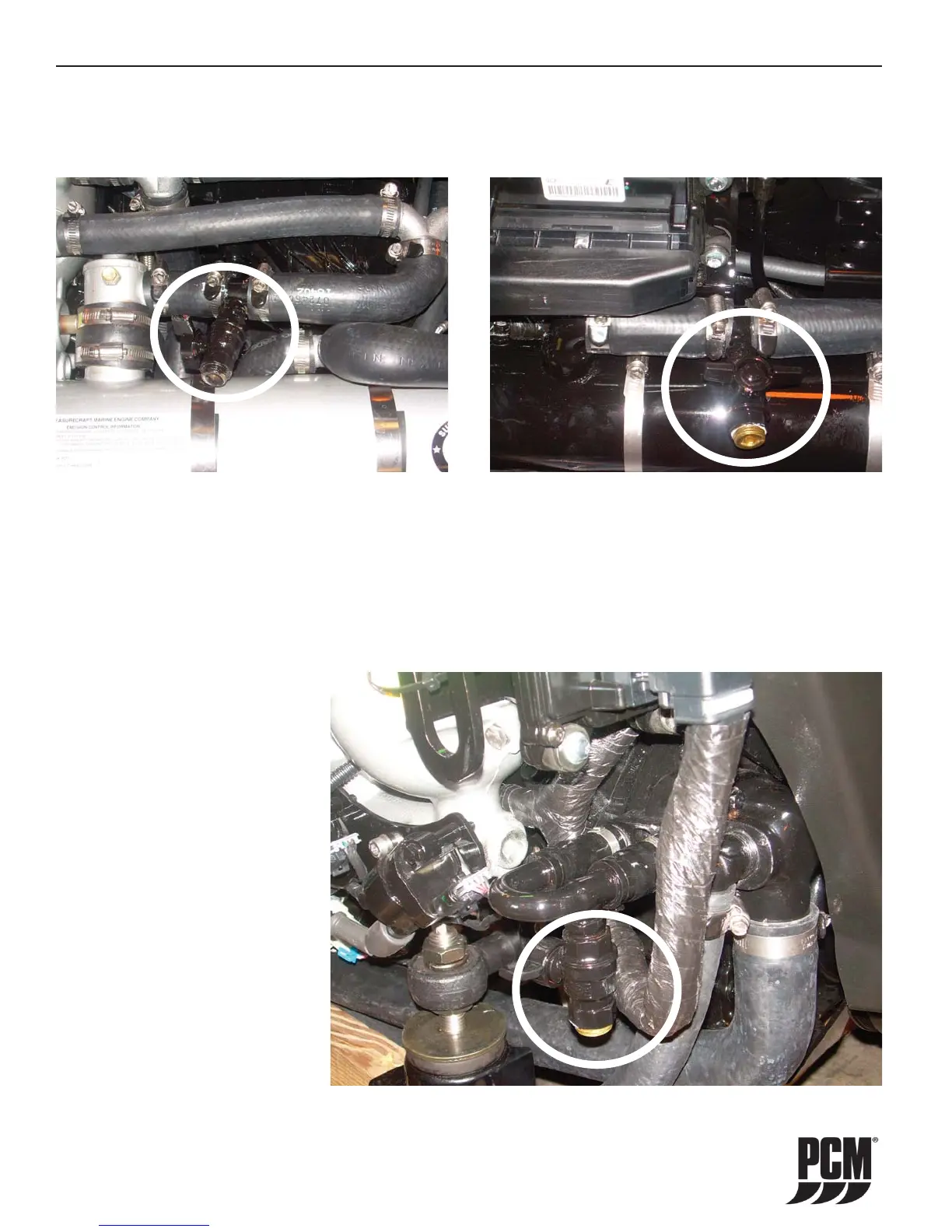

WATER OUT
Remove plug from supplied ball valve fi tting and install proper barbed fi tting. The fi tting is located in the hose above the
heat exchanger on both CES and non-catalyst engines.
WATER RETURN
Remove plug from supplied ball
valve fi tting and install proper
barbed fi tting. The fi tting is located
in the U-tube at the front lower right
hand portion of the engine, both
CES and non-catalyst engines.
6.0L Catanium Exhaust System (CES) 6.0L Non-Catalyst
