PCM 5.7L MPI - EX 343 User Manual

77
L510010-11
HEATER CONNECTIONS - 16

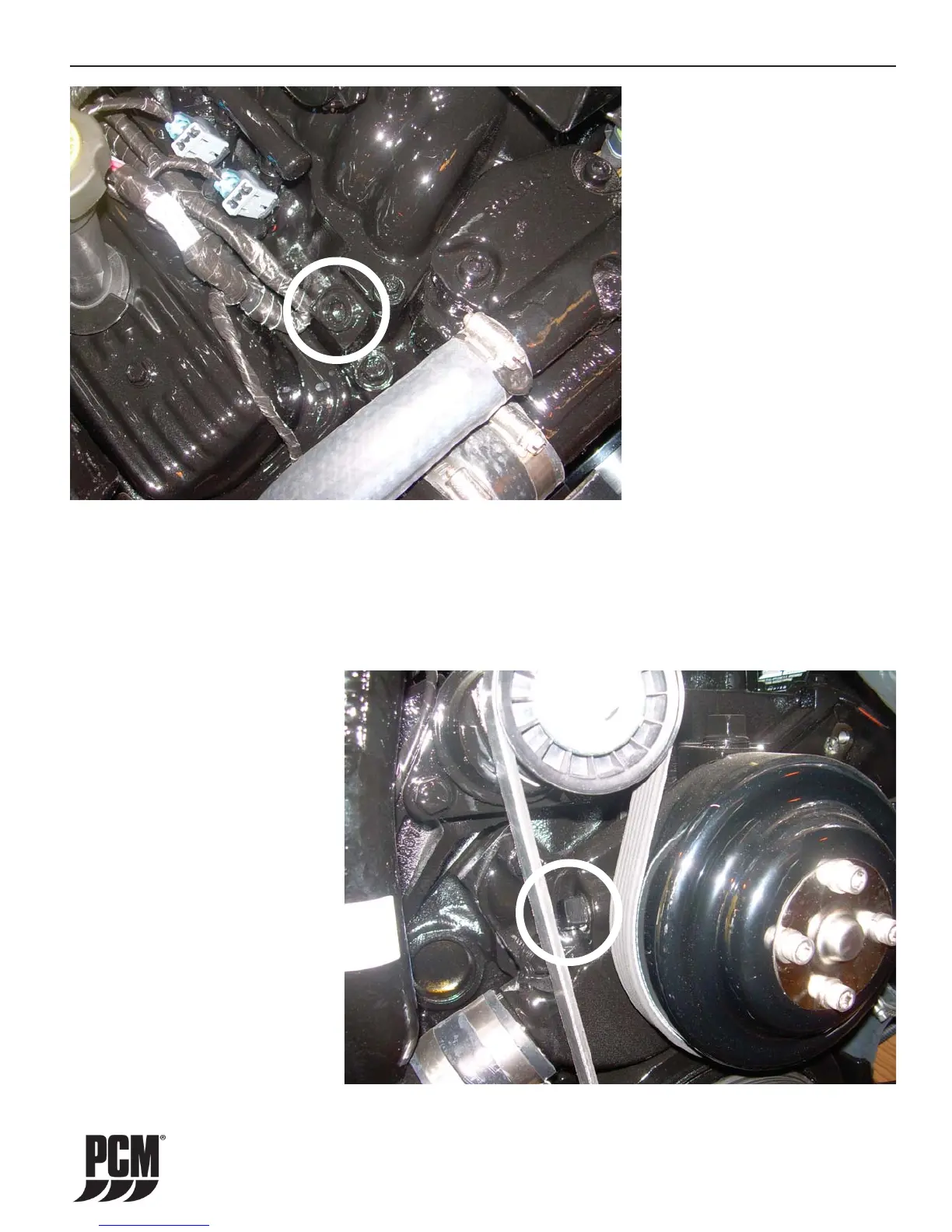

Figure 16-1 5.0/5.7L All Applications
WATER OUT
Remove plug from intake manifold
and install proper barbed fi tting.
The plug is located toward the front
of the intake (belt end) on the even
cylinder side.
WATER RETURN
Remove plug from circulation pump
and install proper barbed fi tting.
The plug is located on the side of
the circulation pump.
