L510010-11
INSTRUMENTATION WIRING DIAGRAMS - 17

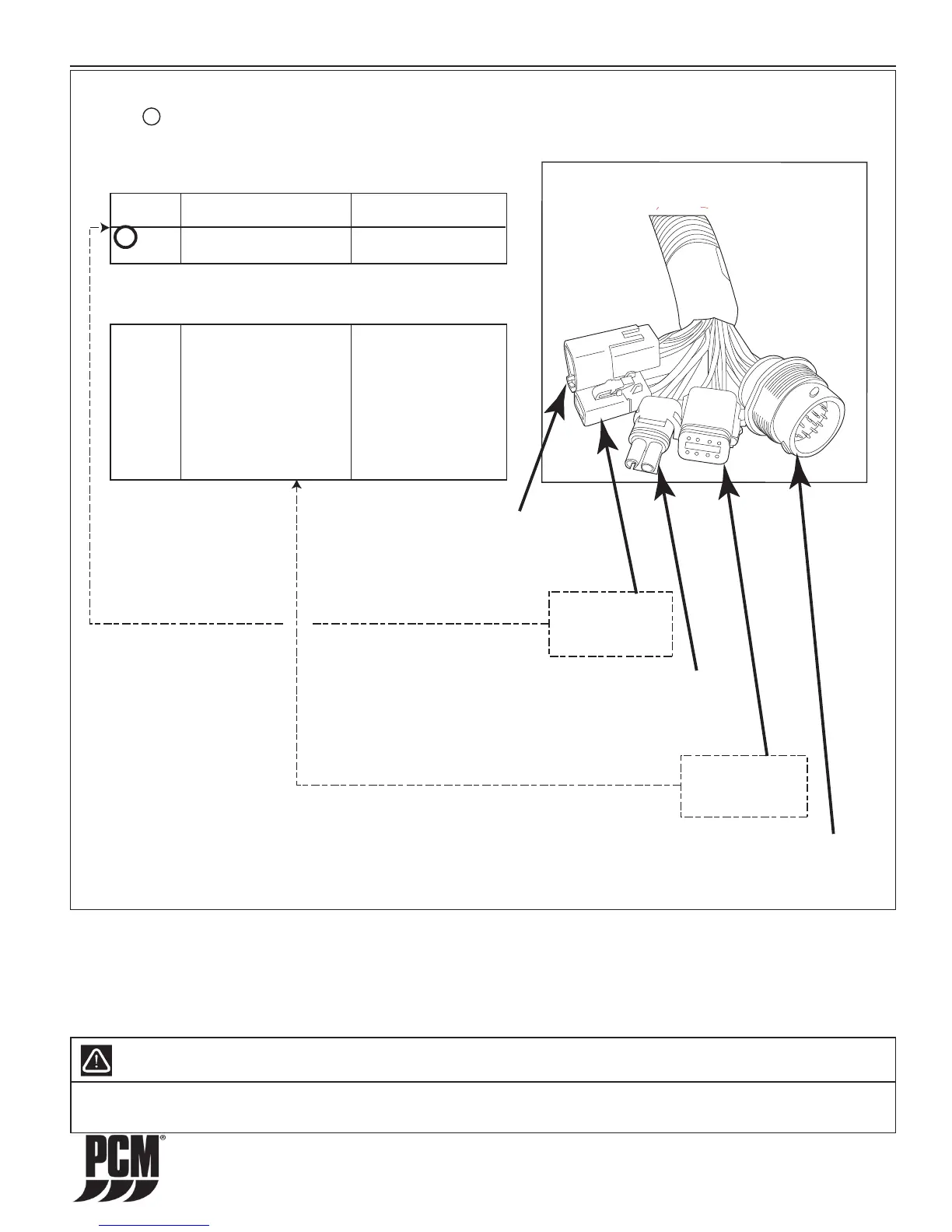

Figure 16-1 Typical Instrumentation Wiring
NOTE: ENGINE HARNESS WIRED FOR PANELS USING VOLTMETERS ONLY.
NOTE
A
: POWER FOR A FUSED ACCESSORY PANEL MAY BE TAKEN FROM
THIS LOCATION. LOAD CANNOT EXCEED 30 AMPS.
CIRCUIT CIRCUIT ENGINE HARNESS
NUMBER NAME WIRE COLOR
1. VBAT RED/PURPLE
2. GROUND BLACK
2-PIN WIRE HARNESS COLOR CHART
A
ENGINE
HARNESS
SPEED CONTROL/
CAN BUS
CONNECTOR
FUEL TANK
SOLENOID
CONNECTOR
TWIN ENGINE
MASTER/SLAVE
CONNECTOR
2-PIN BOAT
HARNESS
CONNECTOR
8-PIN BOAT
HARNESS
CONNECTOR
CIRCUIT CIRCUIT ENGINE HARNESS
NUMBER NAME WIRE COLOR
*1. *CHECK GAUGES LAMP GRAY/BLACK*
2. TACHOMETER GRAY
3. COOLANT TEMP TAN
4. BUZZER TAN/BLACK
5. IGNITION PURPLE
6. MIL GREEN/YELLOW
7. STARTER YELLOW/RED
8. OIL PRESSURE DARK BLUE
8-PIN WIRE HARNESS COLOR CHART
*CES ENGINES ONLY
NOTE: The ‘MIL’ or Malfunction Indicator Lamp may be labeled the “Check
Engine Lamp” on the instrument panel. Check the boat owners manual for
exact labelling.
IMPORTANT: Your engine is designed to work with the standard electronics installed in your boat. If you add other
electrical components or accessories, you could change the way the fuel injection controls your engine or the overall
electrical system functions. Before adding electrical equipment, consult your dealer. If you don’t, your engine may not
perform properly.
CAUTION
Add-on equipment may adversely affect the alternator output or overload the electrical system. Any damage caused
as a result will not be covered by, and may void, your warranty.
