L510010-11

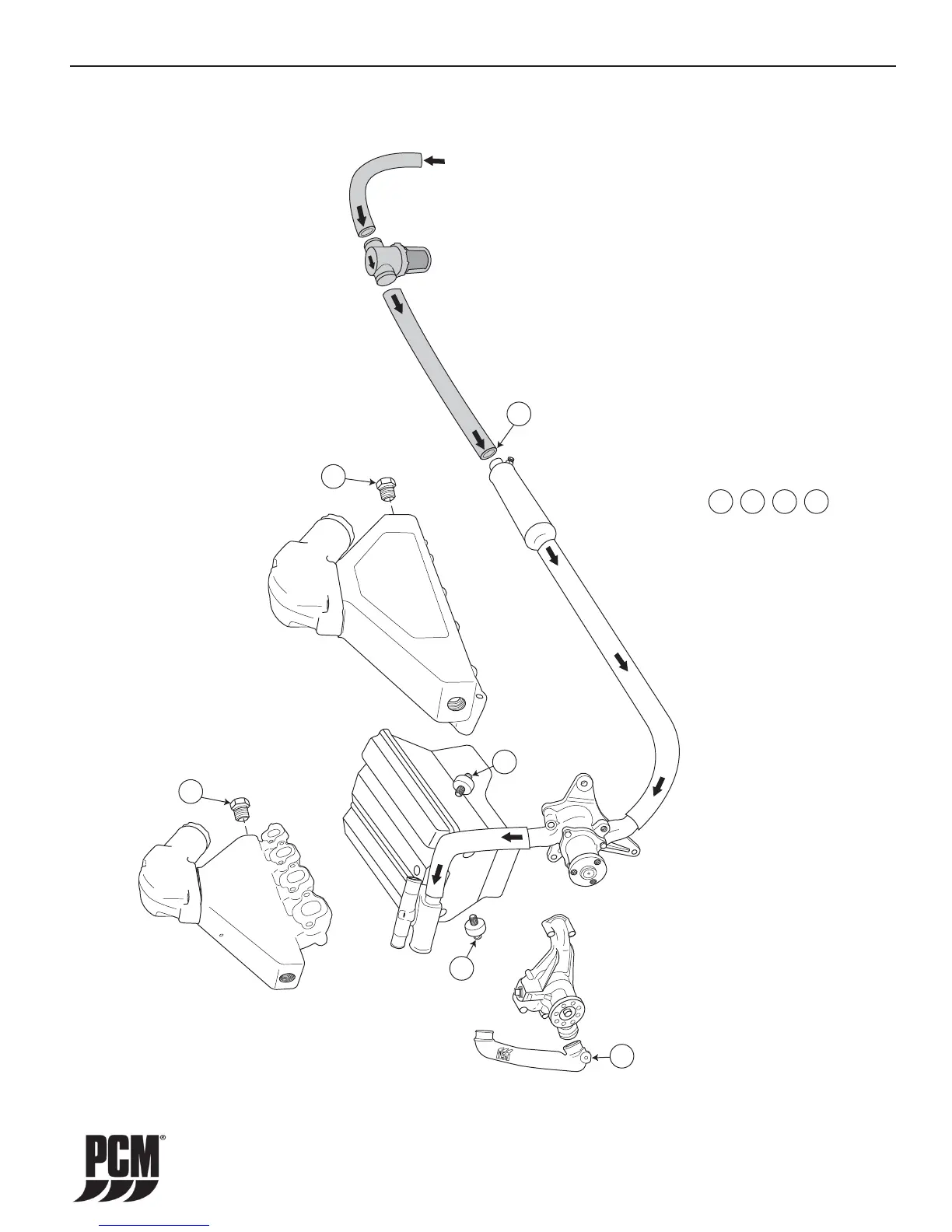

WATER FLOW DIAGRAMS - 15

From Sea

Water Pickup

Note: This diagram is for illustration purposes

only. The actual routing and/or shape of the hoses

may vary slightly depending on installation.

Drain Locations

- Engine Block Drains - Remove Knock Sensors

- Engine Circulating Water Pump Pipe - Remove Drain Plug

- Exhaust Manifolds - Remove Drain Plugs

- Transmission Cooler - Remove Inlet Hose

Figure 15-1 Direct Drive Raw-Water Cooling System HO303 / EX343
