77

L510010-11

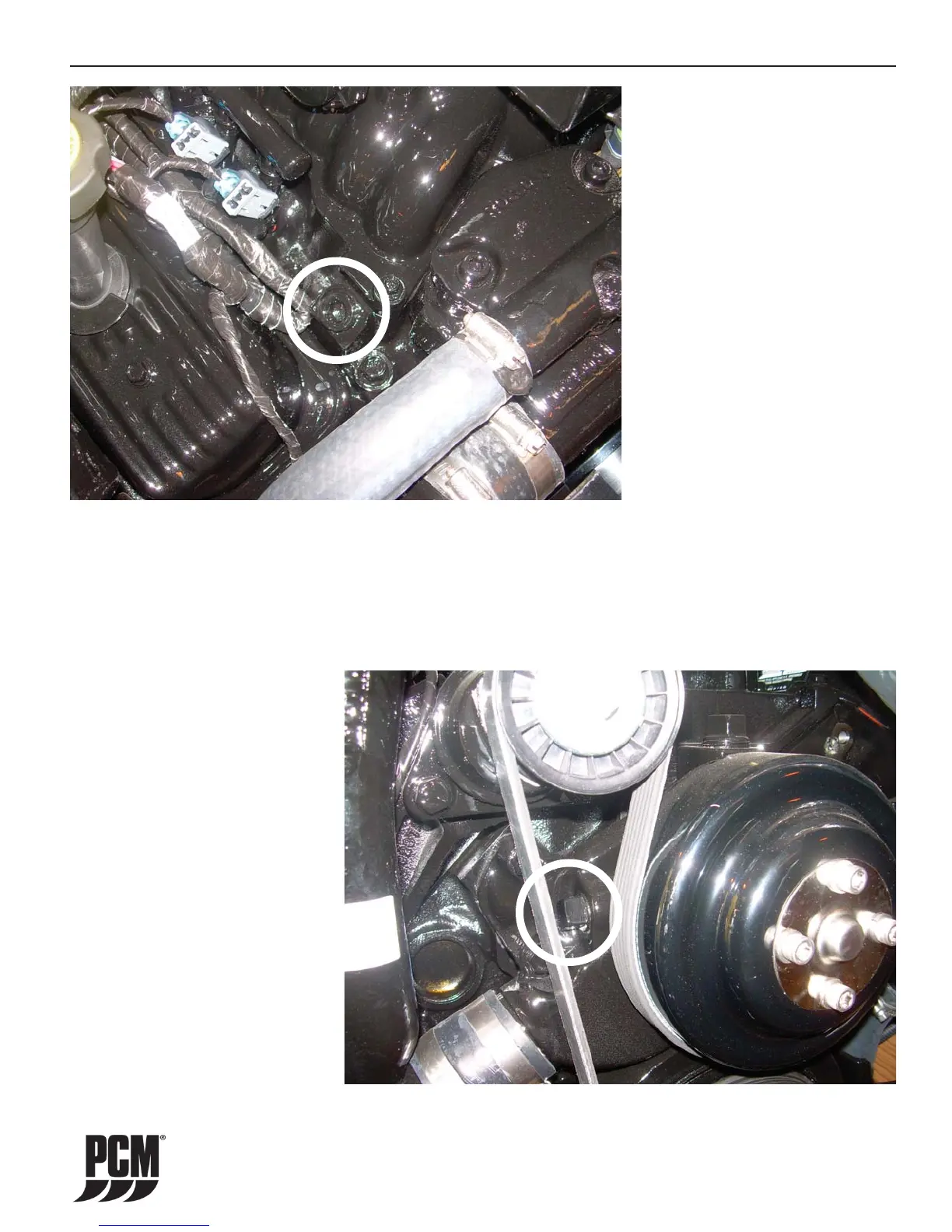

HEATER CONNECTIONS - 16

Figure 16-1 5.0/5.7L All Applications

WATER OUT

Remove plug from intake manifold

and install proper barbed ﬁ tting.

The plug is located toward the front

of the intake (belt end) on the even

cylinder side.

WATER RETURN

Remove plug from circulation pump

and install proper barbed ﬁ tting.

The plug is located on the side of

the circulation pump.
