1.48
MADEI
NUSA
Raw Water
Drain Plug
1/2”
Square
PCM V-Drive
Note: This diagram is for illustration purposes
only. The actual routing and/or shape of the
hoses may vary slightly depending on installation.
Heat Exchanger - Rear View
3
Raw Water
Drain/Zinc
Anode
Shaft Seal
Fitting
4
4
5
5
1
2
3
4
5
6

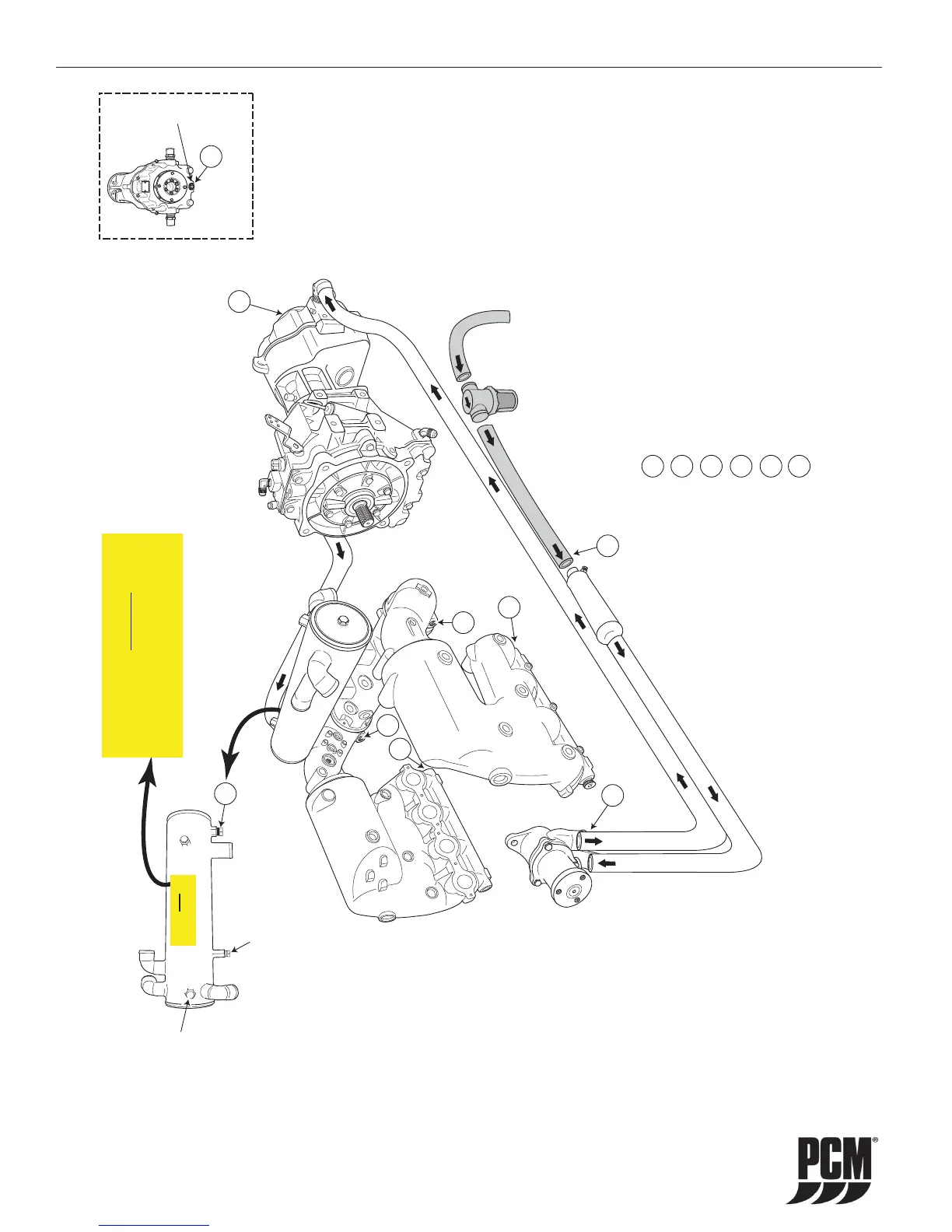

Drain Locations
- Transmission Oil Cooler - Remove Inlet Hose
- Raw Water Pump - Remove Outlet Hose
- Heat Exchanger - Remove Drain Plug/Zinc Anode
- Exhaust Manifolds - Remove Hose
- Exhaust Corners - Remove Drain Plugs
- VDrive - Remove Drain Plug
WARNING
WARNING
THEENGINE EXHAUST SYSTEM MUSTBE COMPLETELYDRAINED FOR WINTERIZATION.
REFERTO THE SPECIAL INSTRUCTIONSPROVIDED
FORTHE PROPER DRAINING PROCEDURE.
WARNING
WARNING
THE ENGINE EXHAUST SYSTEM MUST BE COMPLETELY DRAINED FOR WINTERIZATION.
REFER TO THE SPECIAL INSTRUCTIONS PROVIDED
FOR THE PROPER DRAINING PROCEDURE.
