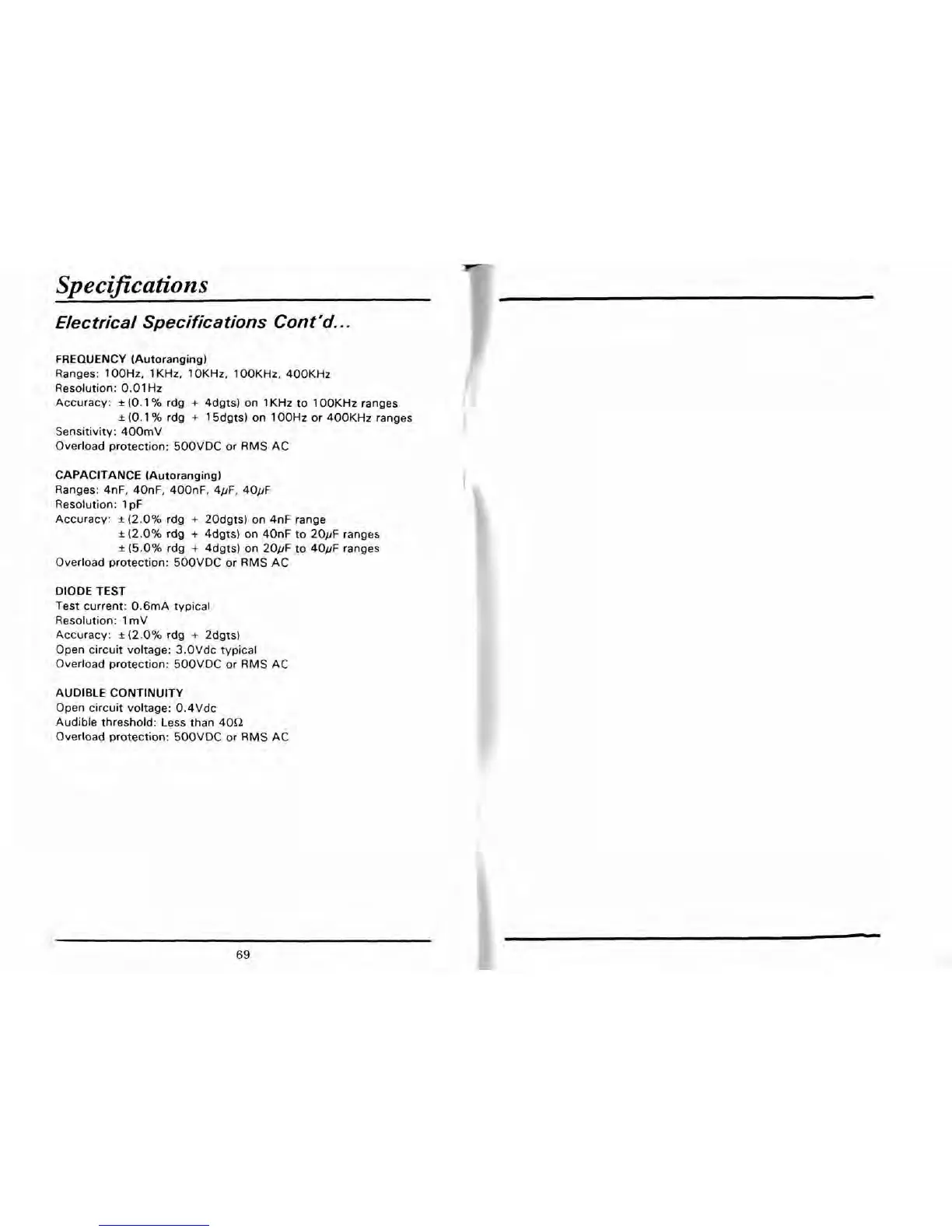

S~eci fications
Elec trical Specifics tions Con t 'd. . .
FREQUENCY (Autoranging)
Ranges: 1 OOHz, 1 KHz, 1 OKHz, 1 OOKHz, 400KHz
Resolution: 0.01 Hz
Accuracy:
rt (0.1 % rdg + 4dgts) on 1 KHz to 100KHz ranges
* (0.1 % rdg + 1 5dgts) on 100Hz or 400KHz ranges
Sensitivity:
400mV
Overload orotection: 500VDC or RMS AC
CAPACITANCE (Autorangingl
Ranges: 4nF, 40nF, 400nF. 4pF, 40pF
Resolution: 1 pF
Accuracy: i (2.0% rdg + 20dgtsl on 4nF range
+ (2.O0k rdg + 4dgts) on 40nF to 20pF ranges
+ (5.0% rdg + 4dgts) on 20pF to 40pF ranges
Overload orotection:
5OOVDC or RMS AC
DIODE TEST
Test current:
0.6mA typical
Resolution:
1 mV
Accuracy: + (2.0% rdg + 2dgts)
Open circuit voltage: 3.0Vdc typical
Overload orotection:
500VDC or RMS AC
AUDIBLE CONTINUITY
Open circuit voltage:
0.4Vdc
Audible threshold: Less than 40R
Overload protection:
SOOVDC or RMS AC
