Principles of Operation (continued)
Control System
The PDR Rework systems use the PDR T5 controllers which are PC controlled using PDR software. The main PDR Type
5 control box is used to provide electrical power to the various functions…top heat, back heat, vacuum, thermocouple
inputs etc.

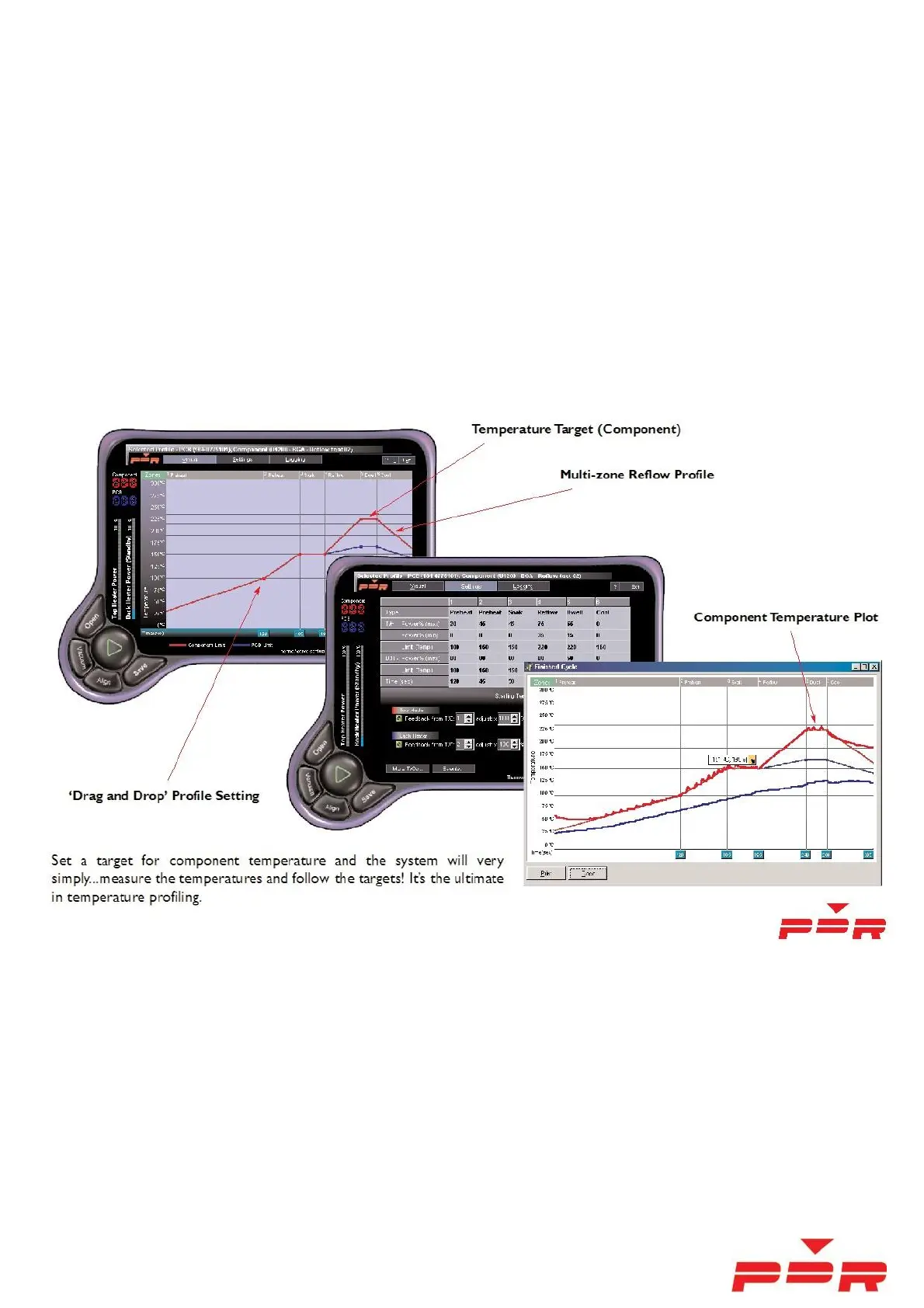

Detailed operating instructions are described later in the next section ‘Control and Settings'. Typical software control
screens look like those below.
