Control and Settings (continued)

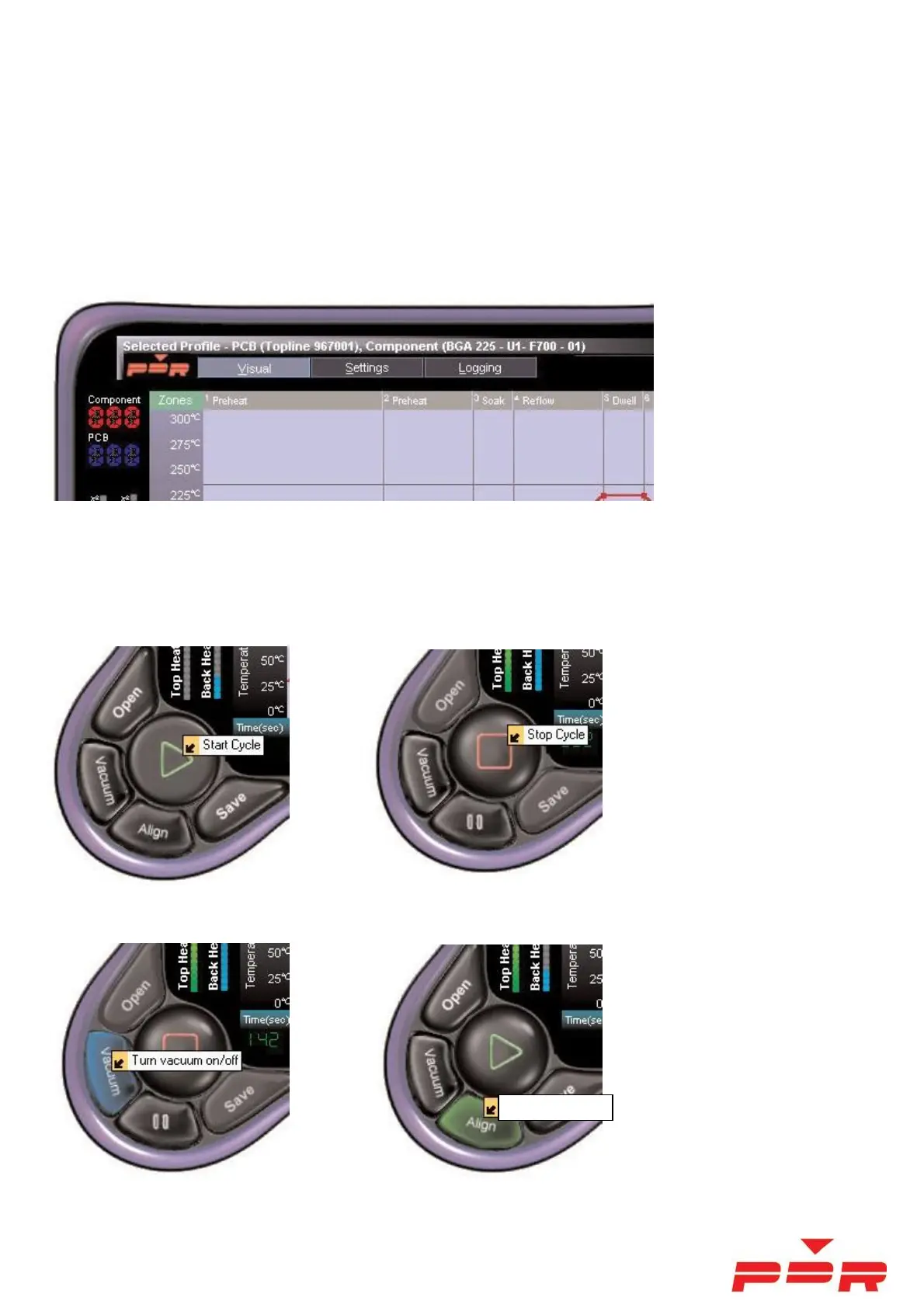

Selected Profile - The software indicates what PCB and component have been selected. The folder name = the PCB
indent. The file name = the profile = component type, ident, location etc.
Folder Name = Topline 967001 (PCB ident)
File name = BGA 225-U1-F700-01.lmd
Starting and Stopping
‘Start’ begins the cycle.
‘Stop’ stops the cycle.
Vacuum and Align
