INTRODUC
TION
The Back-Up Camer
a displays images behind the vehicle, and is used when backing up a vehicle.
When the vehicle is driven in reverse, the camera is activated, which sends a signal to the transmitter.
The transmitter sends a video signal to the monitor, which then displays the view captured by the camera.
FEATURES
x Color monitor displays view from the rear of the vehicle
x Wireless monitor can be suction-mounted to windshield or dash for easy visibility
x Adjustable monitor mounting arm
x Adjustable vertical camera angle
x Weatherproof camera with 110° viewing angle
x Reduces the danger of harm or damage due to unseen objects
x System activates automatically when car is shifted into reverse
8
9
1
7
8c
8b
8f
8a
11
6
4
5
3
2
10
8e
8d

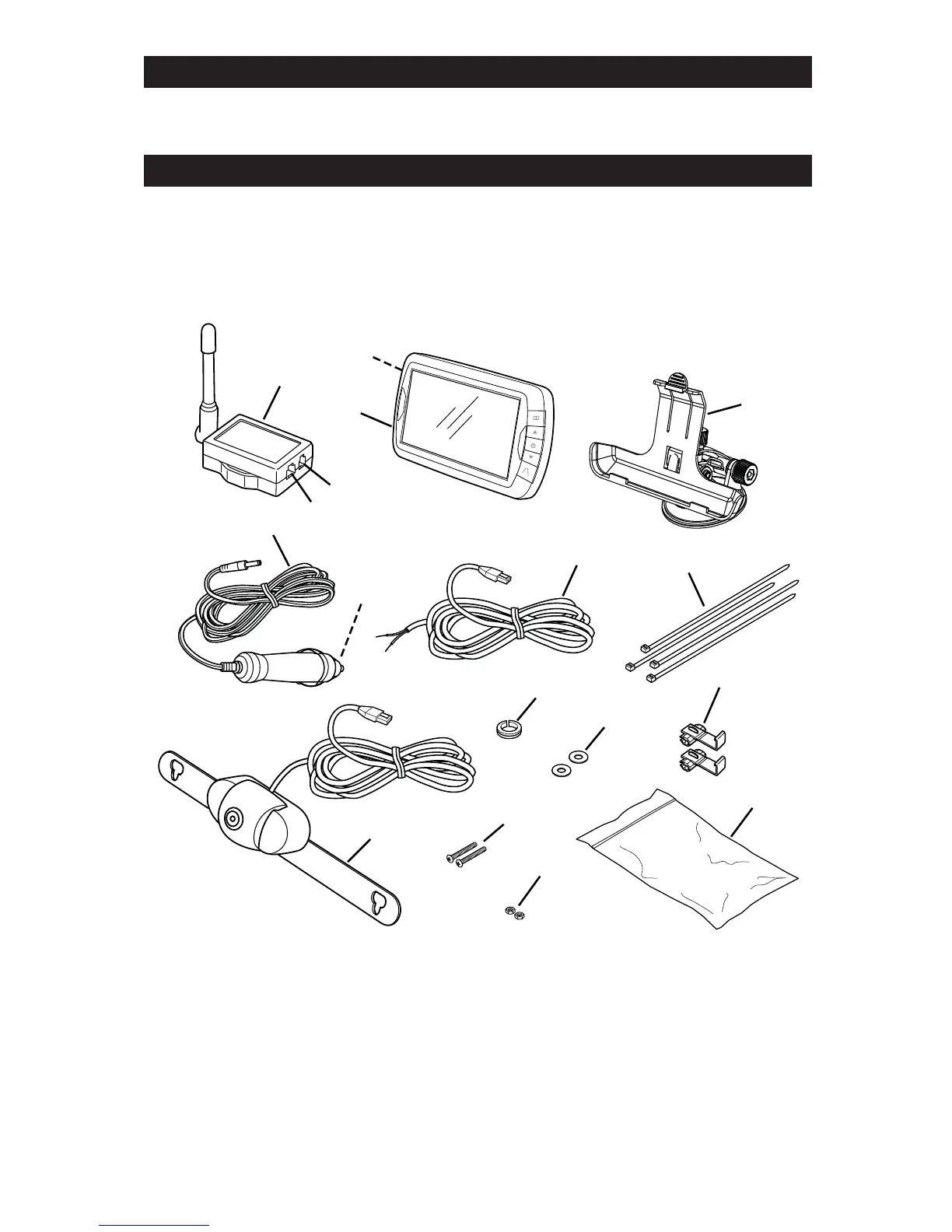

Legend
1.
Transmitter
2. Transmitter Power Port
3. Camera Port
4. Monitor
5. Monitor Power Port
6. Monitor Arm
7. Transmitter Power Cord
8. Hardware Bag
8a) Ties
8b) Plastic
Grommet
8c) Wire Connectors
8d) Screws
8e) Locknuts
8f) Washers
9. Camera
10.
1A Fuse
11. Monitor Cigarette Lighter/
Accessory Socket Power
Cord
