Specifications
MVe
®
Fitness Reformer
Weight: 135 pounds
Length: 103.6 inches
Width: 28.6 inches
Carriage Height: 15.5 inches
Maximum User Weight: 300 pounds
Glossary of Parts

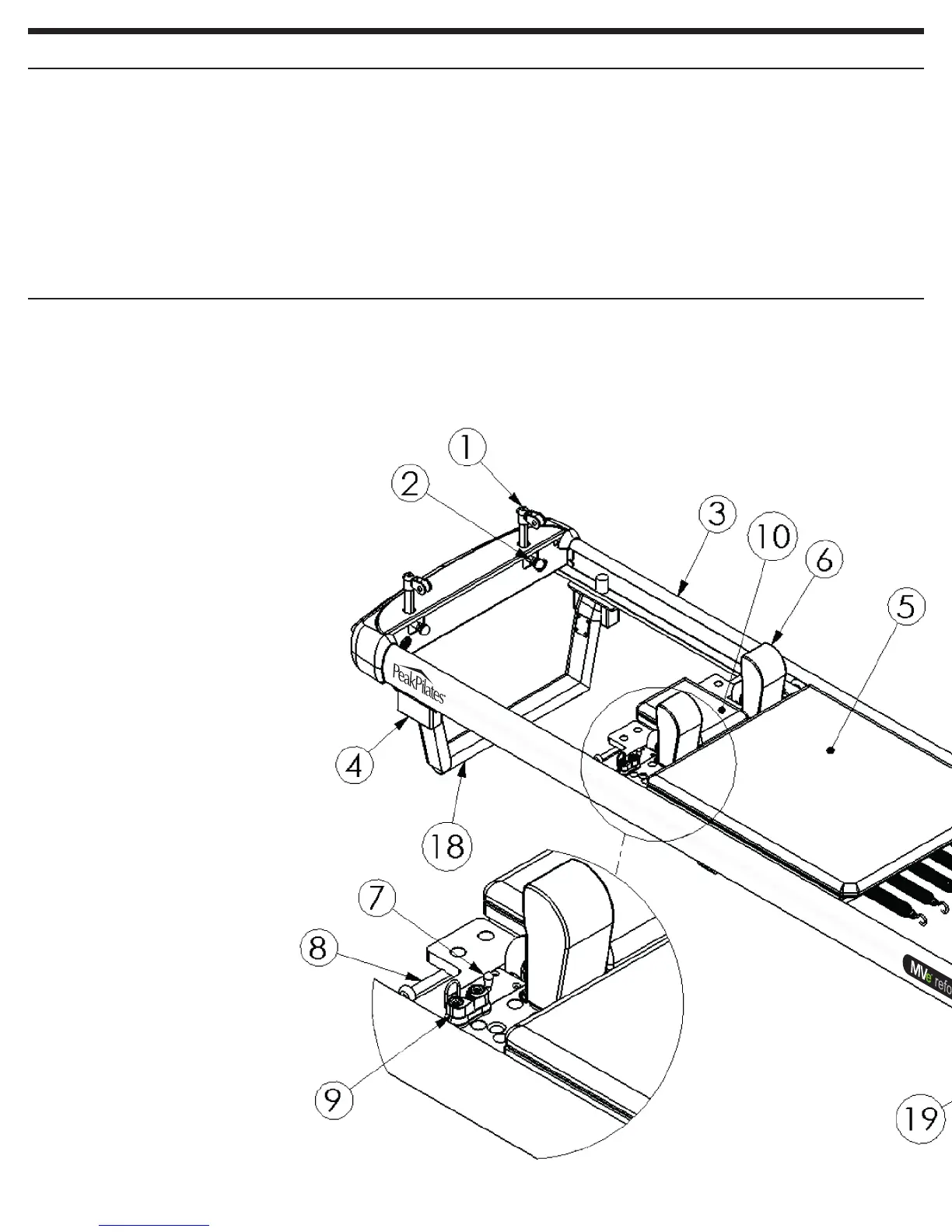

The following is a list of the major components of the MVe Reformer. The number indicates where they are located in the following figure.
Many other parts are shown and described in other sections of this manual.
1. Riser Assembly
2. Riser Assembly Pull Pin
3. Rail
4. Stacking Bumper
5. Carriage
6. Shoulder Pad
7. Shoulder Pad Release Lever
8. Double Loop Storage Post
9. Rope Cleat
10. Head Rest
11. Reformer Springs
12. Telescoping Bumper
13. Lift Handles
14. Footbar
15. Footbar Support Bar
16. Standing Platform
17. Gear Change Bar
18. Head End Leg
19. Foot End Leg
20. Eye Bolts for Foot Strap
4
