Assembly
1. Cut the banding and remove the box lid. Remove all components and accessories and
place to the side.
2. Make sure that there is clear access to an area adjacent to the box and that the area is
large enough for the Frame of the MVe Reformer. The area must be protected so the aluminum
Frame will not be scratched. With one person at each end, lift the unit out of the box using
the Lift Handles and place the frame on the floor.
3. With the help of an assistant, tip the unit onto its side, exposing the underside of the
Frame. One person can hold the machine while the other assembles the Legs.

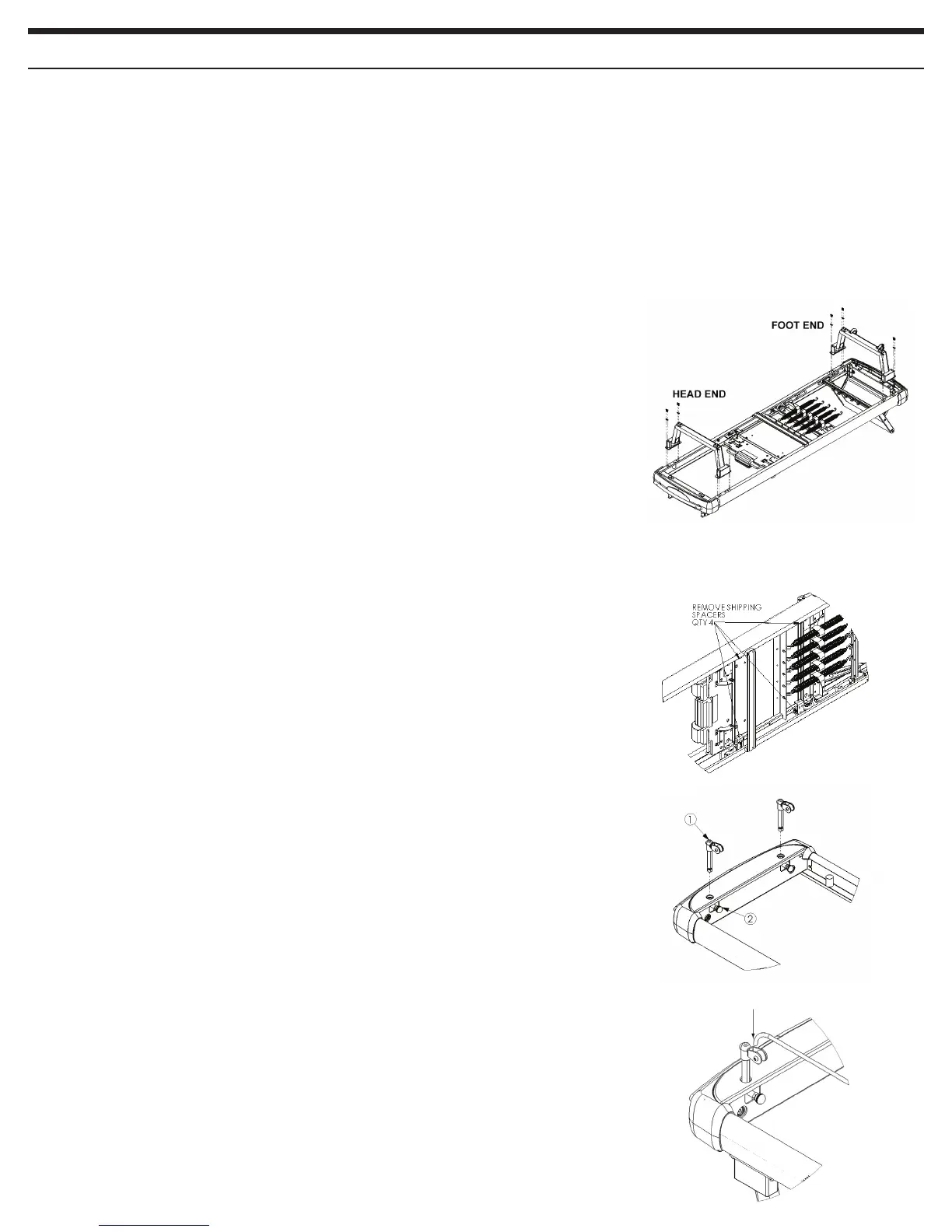

4. Assemble the Foot End and Head End Legs to their respective ends of the Reformer Frame.
Make sure that the Wheels of the Foot End Leg are facing toward the Foot End plastic cap.
Using the provided washers and socket head cap screws, hand tighten all eight screws for
each Leg.
5. Once all screws are started, go back and fully tighten (Torque to 12 ft-lbs or 16 N-m) with
the provided M5 allen wrench.
6. Once the Legs are fully assembled, remove the shipping spacers located between the
frame of the Carriage and the aluminum Rails.
7. With the help of the assistant, turn the unit over onto its Legs.
8. Retract the Riser Pull Pin (2) and insert each Riser (1) into its respective bushing. The two
Riser Assemblies are identical.
9. Feed the free end of each Rope Assembly through the Pulley on the Riser Assembly.
