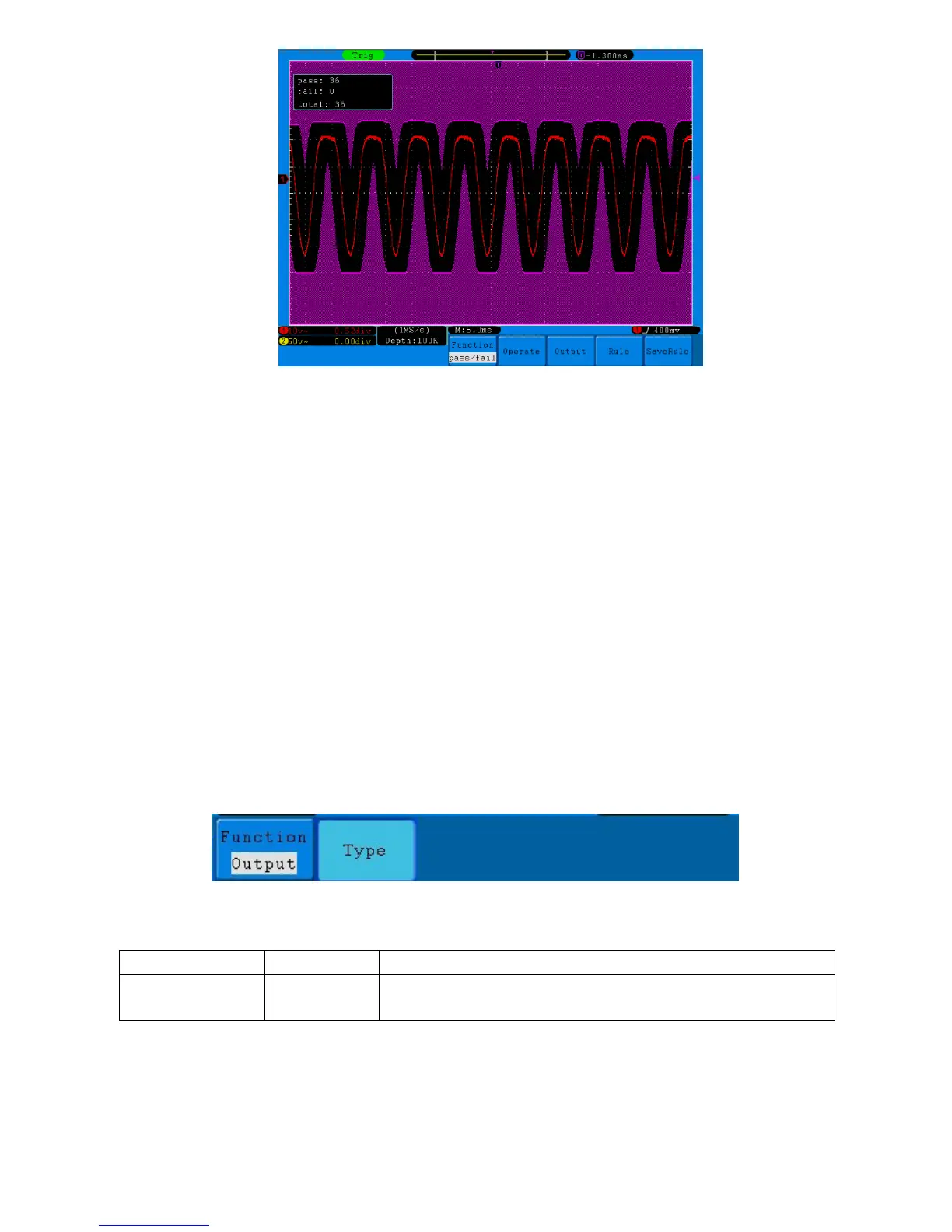

Fig. 58 Pass/Fail test
Note:
1. When Pass/Fail is ON, if XY or FFT is ready to run, then Pass/Fail will be closed; under the mode of XY
or FFT, Pass/Fail is unable.
2. Under the mode of Factory, Auto Scale and Auto Set, Pass/Fail will be closed.
3. When no save setting left in the rule save, tip will be given to show “NO RULE SAVED”.
4. Under the status of stop, data comparing will stop, and when it goes on running, the number of Pass/Fail
will increase from the former number, not from zero.
5. When the waveform playback mode is on, Pass/Fail is used to test the the played-back waveform
specially.
27.2.5. Output
Press the Utility button and turn the M to select the Output to go to the following menu.
Fig. 59 Output menu
The description of Output menu is shown as the follows:
Function Menu Setting Description
Type
Trig level
Pass/fail
Output trig signal synchronously
Output High Level when Pass , and Low Level when Fail
-142-
