27.2.6. LAN Set
Using the LAN port, the oscilloscope can be connected with a computer directly, or through the router to
connect. The network parameters can be set in the menu below.
Press the Utility button and turn the M knob to select the LAN Set to go to the following menu.

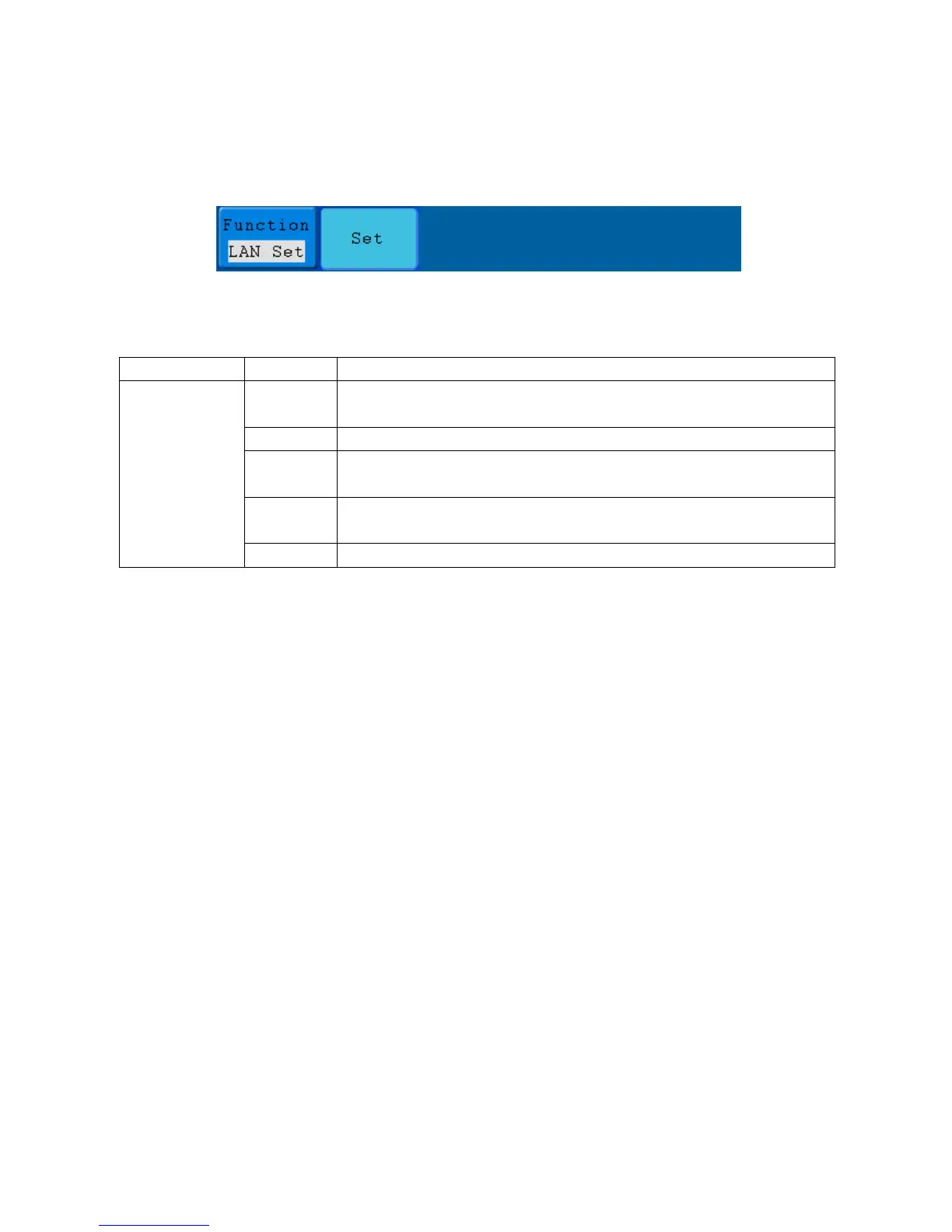

Fig. 60 LAN Set menu
The description of LAN Set menu is shown as the follows:
Function Menu Setting Description
Set
IP
Press F1 button to switch between each byte, turn the M knob to change
value (0 ~ 255)
Port
Turn the M knob to change value (0 ~ 4000)
Netgate
Press F3 button to switch between each byte, turn the M knob to change
value (0 ~ 255)
Phy addr
Press F4 button to switch between each byte, turn the M knob to change
value (0 ~ FF)
Set OK
Press F5 button to confirm, prompt “reset to update the config”
How to connect with a computer directly:
1. Connection. Plug in the LAN line to the LAN port in the right side panel of the oscilloscope; plug the other
end into the interface of the computer.
2. Set the network parameters of the computer. Since the oscilloscope can not support obtaining an IP
address automatically, you should assign a static IP address. Here we set the IP address to 192.168.1.71,
Subnet mask is 255.255.255.0.
-143-
