PeakTech 1240 User Manual

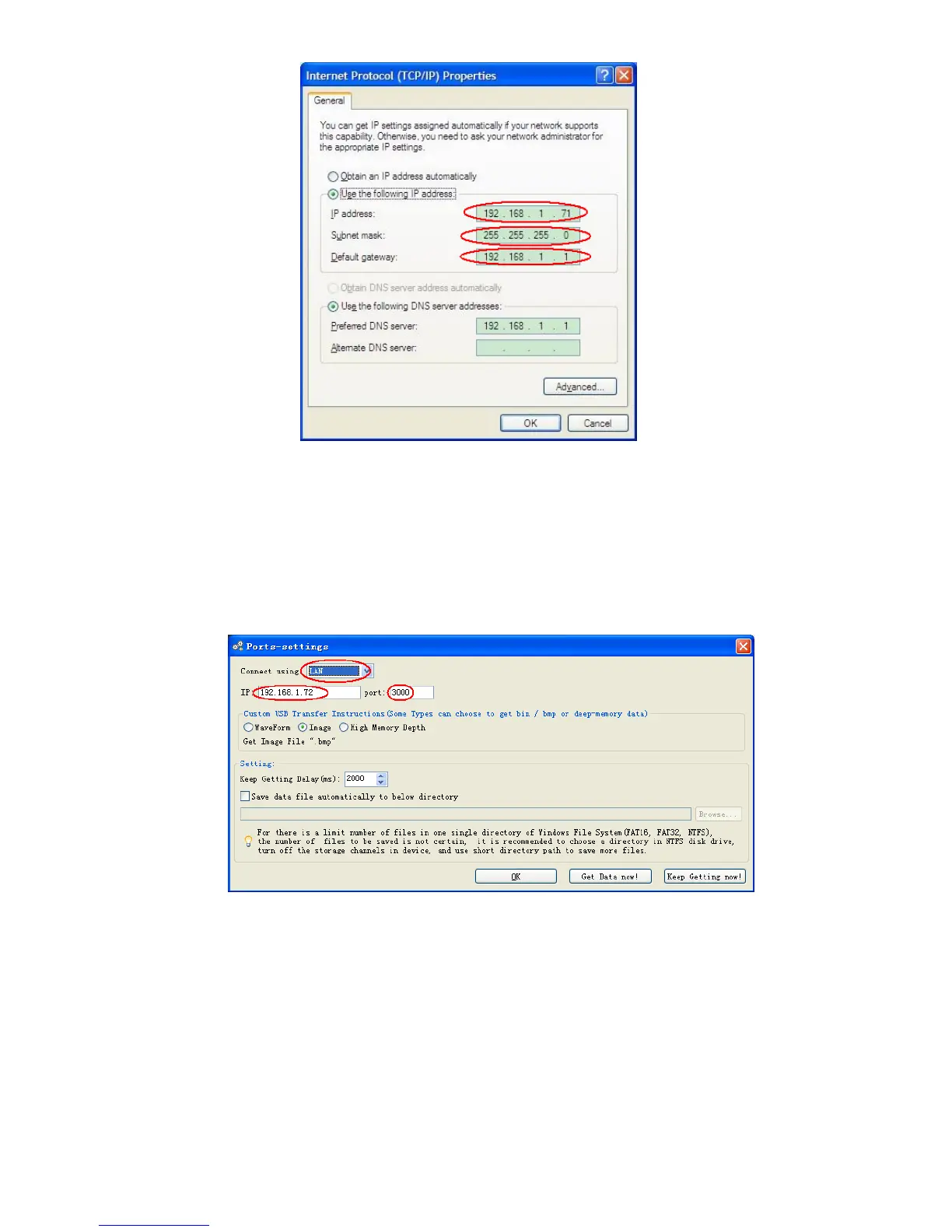

Fig. 64
Set the network parameters of the PeakTech
®
Oscilloscope Software.
Run the software on the computer; choose the “Ports-settings” of the “Communications” menu item. Set
“Connect using” to LAN. About the IP, the first three bytes is same as the IP in the step (2), the last byte should
be different. Here, we set it to 192.168.1.72. The range of the port value is 0 ~ 4000, but the port which under
2000 is always be used, so it is suggested to set it to the value above 2000. Here, we set it to 3000.
Fig. 65
-146-
