PeakTech 1240 User Manual

Set the network parameters of the oscilloscope.

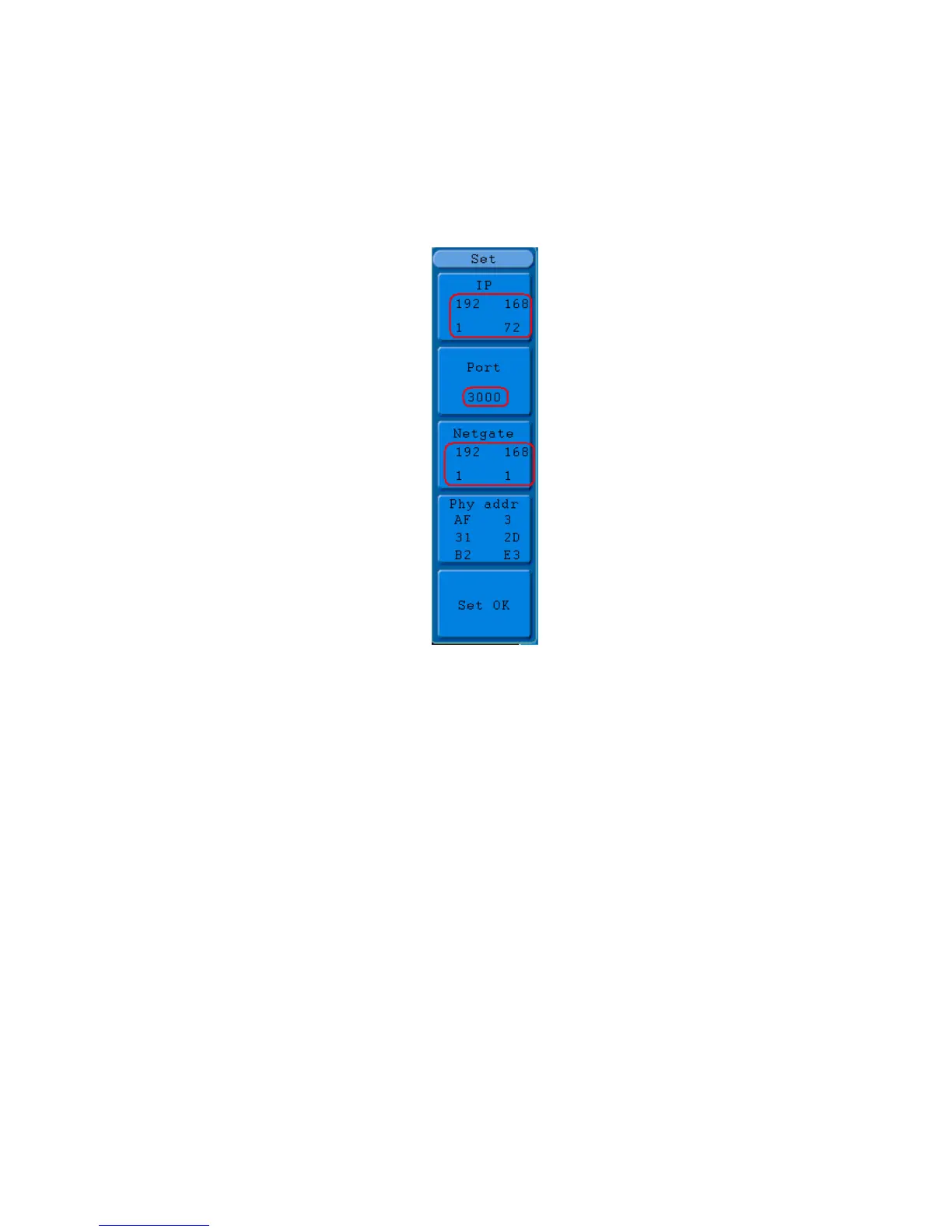

In the oscilloscope, press the Utility button and press H1 button, turn the M knob to select the LAN Set; press
the H2 button, the set menu is displayed on the right. Set the IP and the Port to the same value as the
“Ports-settings” in the software in step (3). The Netgate should be set according to the router. Press the F5
button, it prompts “reset to update the config”. After resetting the oscilloscope, if you can get data normally in
the oscilloscope software, the connection is successful.
Fig. 66
-147-

PeakTech 1240 Specifications

General

Brand	PeakTech
Model	1240
Category	Test Equipment
Language	English
