PeakTech 1565 User Manual

Method B:

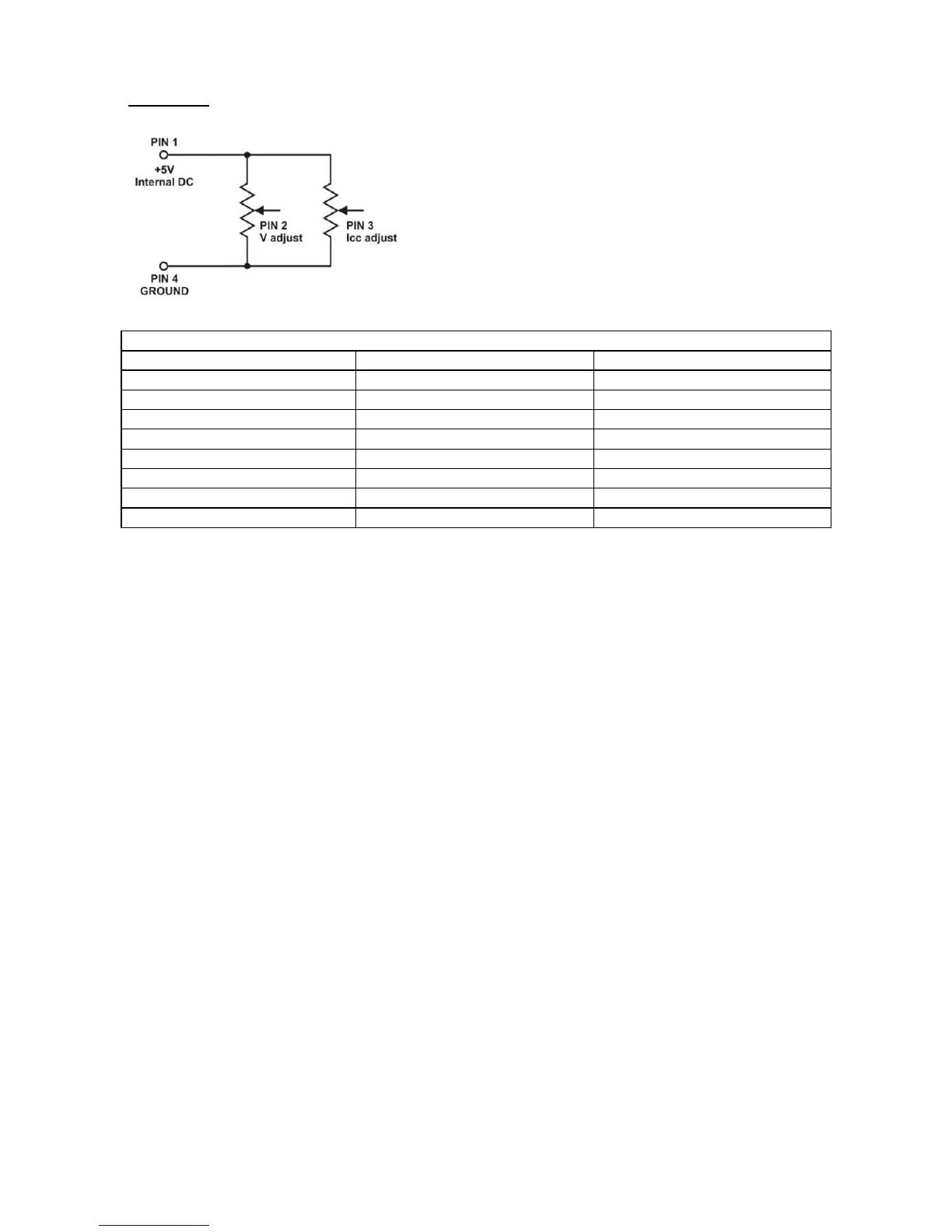

Using two 0-5K Ohm variable resistors
Remark: variable resistors 5KOhm
Remote Socket Pin Assignment for variable resistor
PIN
Functions
Remarks
1
Internal DC +5V
Resistor end
2
Voltage Adjust
Variable part of resistor
3
Current Adjust
Variable part of resistor
4
Ground
Another resistor end
5
Output OFF
Short to Ground
6
N.A.
7
N.A.
8
N.A.
CC current setting by remote control.
Short circuit the main output with 12AWG (3,3mm
2
) wire.
Adjust the CC current setting using the 0-5k Ohm variable resistor.
Output voltage setting by remote control
Check the output voltage range of the power supply by adjusting the 5Kohm variable resistor.
-45-
