MAN 06 033774 – technical_guide_ DIRIS_A40_A41_C.doc40/Z41 - B 5/27

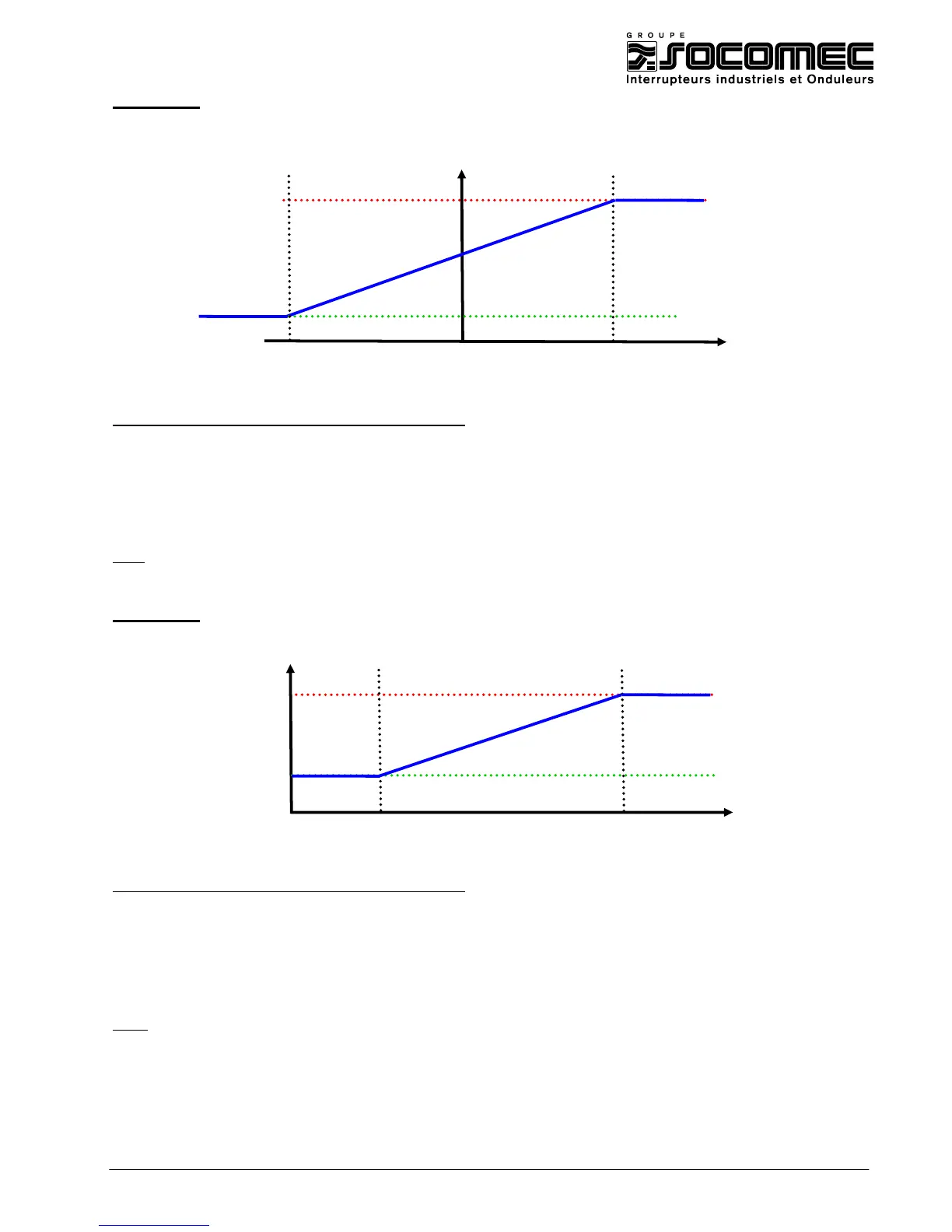

Example 3 : Configuration of output 2 on total active power
P with -1000kW at 4mA and
1000kW at 20mA.
DIRIS configuration (see instruction manual: 876 586):
Analogue output type = Out 2 20mA TYPE = 4/20 (4 to 20mA)
Analogue output allocation = Out 2 20mA PAR = P (total active power)
Value at 4mA = Out 2 20mA LV = 1000 kW (-1000kW)
Value at 20mA = Out 2 20mA HV = 1000 kW (1000kW)
Note: To use the analogue output with positive and negative values at the same time, it is necessary to program identical values
for LV and HV.
Example 4: Configuration of output 3 on frequency F with 45Hz at 4mA and 55Hz at 20mA.
DIRIS configuration (see instruction manual: 876 586):
Analogue output type = Out 2 20 mA TYPE = 4/20 (4 to 20mA)
Analogue output allocation = Out 2 20 mA PAR = F (frequency)
Value at 4 mA = Out 2 20 mA LV = 4500 (45Hz)
Value at 20 mA = Out 2 20 mA HV = 5500 (55Hz)
Note: For the frequency, the values for 4mA and 20mA must be programmed on 4 digits; therefore, for 45Hz enter
the value 4500.
