Pearson OpScan iNSIGHT 70 - Typical Standalone Configuration

Scanner Overview
Typical Standalone Configuration
1-3
Typical Standalone Configuration
Figure 1-2 illustrates the components of a typical standalone OpScan iNSIGHT 70
scanner configuration. The form’s image is sent from the OpScan iNSIGHT 70
scanner to the computer for processing.

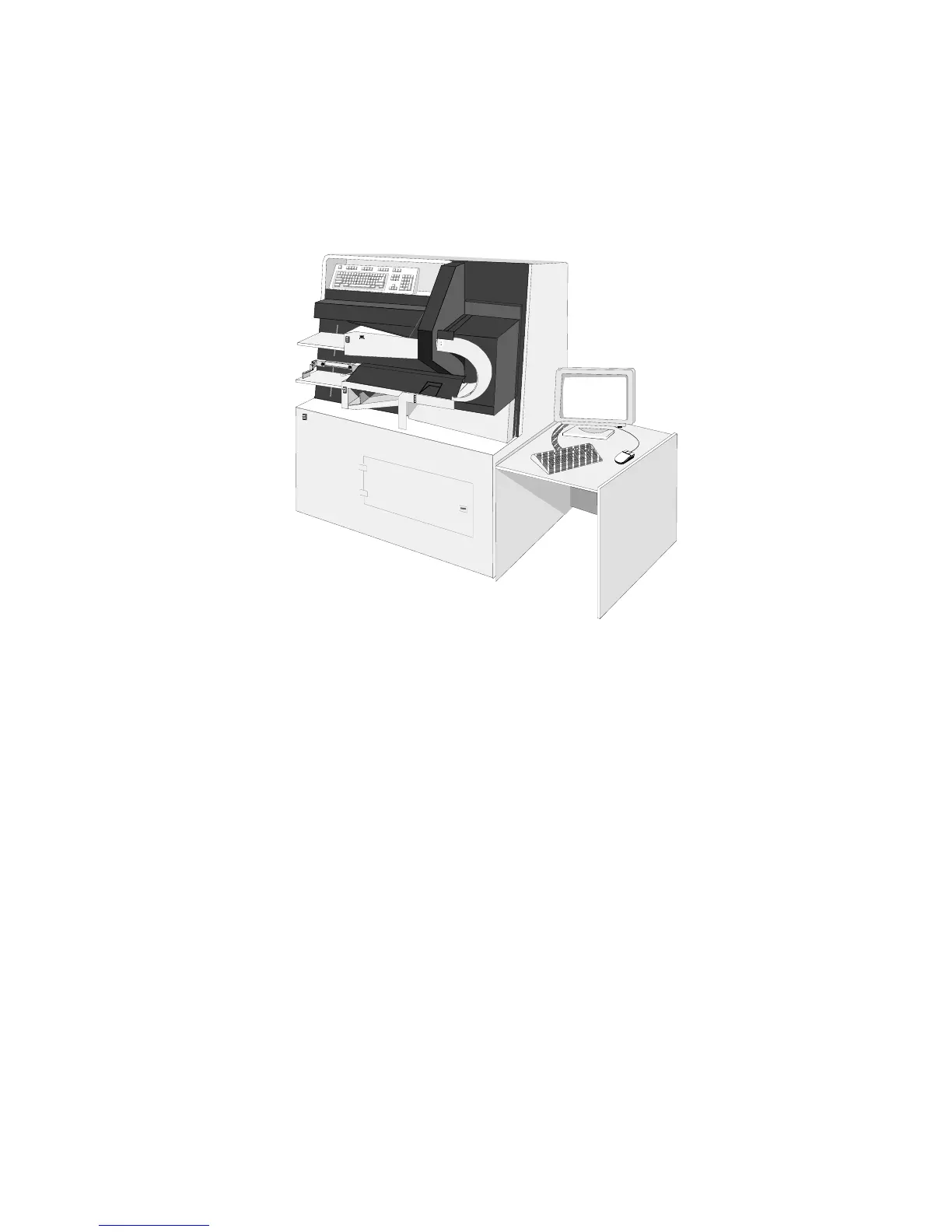

Figure 1-2 Scanner Standalone Configuration
