Peavey 6505 PIRANHA

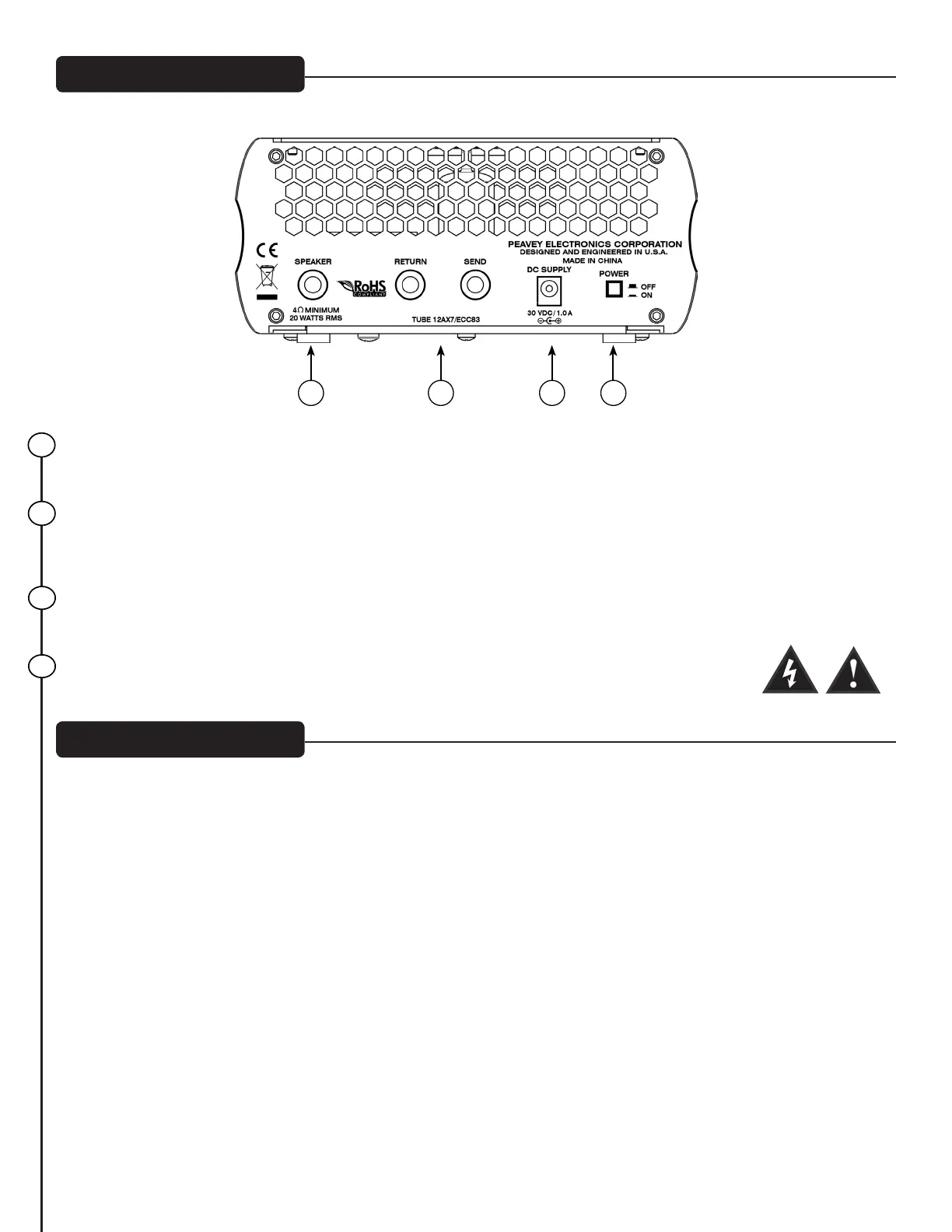

Rear Panel
Product Specifications
8
9
10
11
8 9 10 11
SPEAKER - is ¼” mono jack is provided for connection of an external speaker cabinet. Minimum load im-
pedance is 4 Ohms.
EFFECTS LOOP SEND and EFFECTS LOOP RETURN
1/4” output jack for supplying signals to external eects or signal processing equipment and 1/4” input for re-
turning signals from external eects or signal processing equipment.
DC SUPPLY - is jack is provided for connection of the included +30VDC power supply. NOTE: PLEASE
USE ONLY THE SUPPLIED POWER ADAPTOR (Peavey #30908151) TO POWER YOUR 6505 PIRANHA.
POWER - is switch applies or removes DC power to the internal circuitry.
Power Amplier Section:
Rated Power & Load: 20W(rms) into 4 Ohms; 15W(rms) into 8 Ohms; 10W(rms) into 16 Ohms
DC Supply (included): +30VDC @ 1ADC (positive tip); Peavey part #30908151
Preamp Section:
Specs are measured @ 1kHz with all controls set halfway (12 o’clock) on CRUNCH setting
Input:
Impedance: 1M Ohms; Nominal Input Level: -20dBV, 100mV(rms)
Eects Loop Send:
Load Impedance: 10k Ohms or greater; Nominal Output Level: 0dBV, 1.0V(rms)
Eects Loop Return:
Impedance: 1M Ohms; Designed Input Level: 0dBV, 1.0V(rms)
(Switching jack provides preamp output to power amp input connection when not used)
Aux Input:
Nominal Input Level: 0dBV, 1.0V(rms)
Dimensions & Weight:
5.2” (132mm) L x 7.0” (178mm) W x 3.2” (82mm) H;
2.5 lbs (1.13 kg)
NOTE: Specications are subject to change without notice.
