Peavey AAM 802

AAM
™
802/1602 Compact Console
The all new AAM 802/1602 Series mixer is a compact unit that can be used in sound reinforcement
or recording applications. Its low noise design and extensive list of features make it the ideal mixing
console for almost any application.
NOTE: This manual covers all AAM 802/1602 Series mixers. Differences in the two models are
noted where applicable.
GENERAL DESCRIPTION:
The AAM 802/1602 Series mixers share the same master section. The various models provide
different channel configurations in order to suit the needs of the user. The following features are
found throughout the series.
FEATURES:
• Balanced (XLR) and Unbalanced (1/4") Left and Right Outputs (mains)
• Balanced (XLR) and Unbalanced (1/4") Mon 1 and 2 Outputs (monitors)
• Balanced (XLR) and Unbalanced (1/4") Mono Outputs (mono mains)
• Two Effects Sends (1 and 2) each with stereo Returns (L and R)
• Mic (XLR) and Line (1/4") Inputs for all input channels
• Insert jacks (1/4") on all input channels except Super and Stereo input channels
• Pad and Polarity switches on Super Mic input channels
• Stereo (L and R) line inputs (1/4") on Stereo input channels
• PFL function on all input channels and on Monitor 1 and 2
• Low noise mic preamps on all input channels
• Mute/Peak and Signal/PFL indicators on all input channels and on Monitor 1 and 2
• Stereo LED level indicators for L/R mains
• Mute switch and 3-band EQ on each input channel
• Sweepable mid-EQ control on all input channels (except Stereo channels)
• Seperate Mic and Line Gain controls on Stereo Channels
• Stereo RCA Tape In/Out Jacks
• Stereo Headphone Output with level control
• Switchable, global +48 V Phantom Power with LED indicator
POWER
This section describes the application of power to your AAM 802/1602 mixer. Please note all caution
signs for your safety as well as your equipment. The following features are found on the rear
panel of the unit unless otherwise noted.

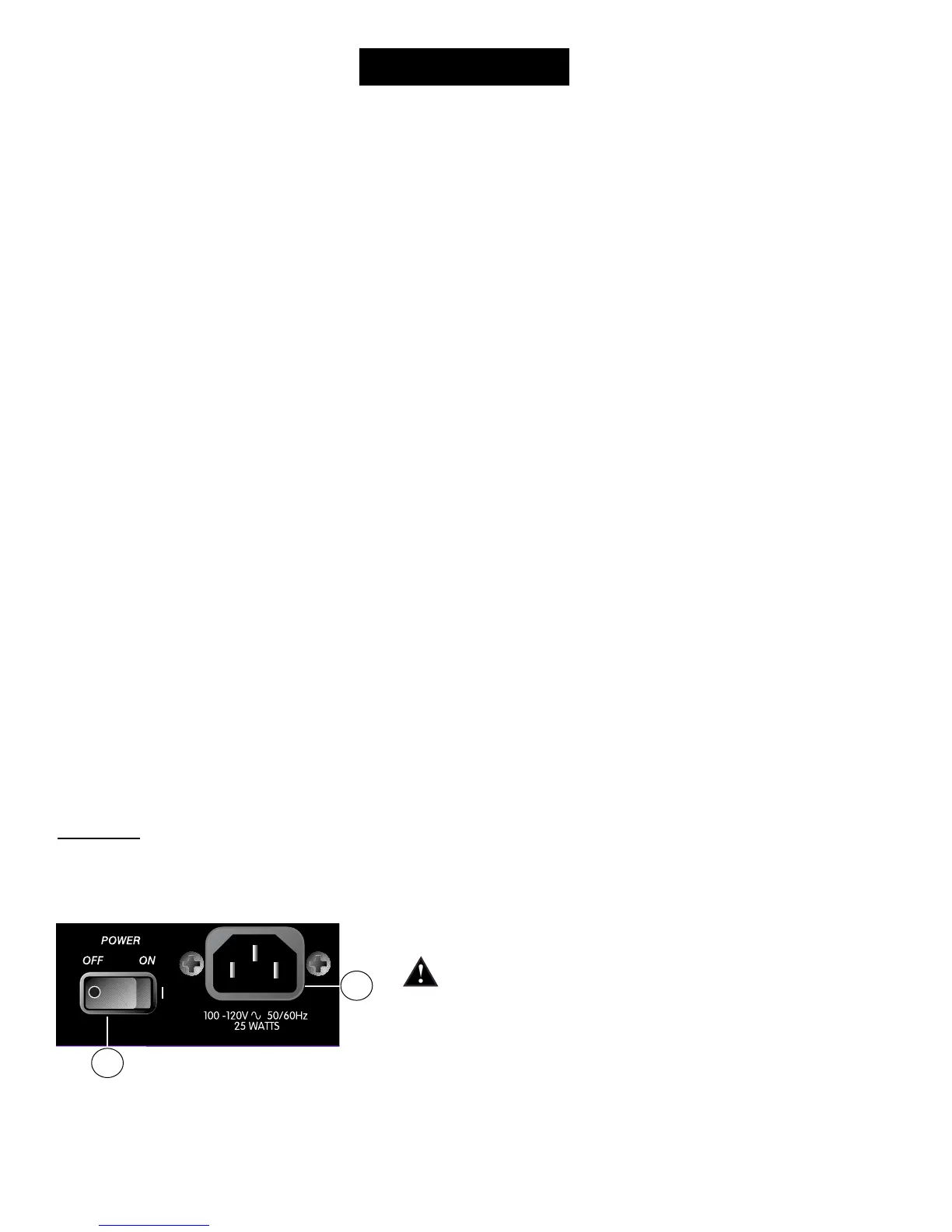

1. Removable AC Power Cord
This receptacle is for the IEC line cord (included),
which provides AC power to the unit. Connect the
line cord to this connector and to a properly
grounded AC supply. Damage to the equipment may
occur if an improper line voltage is used. (See
voltage marking on unit.) Never remove or cut the
ground pin of the line cord plug. This unit is supplied with a properly rated line cord. When lost or
damaged, replace this cord with one of the proper ratings. NOTE: FOR UK ONLYAs the colors
of the wires in the mains lead of this apparatus may not correspond with the colored markings
identifying the terminals in your plug, proceed as follows: (1) The wire which is colored green and
