16. HEADPHONE OUTPUT:
This stereo jack (TRS) provides the signal to drive stereo headphones. The level is set by the
Headphone Level control (17). Tip= Left, Ring= Right, Shield= Ground.
17. HEADPHONE/PFL LEVEL:
Adjusts the level of the Headphone Output. The source changes from the L-R output to the
PFL mix whenever the PFL is active.
18. PFL ACTIVE:
This LED blinks when the PFL is active and its signal is overriding the standard L-R mix in
the Headphone and at the L/R meters. The signals that are present in the PFL mix can be
located by the individually illuminated channel PFL LEDs.

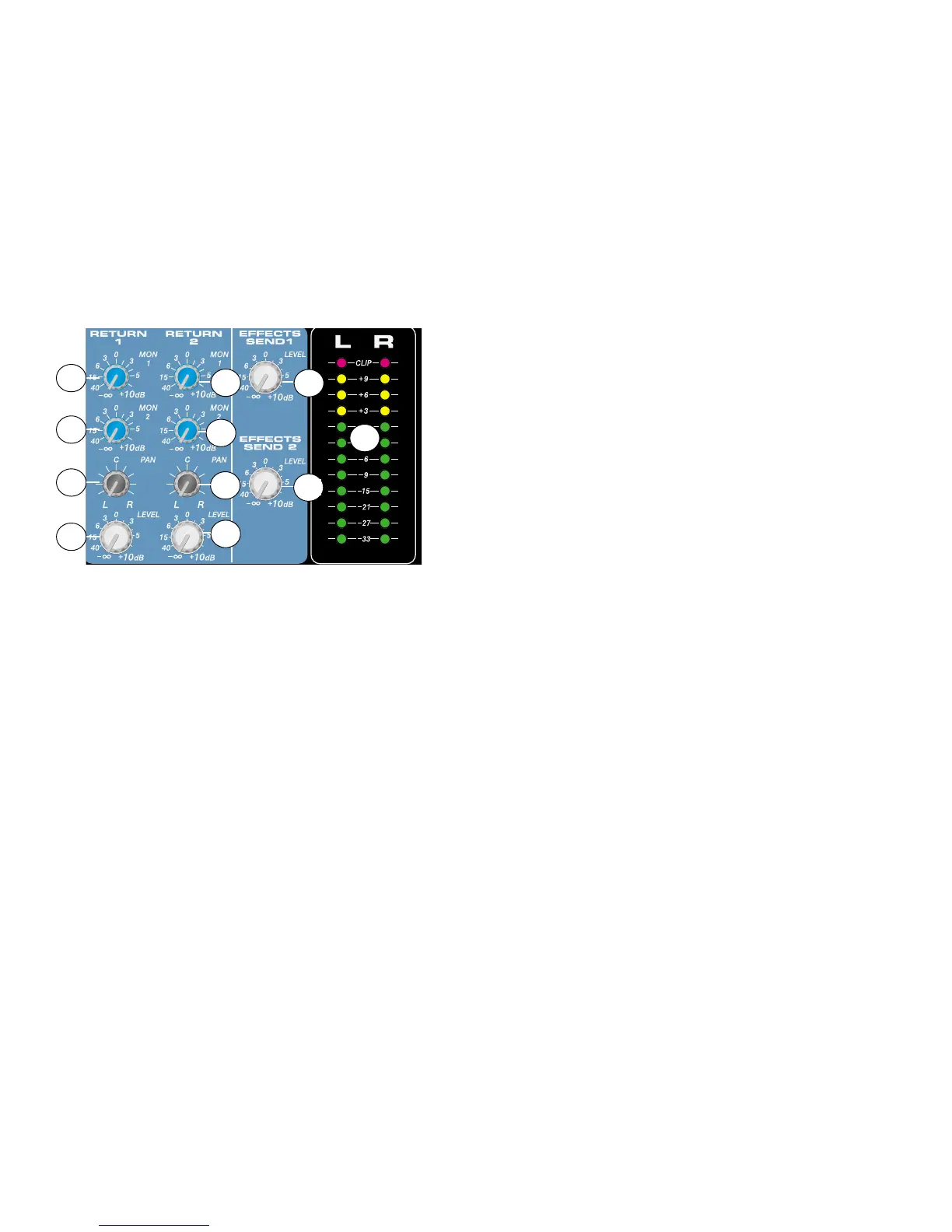

19. RETURN 1 TO MONITOR 1:
Sets the level of the Return 1 signal (effects)
that is added to the Monitor 1 mix. This is a
mono mix of the left and right signals.
20. RETURN 1 TO MONITOR 2:
Sets the level of the Return 1 signal (effects)
that is added to the monitor 2 mix. This is a
mono mix of the left and right signals.
21. RETURN 1 PAN:
Sets the Return1 position in the L-R stereo
field.
22. RETURN 1 TO L/R:
Sets the level of the Return 1 signal that is added to the L/R mix.
23. RETURN 2 TO MONITOR 1:
Sets the level of the Return 2 signal (effects) that is added to the Monitor 1 mix. This is a
mono mix of the left and right signals.
24. RETURN 2 TO MONITOR 2:
Sets the level of the Return 2 signal (effects) that is added to the monitor 2 mix. This is a
mono mix of the left and right signals.
25. RETURN 2 PAN:
Sets the Return 2 position in the L-R stereo field.
26. RETURN 2 TO L/R:
Sets the level of the Return 2 signal that is added to the L/R mix.
27. EFFECTS 1 SEND:
Adjusts the level of the Effects 1 mix sent to the Effects 1 Output (5). Unity gain is at the
center detent position and +10 dB of gain in maximum.
28. EFFECTS 2 SEND:
Adjusts the level of the Effects 2 mix sent to the Effects 2 Output (5). Unity gain is at the
center detent position and +10 dB of gain in maximum.
