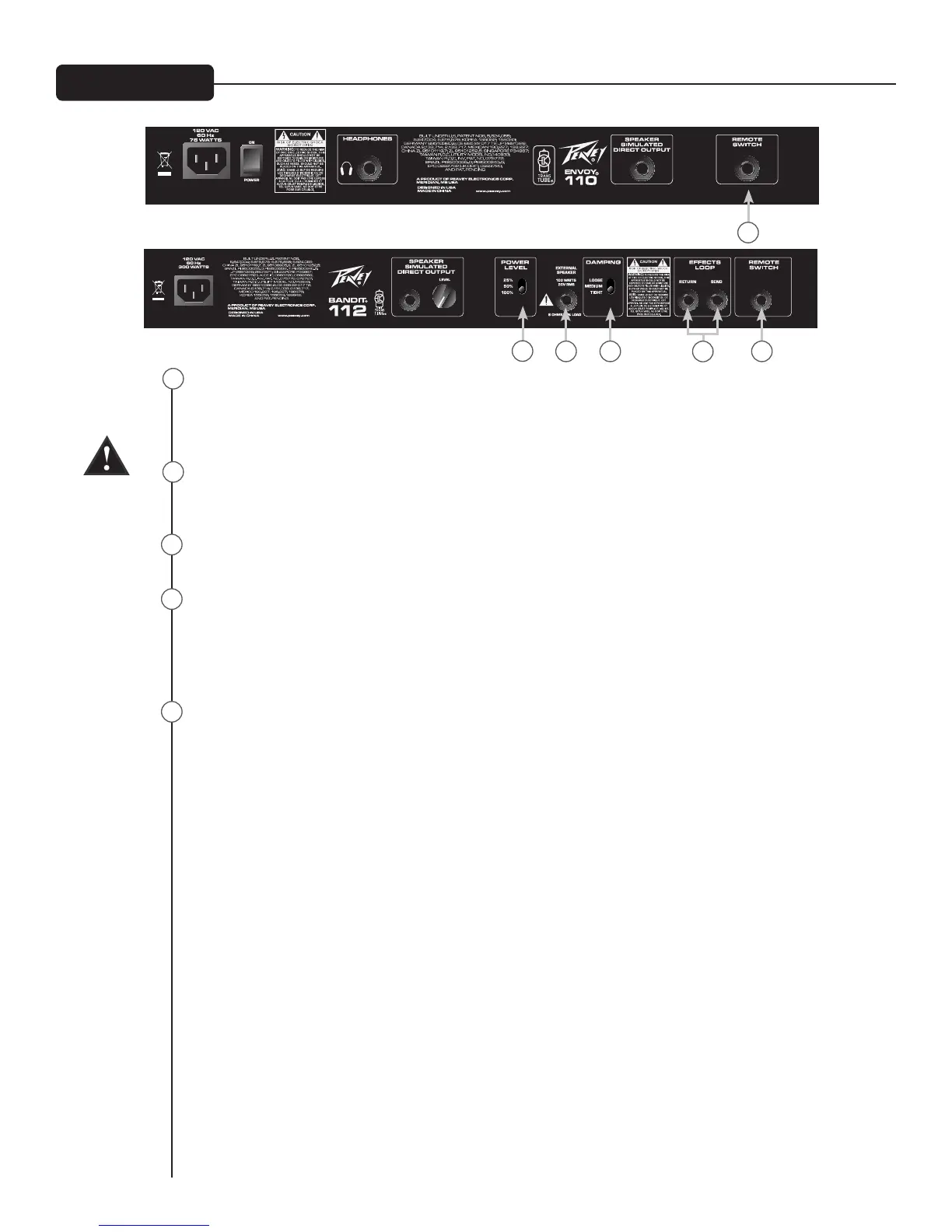

Rear Panel
POWER LEVEL (Bandit 112 ONLY)
This switch provides three power level options: 25%, 50% and 100%. This circuit is actually a patented
tube power amplier simulator that "squashes" the signal. Use as desired for different playing environ-
ments, for example an apartment at 25% or live big at 100%.
EXTERNAL SPEAKER JACK (Bandit 112 ONLY)
This 1/4” jack is provided for the connection of an external speaker cabinet. The minimum external
speaker impedance is 8 ohms.
DAMPING (Bandit 112 ONLY)
This three position switch offers damping level adjustment; loose, medium and tight.
EFFECTS LOOP (Bandit 112 ONLY)
This pair of mono 1/4” jacks provides an effects SEND and RETURN path for the preamp signal. Connect
the SEND jack to the input of an external, low-level, signal processing effects unit. Return the signal
from your external effects unit to the RETURN jack. This setup is known as an Effects Loop since the
signal exits your amp (send) and loops (return) back to it.
REMOTE SWITCH
The multi-functional remote footswitch is used to select between the Clean and Lead channels as well as
to boost the volume.
NOTE: On both units, the Channel Select Switch (6) must be in the LEAD position for the Remote Switch
to work.
