Peavey IRM 8150 - Page 13

13
CHANNEL INPUT MAX (1/4") (+ 26 dBV)
CHANNEL INPUT MINIMUM (1/4") (-20 dBV)
CHANNEL INPUT NOMINAL (1/4") (0 dBV)
CHANNEL INPUT MINIMUM (XLR) (GAIN -40 dBV)
MAIN, MON, TAPE, AUX OUTPUTS (-0 dBV) NOMINAL
30 20 10
0
-10 -20 -30 -40 -50 -60 -70
dBV
FLAT
CHANNEL
EQ
-12 dBV
CUT
+12 dBV
BOOST
50 HZ &10 kHz
CHANNEL INPUT NOMINAL (XLR) (GAIN -20 dBV)
CHANNEL INPUT MAX (XLR) (+6 dBV)
HEADROOM (MAIN, MONITOR, TAPE, AUX) (+18 dBV) NOMINAL
AUX INPUT LEVEL (0 dBV) NOMINAL
FLAT
CHANNEL
EQ
-12 dBV
CUT
+12 dBV
BOOST
600 Hz
MAIN, MON, TAPE, AUX OUTPUTS (+18 dBV) MAXIMUM
GRAPHIC INPUT/OUTPUT LEVELS (+19 dBV) MAXIMUM
GRAPHIC INPUT/OUTPUT LEVELS (+0 dBV) NOMINAL
FLAT
GRAPHIC
EQ
-12 dBV
+6 dBV
AUX INPUT LEVEL (+7 dBV) MAXIMUM
AUX INPUT LEVEL (-15 dBV) MINIMUM
TAPE INPUT LEVEL (+11 dBV) MAXIMUM
TAPE INPUT LEVEL (+4 dBV) NOMINAL
TAPE INPUT LEVEL (-10 dBV) MINIMUM
POWER AMP OUTPUT (+27 dBV) (150 W @ 4 OHMS)
POWER AMP INPUT SENSITIVITY (0 dBV) NOMINAL
IRM
™

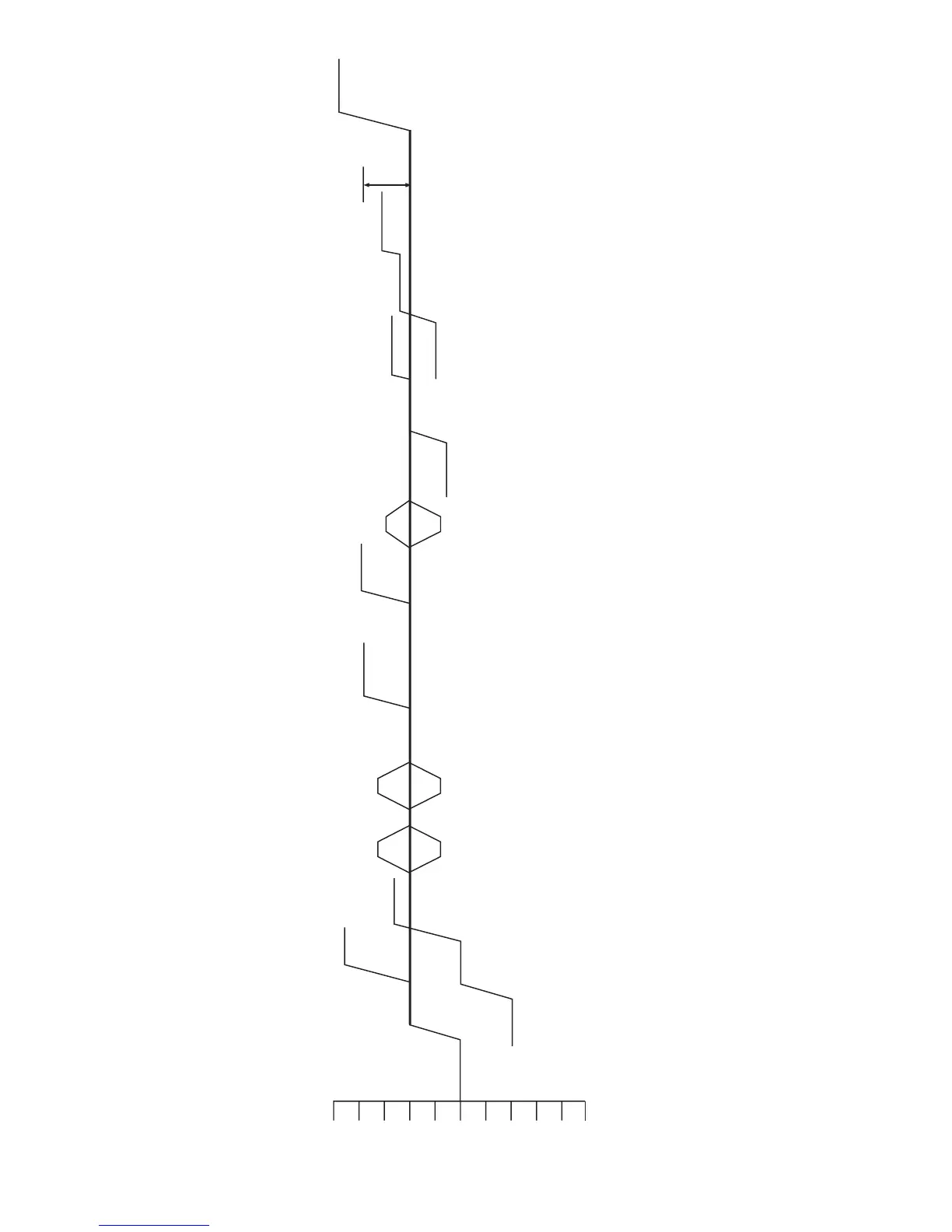

8150 LEVEL CHART
