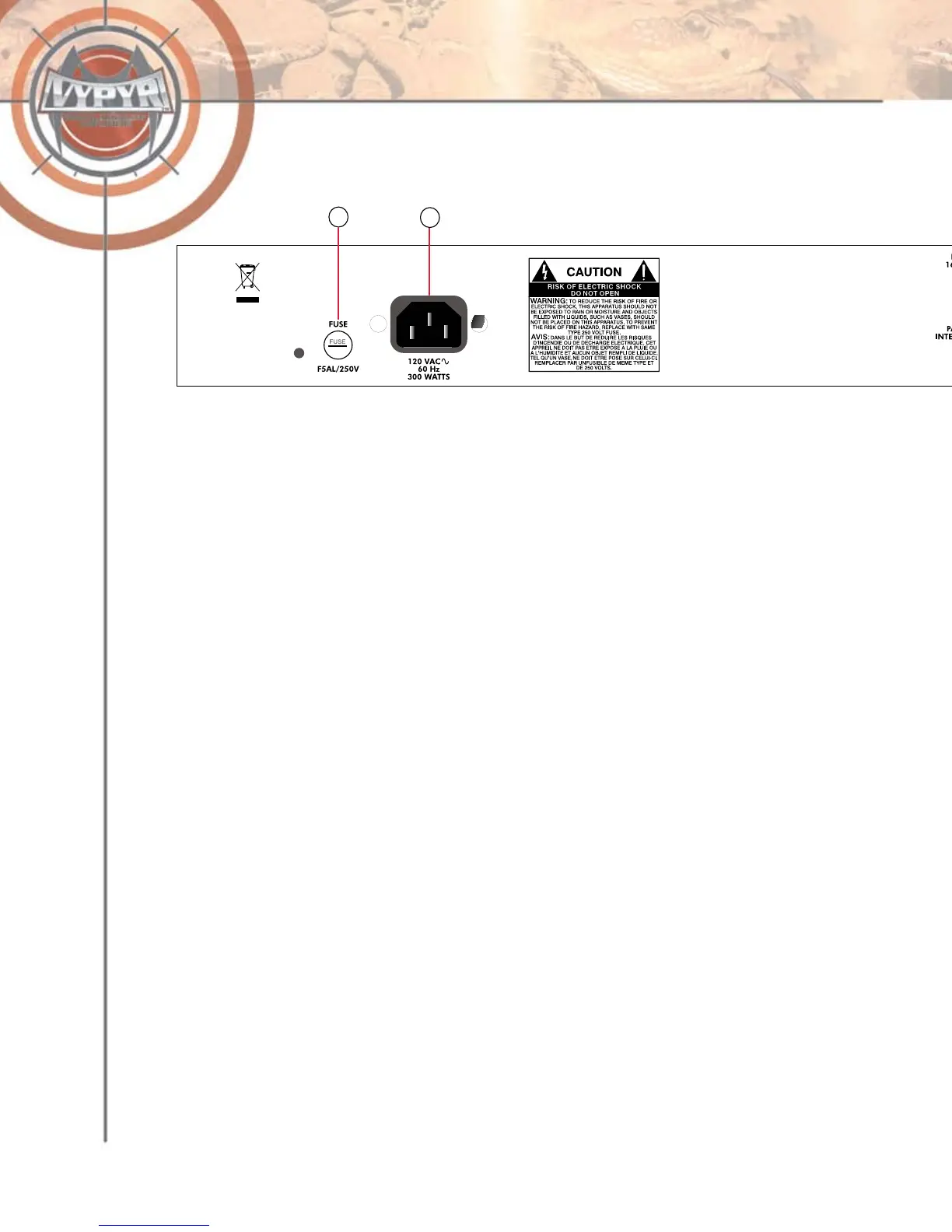

Rear View
0. Fuse
-
1. IEC Inlet
U.S. Domestic AC Mains Cord
The mains cord supplied with the unit is a heavy-duty, three conductor type with a conventional
be used and the third wire grounded properly. All apparatus with class 1 construction shall be con-
nected to a mains socket with a protective earthing connection.
-
sion cords should be avoided but, if necessary, always use a three wire type with at least #14 AWG
-
low must be connected to the terminal that is marked by the letter E, the earth symbol, colored green
-
