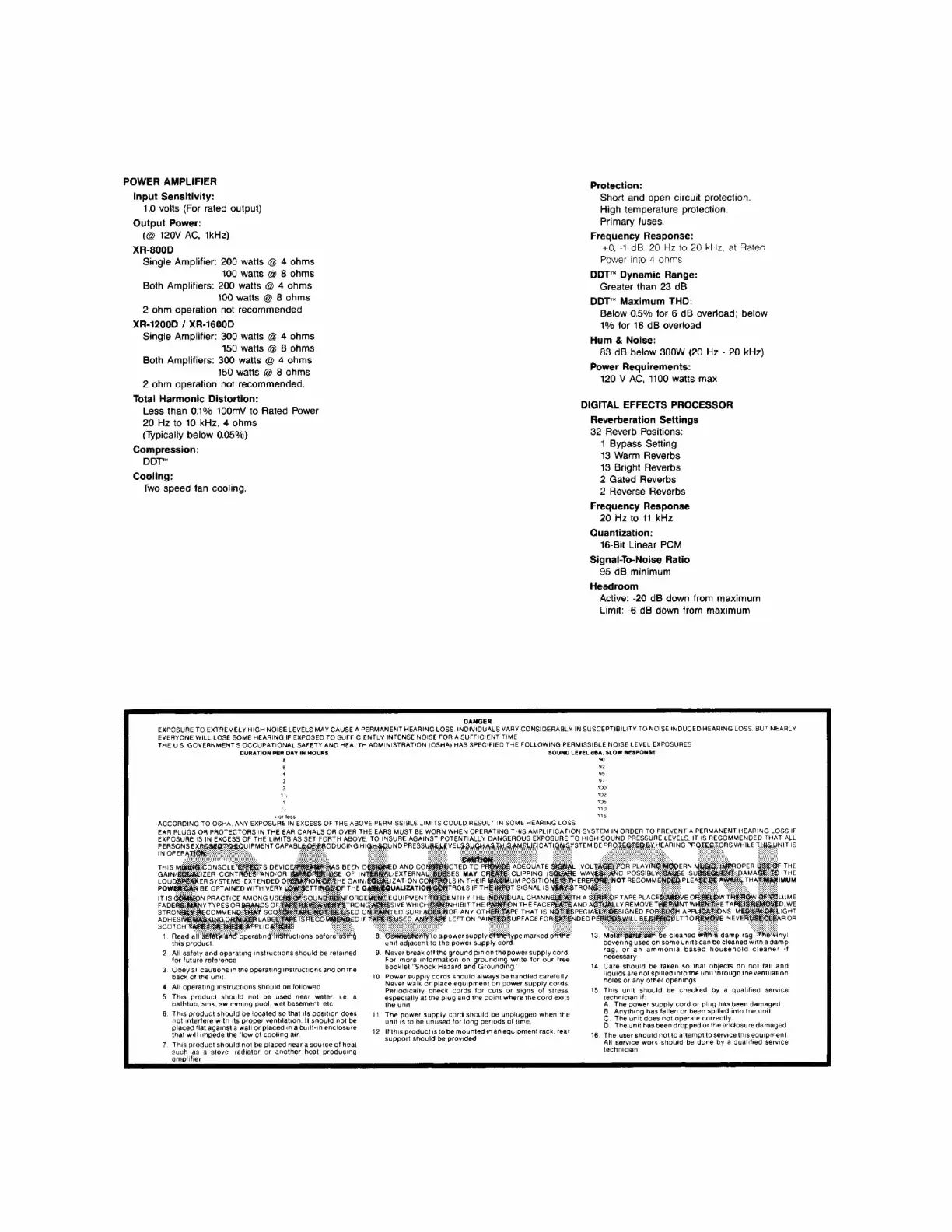

Peavey XR 1600D User Manual

POWER AMPLIFIER
Input Sensitivity:
1.0 volts (For rated output)
Output Power:
(@ 120V AC, 1kHz)
XR-800D
Single Amplifier: 200 watts € 4 ohms
100 watts @ 8 ohms
Both Amplifiers: 200 watts @ 4 ohms
100 watts @ 8 ohms
2 ohm operation not recommended
XR-1200D / XR-1600D
Single Amplifier: 300 watts @ 4 ohms
150 watts € 8 ohms
Both Amplifiers: 300 watts @ 4 ohms
150 watts (2 8 ohms
2 ohm operation not recommended.
Total Harmonic Distortion:
Less than 0.1% $00mV to Rated Power
20 Hz to 10 kHz, 4 ohms
(Typically below 0.0596)
Protection:
Short and open circuit protection.
High temperature protection.
Primary fuses.
Frequency Response:
+0, -1 dB. 20 Hz to 20 kHz, at Rated
Power into 4 ohms
DDT" Dynamic Range:
Greater than 23 dB
DDT™ Maximum THD:
Below 0.5% for 6 dB overload; below
1% for 16 dB overload
Hum & Noise:
83 dB below 300W (20 Hz - 20 kHz)
Power Requirements:
120 V AC, 1100 watts max
DIGITAL EFFECTS PROCESSOR
Reverberation Settings
32 Reverb Positions:
NN 1 Bypass Setting
Cc :
pedal
13
Warm
Reverbs
13 Bright Reverbs
2 Gated Reverbs
2 Reverse Reverbs
Frequency Response
20 Hz to 11 kHz
Quantization:
16-Bit Linear PCM
Signal-To-Noise Ratio
95 dB minimum
Headroom
Active: -20 dB down from maximum
Limit: -6 dB down from maximum
Cooling:
Two speed fan cooling.
DANGER
EXPOSURE TO EXTREMELY HIGH NOISE LEVELS MAY CAUSE A PERMANENT HEARING LOSS. INDIVIDUALS VARY CONSIDERABLY IN SUSCEPTIBILITY TO NOISE INDUCED HEARING LOSS. BUT NEARLY
EVERYONE WILL LOSE SOME HEARING IF EXPOSED TO SUFFICIENTLY INTENSE NOISE FOR A SUFFICIENT TIME
THE US GOVERNMENT S OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION (OSHA} HAS SPECIFIED THE FOLLOWING PERMISSIBLE NOISE LEVEL EXPOSURES
DURATION PER DAY IN HOURS SOUND LEVEL dBA. SLOW RESPONSE
8 90
92
95
97
190
Y: 102
1 195
è 110
4 9f less 115
ACCORDING ТО OSHA, ANY EXPOSURE IN EXCESS OF THE ABOVE PERMISSIBLE .IMITS COULD RESULT IN SOME HEARING LOSS
EAR PLUGS OR PROTECTORS IN THE EAR CANALS OR OVER THE EARS MUST BE WORN WHEN OPERATING THIS AMPLIFICATION SYSTEM IN ORDER TO PREVENT A PERMANENT HEARING LOSS IF
EXPOSURE 15 IN EXCESS OF THE LIMITS AS SET FORTH ABOVE. TO INSURE AGAINST POTENTIALLY DANGEROUS EXPOSURE TO HIGH SOUND PRESSURE LEVELS. IT (5 RECOMMENDED THAT ALL
2 HAS BEEN об едр АМО contine TO РЕНДЕ ADEQUATE SIGNAL мост
; RSE OF INTEBREAL/EXTERNAL BUSSES MAY CHESTE: CLIPPING (Si WAVES)
LOUDS
2
GAIN:
GAS
ZAT:
NTRS
UM
POSITIONE:
РОМЕ САМ BE OPTAINED WITH VERY ІҢ EN
FLEFTONPAIÑ
apower supply é ў ca cleaned damp r
this product
All safety and operating instructions should be retained
for future reference
Opey all cautions in the operating instructions and on the
back of the unit
. All operating instructions should be followed
This product should not be used near water, 16. a
bathtub, sink, swimming pool, wet Базетегі, etc
. This product should be located so that its position does
not interfere with its proper ventilation. It snould not be
placed "ас against a wall or placed in a built-in enclosure
that wil! impede the flow of cooling air
This product should not be placed near a source of heal
Such as a stove radiator or another heat producing
amplifier
unit adjacent to the power supply cord
. Never break off the ground pin on thepower supply cord
For more information on grounding write for our tree
booklet "Snock Hazard and Grounding.’
Power supply cards snould always be nandled carefully
Never walk or place equipment on power supply cords
Periodically check cords for cuts or signs of stress
especially at the plug and the point where the cord exits
the ипи
The power supply cord should be unoluggec when the
unit is to be unused for long periods of time.
I this productisto be mountedin an equipment rack, rear
support should be provided
covering used on some units can be cleaned witn a damp
rag. or an ammonia based household cleaner 11
necessary
. Care should be taken so Ihat objects do not fall and
liquids are not spilled into the unit through the ventilation
noles or any other openings
This unit should be checked by a qualified service
technician if
A. The power supply cord or plug has been damaged.
B. Anything has fallen or been spilled into tne unit
C. The urit does not operate correctly
D. The unit has been dropped or the enctosure damaged
The user should not to attempt to service this equipment
AM service worx should be dore by a qualified service
technician
